915/1590nm MM WDM Filter
DESCRIPTION
Haphit provides fiber based passive components. The WDM Filter is made by thin film coating and micro-optics package technology with Multimode (MM) fiber in and MM fiber out. It features Flat and Wide Spectrum and high Wavelength Isolation. The WDM Filter will combine or split the two signal light with different wavelength. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FMFM 915nm 1590nm 910nm 1600nm 1610nm 1580nm 920nm 930nm MM Multimode WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type 4-port X Type FMFM 915nm 1590nm 910nm 1600nm 1610nm 1580nm 920nm 930nm MM Multimode WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type 4-port X Type FMFM 915nm 1590nm 910nm 1600nm 1610nm 1580nm 920nm 930nm MM Multimode WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type 4-port X Type 9159X 5991X
TYPICAL SPECIFICATIONS
Pass Channel Wavelength
1570-1610nm
Reflective Channel Wavelength
915+/-15nm
Configuration
Y Type (3-port), X Type (4-port, 2x2 WDM)
Pass/Reflective Channel Insertion Loss
<=1.2dB/<=1.0dB
Pass/Reflective Channel Isolation
>=30dB/>=15dB
Return Loss
>=30dB
Fiber Type
50/125um or 62.5/126um MM Fiber
50/125um OM3 MM Fiber
105/125um MM Fiber
Max. Optical Power (CW)
300mW
Operating Temperature
0~50degreeC

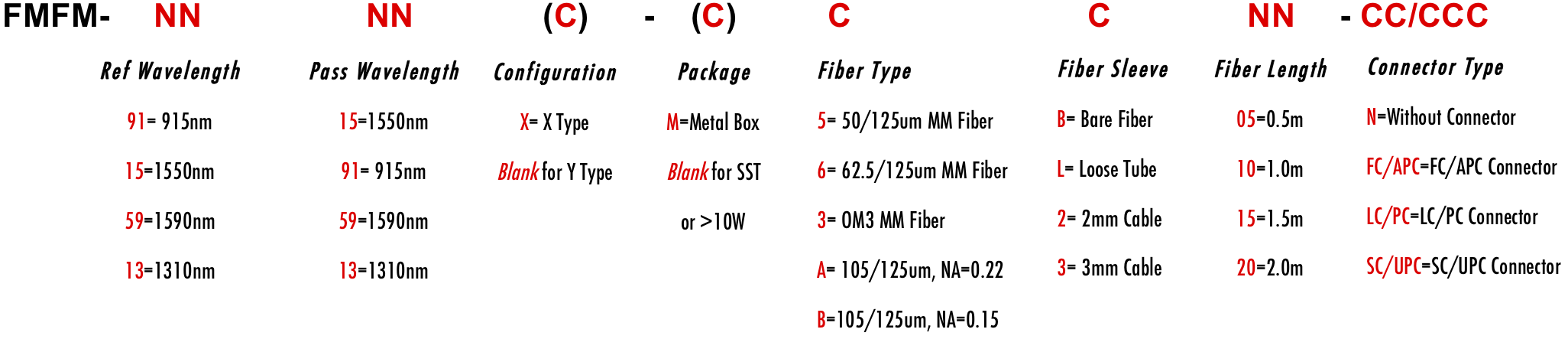

ORDERING INFORMATION/PART NUMBER(PN)
