810/1550nm MM WDM Filter for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The WDM Filter is made by thin film coating and micro-optics package technology with Multimode (MM) fiber in and MM fiber out. It features Flat and Wide Spectrum and high Wavelength Isolation. The WDM Filter will combine or split the two signal light with different wavelength. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FMFM 810nm 1550nm 800nm 1530nm 1560nm 1540nm 820nm 808nm MM Multimode WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FMFM 810nm 1550nm 800nm 1530nm 1560nm 1540nm 820nm 808nm MM Multimode WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FMFM 810nm 1550nm 800nm 1530nm 1560nm 1540nm 820nm 808nm MM Multimode WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 8115X 1581X
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1530-1570nm
Reflective Channel Wavelength 810+/-10nm
Configuration Y Type (3-port), X Type (4-port, 2x2 WDM)
Pass/Reflective Channel Insertion Loss <=1.2dB/<=1.0dB
Pass/Reflective Channel Isolation >=25dB/>=12dB
Return Loss >=30dB
Fiber Type 50/125um or 62.5/126um MM Fiber
50/125um OM3 MM Fiber
105/125um MM Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W, 25W, 30W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

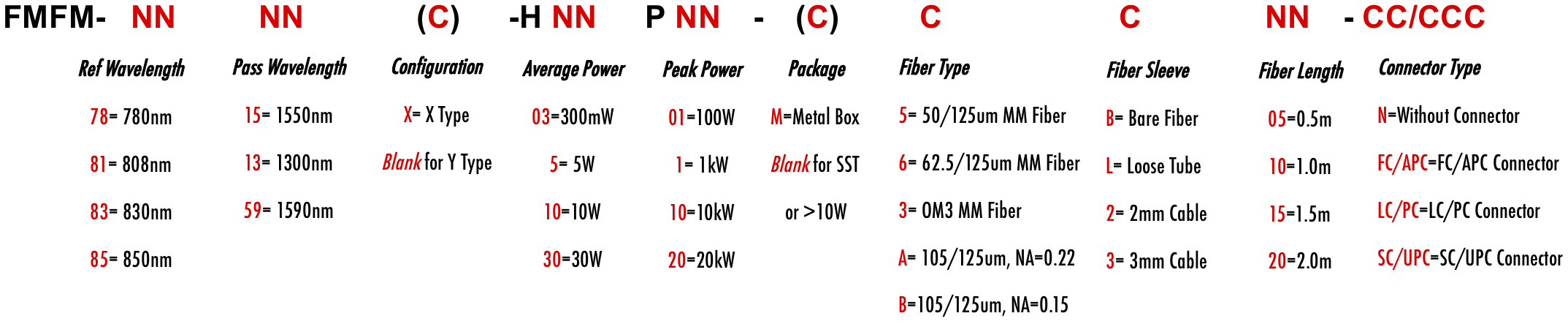

ORDERING INFORMATION/PART NUMBER(PN)
