1020/1590nm WDM Filter for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The WDM Filter is made by thin film coating and micro-optics package technology with fiber in and fiber out. It features Flat and Wide Spectrum and high Wavelength Isolation. The WDM Filter will combine or split the two signal light with different wavelength. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FFWM 1020nm 1590nm 1010nm 1600nm 1610nm 1580nm 1030nm 1025nm WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 LMA 8/125um HI1060 6/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FFWM 1020nm 1590nm 1010nm 1600nm 1610nm 1580nm 1030nm 1025nm WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 LMA 8/125um HI1060 6/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FFWM 1020nm 1590nm 1010nm 1600nm 1610nm 1580nm 1030nm 1025nm WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 LMA 8/125um HI1060 6/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 0259 5902 SY SXY SHY
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1570-1610nm
Reflective Channel Wavelength 1020+/-10nm
Configuration Y Type (3-port), X Type (4-port, 2x2 WDM)
Pass/Reflective Channel Insertion Loss <=1dB/<=0.8dB
Pass/Reflective Channel Isolation >=25dB/>=12dB
Return Loss >=45dB
PDL <=0.15dB
Fiber Type (Signal) SMF-28 Fiber or 10/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
Fiber Type (Common and Pump) Same Fiber or HI1060 Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

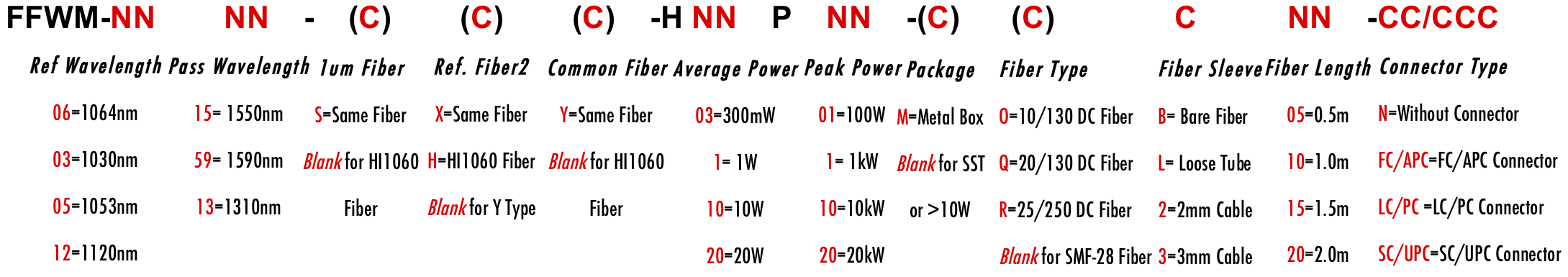

ORDERING INFORMATION/PART NUMBER(PN)
