1120/1550nm High Power WDM Filter
DESCRIPTION
Haphit provides fiber based passive components. The WDM Filter is made by thin film coating and micro-optics package technology with fiber in and fiber out. It features Flat and Wide Spectrum and high Wavelength Isolation. The WDM Filter will combine or split the two signal light with different wavelength. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FFWM 1120nm 1550nm 1110nm 1530nm 1560nm 1540nm 1130nm 1115nm 1125nm WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 LMA 8/125um HI1060 6/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave FFWM 1120nm 1550nm 1110nm 1530nm 1560nm 1540nm 1130nm 1115nm 1125nm WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 LMA 8/125um HI1060 6/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave FFWM 1120nm 1550nm 1110nm 1530nm 1560nm 1540nm 1130nm 1115nm 1125nm WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 LMA 8/125um HI1060 6/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave 1215 1512 SY SXY SHY
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1530-1580nm
Reflective Channel Wavelength 1120+/-10nm
Configuration Y Type (3-port), X Type (4-port, 2x2 WDM)
Pass/Reflective Channel Insertion Loss <=1dB/<=0.8dB
Pass/Reflective Channel Isolation >=25dB/>=12dB
Return Loss >=45dB
PDL <=0.15dB
Fiber Type (Signal) SMF-28 Fiber or 10/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
Fiber Type (Common and Pump) Same Fiber or HI1060 Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W
Operating Temperature 0~50degreeC

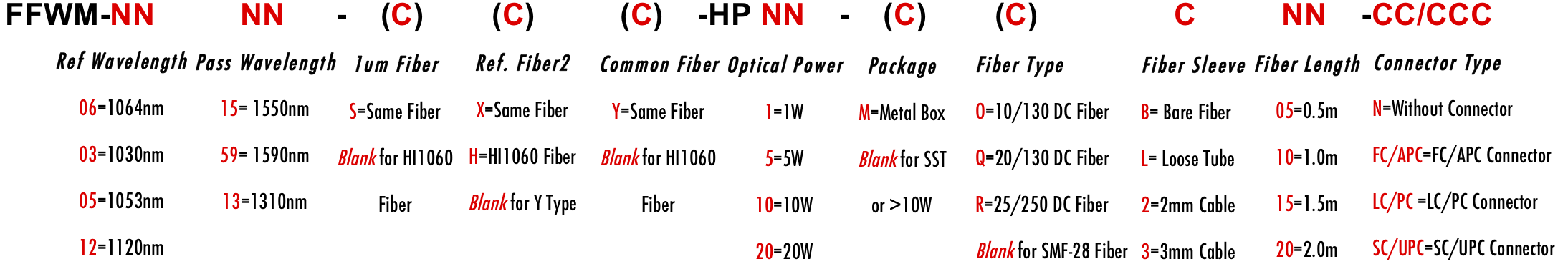

ORDERING INFORMATION/PART NUMBER(PN)
