1120/1590nm WDM Filter
DESCRIPTION
Haphit provides fiber based passive components. The WDM Filter is made by thin film coating and micro-optics package technology with fiber in and fiber out. It features Flat and Wide Spectrum and high Wavelength Isolation. The WDM Filter will combine or split the two signal light with different wavelength. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FFWM 1120nm 1590nm 1110nm 1600nm 1610nm 1580nm 1130nm 1115nm 1125nm WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 LMA 8/125um HI1060 6/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type FFWM 1120nm 1590nm 1110nm 1600nm 1610nm 1580nm 1130nm 1115nm 1125nm WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 LMA 8/125um HI1060 6/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type FFWM 1120nm 1590nm 1110nm 1600nm 1610nm 1580nm 1130nm 1115nm 1125nm WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 LMA 8/125um HI1060 6/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type 1259 5912 SY SXY SHY
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1570-1610nm
Reflective Channel Wavelength 1120+/-10nm
Configuration Y Type (3-port), X Type (4-port, 2x2 WDM)
Pass/Reflective Channel Insertion Loss <=1dB/<=0.8dB
Pass/Reflective Channel Isolation >=25dB/>=12dB
Return Loss >=45dB
PDL <=0.15dB
Fiber Type (Signal) SMF-28 Fiber or 10/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
Fiber Type (Common and Pump) Same Fiber or HI1060 Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

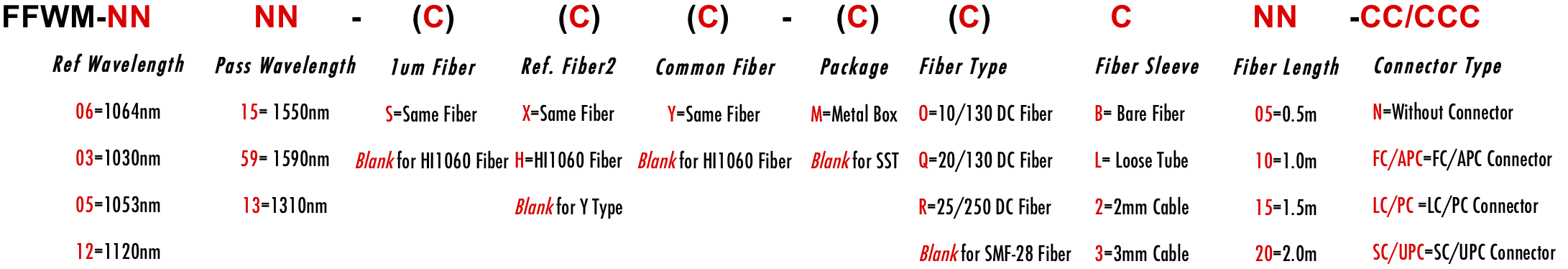

ORDERING INFORMATION/PART NUMBER(PN)
