1120/1590nm High Power PM WDM Filter
DESCRIPTION
Haphit provides fiber based passive components. The WDM Filter is made by thin film coating and micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The WDM Filter will combine or split the two signal light with different wavelength. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPWM 1120nm 1590nm 1110nm 1600nm 1610nm 1580nm 1130nm 1115nm 1125nm PM WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter PM1550 LMA PM980 6/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W Watt Watts HP CW Continuous Wave FPWM 1120nm 1590nm 1110nm 1600nm 1610nm 1580nm 1130nm 1115nm 1125nm PM WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter PM1550 LMA PM980 6/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W Watt Watts HP CW Continuous Wave FPWM 1120nm 1590nm 1110nm 1600nm 1610nm 1580nm 1130nm 1115nm 1125nm PM WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter PM1550 LMA PM980 6/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W Watt Watts HP CW Continuous Wave 1259 5912 YS YH PS PH SS SH YYS YYH PYS PYH SYS SYH YXS YXH YPS YPH YSS YSH PXS PXH PPS PPH PSS PSH SXS SXH SPS SPH SSS SSH YXYS YXYH YPYS YPYH YSYS YSYH PXYS PXYH PPYS PPYH PSYS PSYH SXYS SXYH SPYS SPYH SSYS SSYH
TYPICAL SPECIFICATIONS
Pass Channel Wavelength
1570-1610nm
Reflective Channel Wavelength
1120+/-10nm
Configuration
Y Type (3-port), X Type (4-port, 2x2 WDM)
Pass/Reflective Channel Insertion Loss
<=1dB (Standard), <=1.2dB (High ER Type)/<=0.8dB
Pass/Reflective Channel Isolation
>=25dB/>=12dB
Return Loss
>=45dB
Extinction Ratio
>=18dB (Standard), >=20dB (High ER Type)
Fiber Type (Signal)
PM1550 Fiber or 10/130um PMDC Fiber
15/130um PMDC Fiber or 25/250um PMDC Fiber
Fiber Type (Common and 1um port)
Same Fiber or PM980 Fiber
Max. Optical Power (CW)
1W, 2W, 3W, 5W, 10W, 15W, 20W
Operating Temperature
0~50degreeC

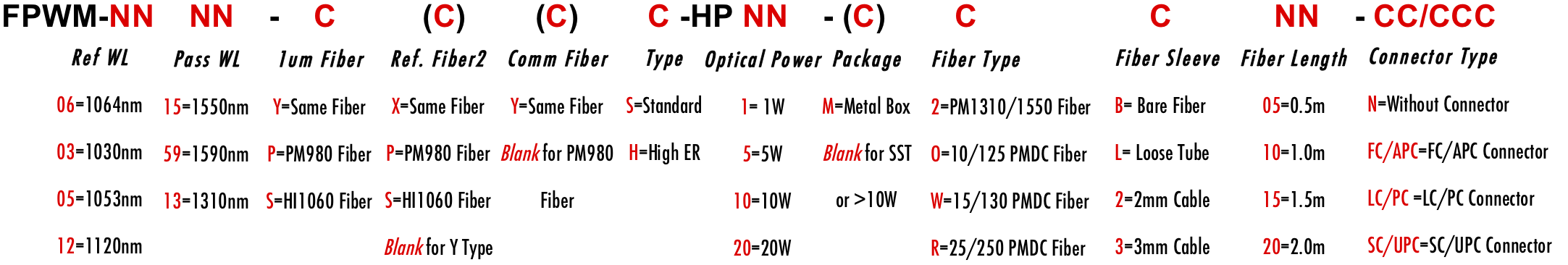

ORDERING INFORMATION/PART NUMBER(PN)
