780/2000nm High Power PM WDM Filter
DESCRIPTION
Haphit provides fiber based passive components. The WDM Filter is made by thin film coating and micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The WDM Filter will combine or split the two signal light with different wavelength. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPWM 780nm 790nm 770nm 785nm 775nm 2000nm 1980nm 1990nm 1970nm 2010nm 2020nm 2030nm PM WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter PM1550 PM850 PM780HP LMA PM1950 PM2000 8/125um 10/125um 10/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W Watt Watts HP CW Continuous Wave FPWM 780nm 790nm 770nm 785nm 775nm 2000nm 1980nm 1990nm 1970nm 2010nm 2020nm 2030nm PM WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter PM1550 PM850 PM780HP LMA PM1950 PM2000 8/125um 10/125um 10/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W Watt Watts HP CW Continuous Wave FPWM 780nm 790nm 770nm 785nm 775nm 2000nm 1980nm 1990nm 1970nm 2010nm 2020nm 2030nm PM WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter PM1550 PM850 PM780HP LMA PM1950 PM2000 8/125um 10/125um 10/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W Watt Watts HP CW Continuous Wave 7820 2078 YH SH 7H PH HH YXH YPH YSH Y7H YHH SXH SPH SSH S7H SHH PXH PPH PSH P7H PHH 7XH 7PH 7SH 77H 7HH HXH HPH HSH H7H HHH
TYPICAL SPECIFICATIONS
Pass Channel Wavelength
2000+/-30nm
Reflective Channel Wavelength
780+/-10nm
Configuration
Y Type (3-port), X Type (4-port, 2x2 WDM)
Pass/Reflective Channel Insertion Loss
<=1.6dB (Standard), <=1.8dB (High ER Type)/<=1.5dB
Pass/Reflective Channel Isolation
>=25dB/>=12dB
Return Loss
>=45dB
Extinction Ratio
>=18dB (Standard), >=20dB (High ER Type)
Fiber Type (Common and Signal)
PM1550 Fiber or PM1950 Fiber
10/130um PMDC Fiber or 25/250um PMDC Fiber
Fiber Type (Pump)
Same Fiber or Corr. SM Fiber
PM850 Fiber, PM780-HP Fiber or HI780 Fiber
Max. Optical Power (CW)
1W, 2W, 3W, 5W, 10W
Operating Temperature
0~50degreeC

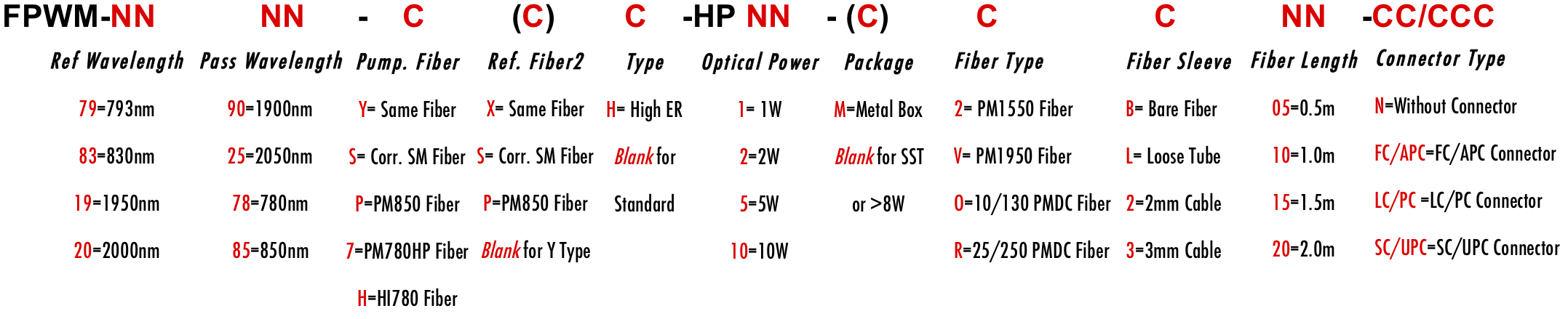

ORDERING INFORMATION/PART NUMBER(PN)
