1550/1900nm High Power WDM Filter
DESCRIPTION
Haphit provides fiber based passive components. The WDM Filter is made by thin film coating and micro-optics package technology with fiber in and fiber out. It features Flat and Wide Spectrum and high Wavelength Isolation. The WDM Filter will combine or split the two signal light with different wavelength. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FFWM 1550nm 1530nm 1540nm 1560nm 1570nm 1555nm 1545nm 1900nm 1890nm 1910nm 1905nm WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W Watt Watts HP CW Continuous Wave FFWM 1550nm 1530nm 1540nm 1560nm 1570nm 1555nm 1545nm 1900nm 1890nm 1910nm 1905nm WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W Watt Watts HP CW Continuous Wave FFWM 1550nm 1530nm 1540nm 1560nm 1570nm 1555nm 1545nm 1900nm 1890nm 1910nm 1905nm WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W Watt Watts HP CW Continuous Wave 1590X 9015X
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1900+/-10nm
Reflective Channel Wavelength 1550+/-20nm
Configuration Y Type (3-port), X Type (4-port, 2x2 WDM)
Pass/Reflective Channel Insertion Loss <=1.4dB/<=1.2dB
Pass/Reflective Channel Isolation >=25dB/>=12dB
Return Loss >=45dB
PDL <=0.2dB
Fiber Type SMF-28 Fiber or SM1950 Fiber
10/130um DC Fiber or 25/250um DC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W
Operating Temperature 0~50degreeC

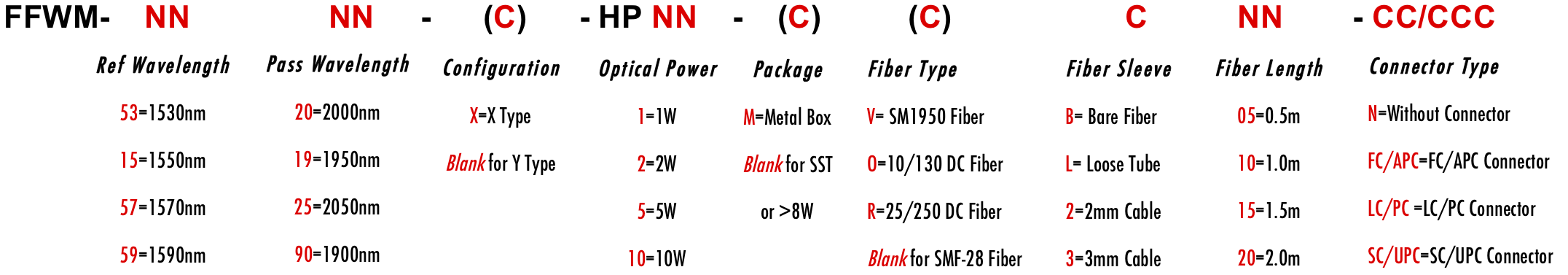

ORDERING INFORMATION/PART NUMBER(PN)
