1550/2000nm WDM Filter for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The WDM Filter is made by thin film coating and micro-optics package technology with fiber in and fiber out. It features Flat and Wide Spectrum and high Wavelength Isolation. The WDM Filter will combine or split the two signal light with different wavelength. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FFWM 1550nm 1530nm 1540nm 1560nm 1570nm 1555nm 1545nm 2000nm 1980nm 1990nm 1970nm 2010nm 2020nm 2030nm WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FFWM 1550nm 1530nm 1540nm 1560nm 1570nm 1555nm 1545nm 2000nm 1980nm 1990nm 1970nm 2010nm 2020nm 2030nm WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FFWM 1550nm 1530nm 1540nm 1560nm 1570nm 1555nm 1545nm 2000nm 1980nm 1990nm 1970nm 2010nm 2020nm 2030nm WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 1520X 2015X
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 2000+/-30nm
Reflective Channel Wavelength 1550+/-20nm
Configuration Y Type (3-port), X Type (4-port, 2x2 WDM)
Pass/Reflective Channel Insertion Loss <=1.4dB/<=1.2dB
Pass/Reflective Channel Isolation >=25dB/>=12dB
Return Loss >=45dB
PDL <=0.2dB
Fiber Type SMF-28 Fiber or SM1950 Fiber
10/130um DC Fiber or 25/250um DC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

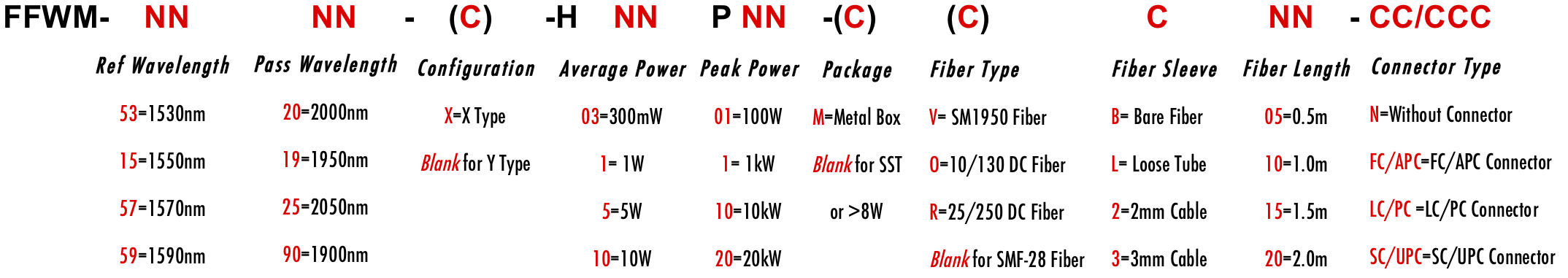

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
