980/1070nm PM WDM Filter
DESCRIPTION
Haphit provides fiber based passive components. The WDM Filter is made by thin film coating and micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The WDM Filter will combine or split the two signal light with different wavelength. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPWM 980nm 975nm 970nm 976nm 1070nm 1060nm 1080nm 1075nm 1072nm PM WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter PM980 PM1060L PM1060LFA LMA 6/125um 10/125um 10/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda FPWM 980nm 975nm 970nm 976nm 1070nm 1060nm 1080nm 1075nm 1072nm PM WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter PM980 PM1060L PM1060LFA LMA 6/125um 10/125um 10/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda FPWM 980nm 975nm 970nm 976nm 1070nm 1060nm 1080nm 1075nm 1072nm PM WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter PM980 PM1060L PM1060LFA LMA 6/125um 10/125um 10/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda 9807 0798 PH PS SH SS PPH PXH PPS PXS SPH SXH SPS SXS
TYPICAL SPECIFICATIONS
Pass Channel Wavelength
1070+/-10nm
Reflective Channel Wavelength
980+/-10nm
Configuration
Y Type (3-port), X Type (4-port, 2x2 WDM)
Pass/Reflective Channel Insertion Loss
<=1dB (Standard), <=1.2dB (High ER Type)/<=0.8dB
Pass/Reflective Channel Isolation
>=25dB/>=12dB
Return Loss
>=45dB
Extinction Ratio
>=20dB (Standard), >=22dB (High ER Type)
Fiber Type
PM980 Fiber, PM1060L Fiber or PM1060L-FA Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Optical Power (CW)
300mW
Operating Temperature
0~50degreeC

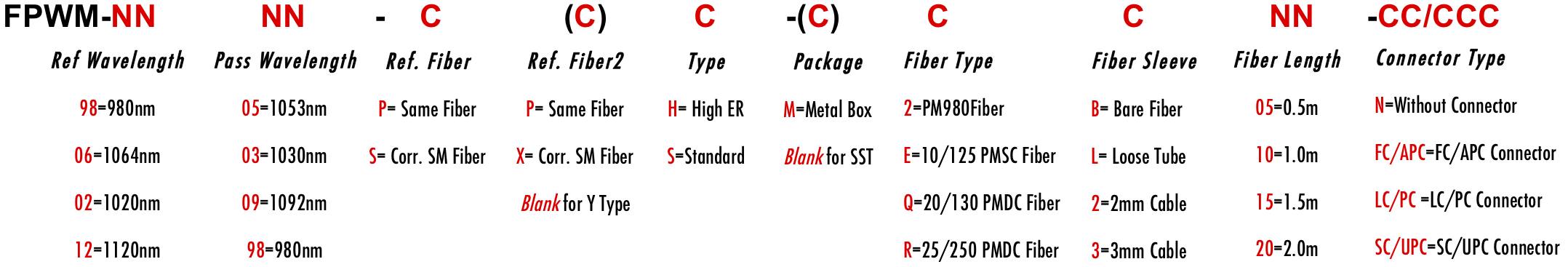

ORDERING INFORMATION/PART NUMBER(PN)
Standard specifications and
design parameters
Serial
Reference
Part Number (PN)*:
