830/1030nm PM WDM Filter
DESCRIPTION
Haphit provides fiber based passive components. The WDM Filter is made by thin film coating and micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The WDM Filter will combine or split the two signal light with different wavelength. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPWM 830nm 820nm 840nm 835nm 1030nm 1020nm 1040nm 1035nm 1036nm PM WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter PM980 PM850 PM780HP PM1060L PM1060LFA LMA 6/125um 10/125um 10/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda FPWM 830nm 820nm 840nm 835nm 1030nm 1020nm 1040nm 1035nm 1036nm PM WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter PM980 PM850 PM780HP PM1060L PM1060LFA LMA 6/125um 10/125um 10/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda FPWM 830nm 820nm 840nm 835nm 1030nm 1020nm 1040nm 1035nm 1036nm PM WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter PM980 PM850 PM780HP PM1060L PM1060LFA LMA 6/125um 10/125um 10/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda 8303 0383 PH PS SH SS PPH PSH PPS PSS SPH SSH SPS SSS
TYPICAL SPECIFICATIONS
Pass Channel Wavelength
1030+/-10nm
Reflective Channel Wavelength
830+/-10nm
Configuration
Y Type (3-port), X Type (4-port, 2x2 WDM)
Pass/Reflective Channel Insertion Loss
<=1.6dB (Standard), <=1.8dB (High ER Type)/<=1.5dB
Pass/Reflective Channel Isolation
>=25dB/>=12dB
Return Loss
>=45dB
Extinction Ratio
>=20dB (Standard), >=22dB (High ER Type)
Fiber Type
PM850 Fiber, PM780-HP Fiber or PM980 Fiber
PM1060L Fiber or PM1060L-FA Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/125um PMDC Fiber or 25/250um PMDC Fiber
Max. Optical Power (CW)
300mW
Operating Temperature
0~50degreeC

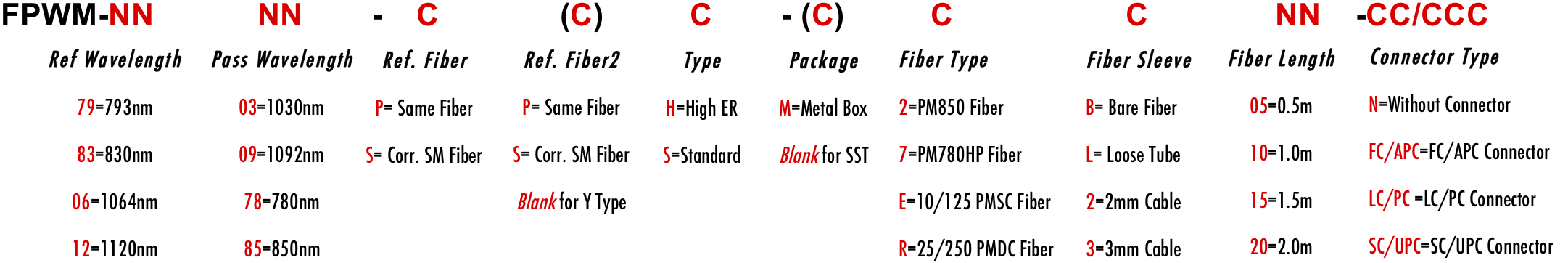

ORDERING INFORMATION/PART NUMBER(PN)
