1056/1030nm WDM Filter
DESCRIPTION
Haphit provides fiber based passive components. The WDM Filter is made by thin film coating and micro-optics package technology with fiber in and fiber out. It features Flat and Wide Spectrum and high Wavelength Isolation. The WDM Filter will combine or split the two signal light with different wavelength. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FFWM 1056nm 1054nm 1058nm 1055nm 1030nm 1020nm 1040nm 1036nm 1035nm 1026nm WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter HI1060 LMA 6/125um 10/125um 10/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type FFWM 1056nm 1054nm 1058nm 1055nm 1030nm 1020nm 1040nm 1036nm 1035nm 1026nm WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter HI1060 LMA 6/125um 10/125um 10/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type FFWM 1056nm 1054nm 1058nm 1055nm 1030nm 1020nm 1040nm 1036nm 1035nm 1026nm WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter HI1060 LMA 6/125um 10/125um 10/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type 0356X
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1056+/-2nm
Reflective Channel Wavelength 1030+/-10nm
Configuration Y Type (3-port), X Type (4-port, 2x2 WDM)
Pass/Reflective Channel Insertion Loss <=1dB/<=0.8dB
Pass/Reflective Channel Isolation >=25dB/>=12dB
Return Loss >=45dB
PDL <=0.2dB
Fiber Type HI1060 Fiber or 10/125um SC Fiber
10/125um DC Fiber or 15/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

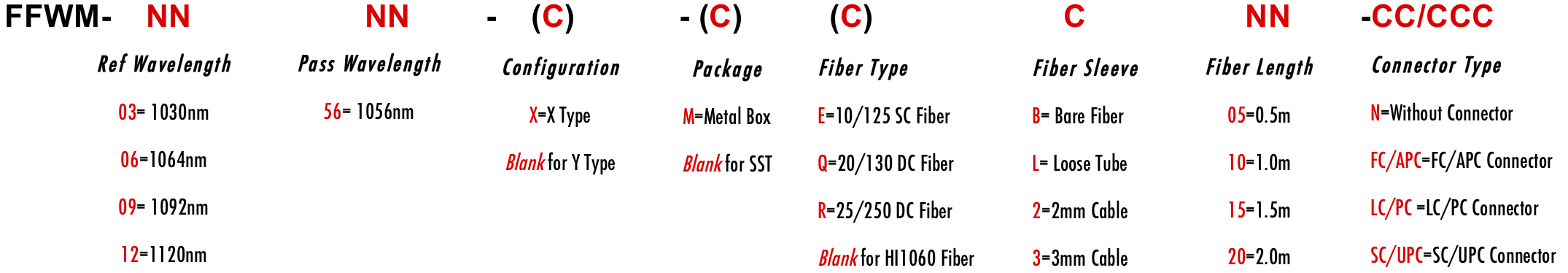

ORDERING INFORMATION/PART NUMBER(PN)
