1080/1092nm PM WDM Filter for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The WDM Filter is made by thin film coating and micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The WDM Filter will combine or split the two signal light with different wavelength. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPWM 1080nm 1078nm 1082nm 1079nm 1081nm 1092nm 1090nm 1087nm 1097nm 1095nm PM WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter PM980 PM1060L PM1060LFA LMA 6/125um 10/125um 10/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPWM 1080nm 1078nm 1082nm 1079nm 1081nm 1092nm 1090nm 1087nm 1097nm 1095nm PM WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter PM980 PM1060L PM1060LFA LMA 6/125um 10/125um 10/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPWM 1080nm 1078nm 1082nm 1079nm 1081nm 1092nm 1090nm 1087nm 1097nm 1095nm PM WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter PM980 PM1060L PM1060LFA LMA 6/125um 10/125um 10/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 0908 PH PS SH SS PPH PXH PPS PXS SPH SXH SPS SXS
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1080+/-2nm
Reflective Channel Wavelength 1092+/-5nm
Configuration Y Type (3-port), X Type (4-port, 2x2 WDM)
Pass/Reflective Channel Insertion Loss <=1dB (Standard), <=1.2dB (High ER Type)/<=0.8dB
Pass/Reflective Channel Isolation >=25dB/>=12dB
Return Loss >=45dB
Extinction Ratio >=18dB (Standard), >=20dB (High ER Type)
Fiber Type PM980 Fiber, PM1060L Fiber or PM1060L-FA Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/125um PMDC Fiber or 25/250um PMDC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

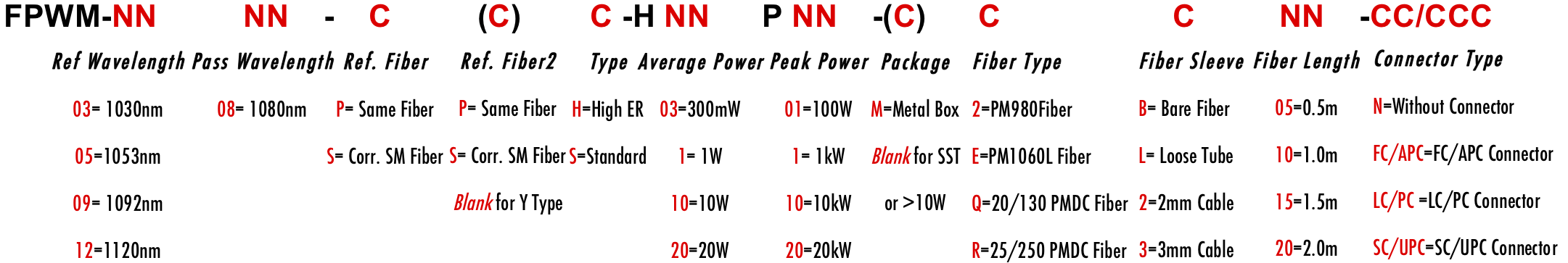

ORDERING INFORMATION/PART NUMBER(PN)
