1120/1020nm High Power PM WDM Filter
DESCRIPTION
Haphit provides fiber based passive components. The WDM Filter is made by thin film coating and micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The WDM Filter will combine or split the two signal light with different wavelength. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPWM 1120nm 1115nm 1125nm 1118nm 1123nm 1020nm 1010nm 1030nm 1025nm 1015nm PM WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter PM980 PM1060L PM1060LFA LMA 6/125um 10/125um 10/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave FPWM 1120nm 1115nm 1125nm 1118nm 1123nm 1020nm 1010nm 1030nm 1025nm 1015nm PM WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter PM980 PM1060L PM1060LFA LMA 6/125um 10/125um 10/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave FPWM 1120nm 1115nm 1125nm 1118nm 1123nm 1020nm 1010nm 1030nm 1025nm 1015nm PM WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter PM980 PM1060L PM1060LFA LMA 6/125um 10/125um 10/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave 0212 PH PS SH SS PPH PXH PPS PXS SPH SXH SPS SXS
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1120+/-5nm
Reflective Channel Wavelength 1020+/-10nm
Configuration Y Type (3-port), X Type (4-port, 2x2 WDM)
Pass/Reflective Channel Insertion Loss <=1.2dB (Standard), <=1.4dB (High ER Type)/<=1.0dB
Pass/Reflective Channel Isolation >=25dB/>=12dB
Return Loss >=45dB
Extinction Ratio >=18dB (Standard), >=20dB (High ER Type)
Fiber Type PM980 Fiber, PM1060L Fiber or PM1060L-FA Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/125um PMDC Fiber or 25/250um PMDC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W
Operating Temperature 0~50degreeC

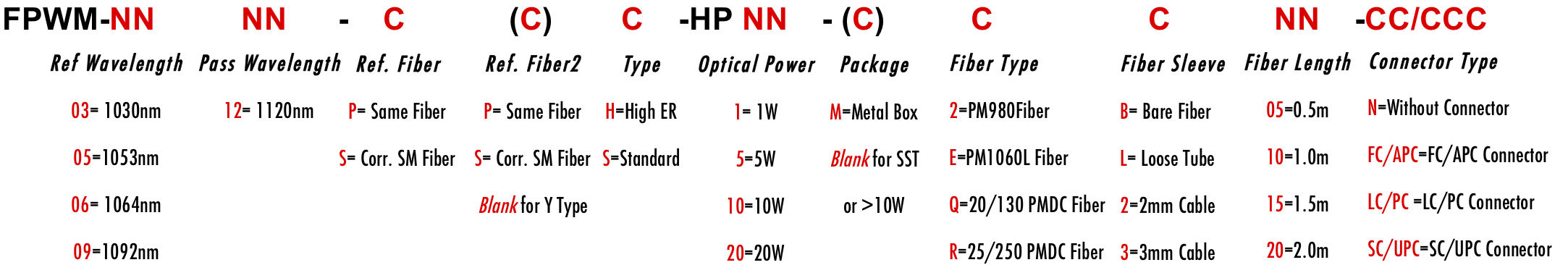

ORDERING INFORMATION/PART NUMBER(PN)
