793/1550nm High Power Fused WDM

DESCRIPTION
Haphit provides fiber based passive components. The Fused WDM is made by Fused Biconical Taper (FBT) technology with fiber in and fiber out. It features low excess loss and high Wavelength Isolation. The Fused WDM will combine or split the two signal light with different wavelength. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCLD 793nm 790nm 780nm 800nm 795nm 1550nm 1530nm 1570nm 1540nm 1560nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 8/125um 9/125um HI1060 HI1060Flex Flex 6/125 1x2 2x2 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W Watt Watts HP CW Continuous Wave FCLD 793nm 790nm 780nm 800nm 795nm 1550nm 1530nm 1570nm 1540nm 1560nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 8/125um 9/125um HI1060 HI1060Flex Flex 6/125 1x2 2x2 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W Watt Watts HP CW Continuous Wave FCLD 793nm 790nm 780nm 800nm 795nm 1550nm 1530nm 1570nm 1540nm 1560nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 8/125um 9/125um HI1060 HI1060Flex Flex 6/125 1x2 2x2 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W Watt Watts HP CW Continuous Wave 7915 79151
TYPICAL SPECIFICATIONS
Wavelength Range 1 793+/-10nm
Wavelength Range 2 1550+/-20nm
Configuration 1x2 or 2x2
Insertion Loss <=1.0dB
Isolation >=13dB
Directivity >=50dB
Fiber Type HI780C Fiber or SMF-28 Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W, 25W, 30W
Operating Temperature 0~50degreeC

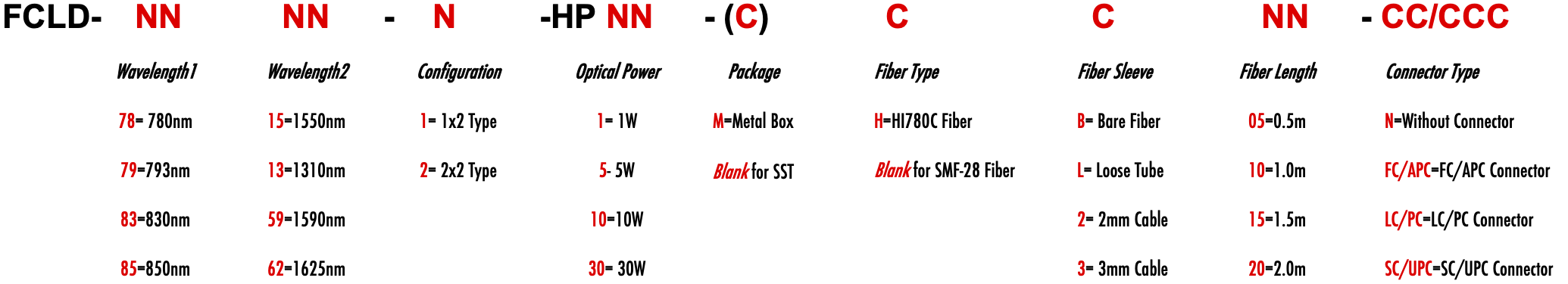

ORDERING INFORMATION/PART NUMBER(PN)
