780/1550nm Fused WDM
DESCRIPTION
Haphit provides fiber based passive components. The Fused WDM is made by Fused Biconical Taper (FBT) technology with fiber in and fiber out. It features low excess loss and high Wavelength Isolation. The Fused WDM will combine or split the two signal light with different wavelength. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCLD 780nm 770nm 790nm 785nm 1550nm 1530nm 1570nm 1540nm 1560nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 8/125um 9/125um HI1060 HI1060Flex Flex 6/125 1x2 2x2 3-port Y Type 4-port X Type FCLD 780nm 770nm 790nm 785nm 1550nm 1530nm 1570nm 1540nm 1560nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 8/125um 9/125um HI1060 HI1060Flex Flex 6/125 1x2 2x2 3-port Y Type 4-port X Type FCLD 780nm 770nm 790nm 785nm 1550nm 1530nm 1570nm 1540nm 1560nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 8/125um 9/125um HI1060 HI1060Flex Flex 6/125 1x2 2x2 3-port Y Type 4-port X Type 7815 78151
TYPICAL SPECIFICATIONS
Wavelength Range 1
780+/-10nm
Wavelength Range 2
1550+/-20nm
Configuration
1x2 or 2x2
Insertion Loss
<=1.0dB
Isolation
>=13dB
Directivity
>=50dB
Fiber Type
HI780C Fiber or SMF-28 Fiber
Max. Optical Power (CW)
300mW
Operating Temperature
0~50degreeC

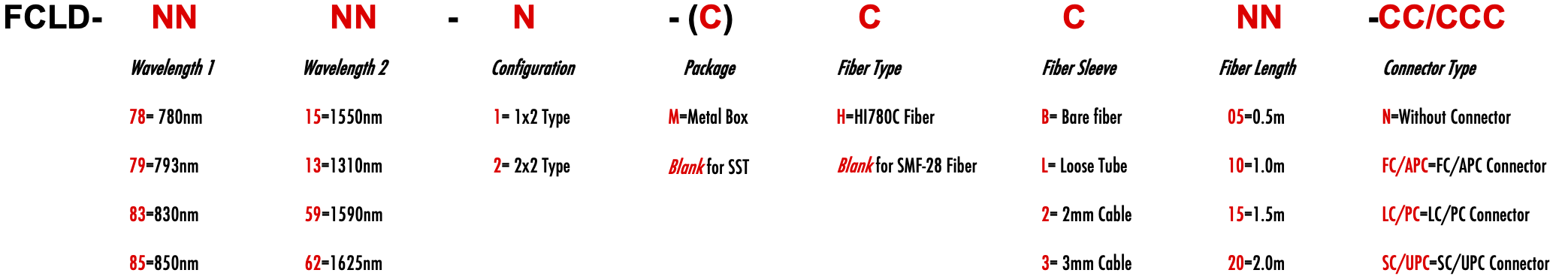

ORDERING INFORMATION/PART NUMBER(PN)
Standard specifications and
design parameters
Serial
Reference
Part Number (PN)*:
The change on PN will save a new product.
Product Description:
Comment/Other Information:
