1590/1700nm Fused WDM for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The Fused WDM is made by Fused Biconical Taper (FBT) technology with fiber in and fiber out. It features low excess loss and high Wavelength Isolation. The Fused WDM will combine or split the two signal light with different wavelength. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCLD 1590nm 1580nm 1600nm 1595nm 1585nm 1700nm 1690nm 1710nm 1705nm 1695nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 8/125um 9/125um 6/125 1x2 2x2 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FCLD 1590nm 1580nm 1600nm 1595nm 1585nm 1700nm 1690nm 1710nm 1705nm 1695nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 8/125um 9/125um 6/125 1x2 2x2 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FCLD 1590nm 1580nm 1600nm 1595nm 1585nm 1700nm 1690nm 1710nm 1705nm 1695nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 8/125um 9/125um 6/125 1x2 2x2 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 5970 59701
TYPICAL SPECIFICATIONS
Wavelength Range 1 1590+/-10nm
Wavelength Range 2 1700+/-10nm
Configuration 1x2 or 2x2
Insertion Loss <=1.0dB
Isolation >=13dB
Directivity >=50dB
Fiber Type SMF-28 Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W, 25W, 30W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

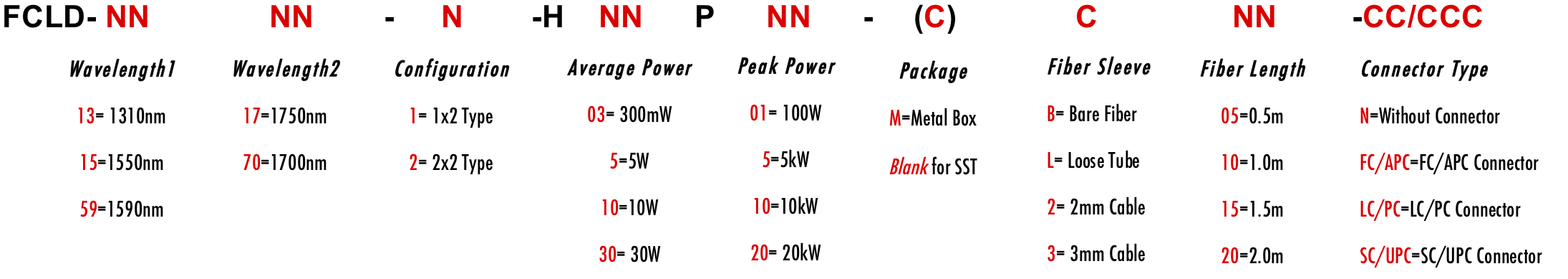

ORDERING INFORMATION/PART NUMBER(PN)
