1310/2070nm Fused PM WDM for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Fused PM WDM is made by Fused Biconical Taper (FBT) technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features low excess loss, high Wavelength Isolation and high Extinction Ratio. The Fused PM WDM will combine or split the two signal light with different wavelength. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPCD 1310nm 1290nm 1330nm 1320nm 1300nm 1304nm 2050nm 2055nm 2060nm 2065nm 2070nm 2075nm 2080nm 2085nm 2090nm fused fiber wdm wavelength division multiplexer and demultiplexer mux and demux combiner and splitter fiber optic fused biconical coupler fusionierte faser wdm wellenlängenteilung multiplexer und demultiplexer mux und demux kombinierer und splitter faseroptischer geschmolzener bikonischer koppler fibre fusionnée wdm multiplexeur et démultiplexeur multiplexeur et démultiplexeur multiplexeur et séparateur fibre optique coupleur biconique fusionné fibra fusa wdm multiplexer e demultiplexer a divisione di lunghezza d'onda mux e demux combinatore e splitter accoppiatore biconico fuso in fibra ottica fibra fusionada wdm división de longitud de onda multiplexor y demultiplexor mux y demux combinador y divisor fibra óptica acoplador bicónico fusionado fibra fundida wdm multiplexador e demultiplexador por divisão de comprimento de onda mux e demux combinador e divisor fibra óptica acoplador bicônico fundido fibra fibra optica mixta biconis sulatettu kuitu wdm aallonpituusjakoinen multiplekseri ja demultiplekseri mux- ja demux-yhdistäjä ja jakaja kuituoptinen sulatettu kaksoiskartioliitin PM1550 PM1950 PM2000 8/125um 9/125um 10/125um 10/130um 1x2 2x2 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda tie maintien de la polarisation fibre panda ou cravate avec taux d'extinction polarisationserhaltende Panda- oder Bindefaser mit Extinktionsverhältnis polarización manteniendo panda o fibra de amarre con relación de extinción polarização mantendo a fibra panda ou tie com taxa de extinção polarizzazione mantenendo panda o legare fibra con rapporto di estinzione olarisaatiota ylläpitävä panda- tai sidekuitu ekstinktiosuhteella for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPCD 1310nm 1290nm 1330nm 1320nm 1300nm 1304nm 2050nm 2055nm 2060nm 2065nm 2070nm 2075nm 2080nm 2085nm 2090nm fused fiber wdm wavelength division multiplexer and demultiplexer mux and demux combiner and splitter fiber optic fused biconical coupler fusionierte faser wdm wellenlängenteilung multiplexer und demultiplexer mux und demux kombinierer und splitter faseroptischer geschmolzener bikonischer koppler fibre fusionnée wdm multiplexeur et démultiplexeur multiplexeur et démultiplexeur multiplexeur et séparateur fibre optique coupleur biconique fusionné fibra fusa wdm multiplexer e demultiplexer a divisione di lunghezza d'onda mux e demux combinatore e splitter accoppiatore biconico fuso in fibra ottica fibra fusionada wdm división de longitud de onda multiplexor y demultiplexor mux y demux combinador y divisor fibra óptica acoplador bicónico fusionado fibra fundida wdm multiplexador e demultiplexador por divisão de comprimento de onda mux e demux combinador e divisor fibra óptica acoplador bicônico fundido fibra fibra optica mixta biconis sulatettu kuitu wdm aallonpituusjakoinen multiplekseri ja demultiplekseri mux- ja demux-yhdistäjä ja jakaja kuituoptinen sulatettu kaksoiskartioliitin PM1550 PM1950 PM2000 8/125um 9/125um 10/125um 10/130um 1x2 2x2 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda tie maintien de la polarisation fibre panda ou cravate avec taux d'extinction polarisationserhaltende Panda- oder Bindefaser mit Extinktionsverhältnis polarización manteniendo panda o fibra de amarre con relación de extinción polarização mantendo a fibra panda ou tie com taxa de extinção polarizzazione mantenendo panda o legare fibra con rapporto di estinzione olarisaatiota ylläpitävä panda- tai sidekuitu ekstinktiosuhteella for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPCD 1310nm 1290nm 1330nm 1320nm 1300nm 1304nm 2050nm 2055nm 2060nm 2065nm 2070nm 2075nm 2080nm 2085nm 2090nm fused fiber wdm wavelength division multiplexer and demultiplexer mux and demux combiner and splitter fiber optic fused biconical coupler fusionierte faser wdm wellenlängenteilung multiplexer und demultiplexer mux und demux kombinierer und splitter faseroptischer geschmolzener bikonischer koppler fibre fusionnée wdm multiplexeur et démultiplexeur multiplexeur et démultiplexeur multiplexeur et séparateur fibre optique coupleur biconique fusionné fibra fusa wdm multiplexer e demultiplexer a divisione di lunghezza d'onda mux e demux combinatore e splitter accoppiatore biconico fuso in fibra ottica fibra fusionada wdm división de longitud de onda multiplexor y demultiplexor mux y demux combinador y divisor fibra óptica acoplador bicónico fusionado fibra fundida wdm multiplexador e demultiplexador por divisão de comprimento de onda mux e demux combinador e divisor fibra óptica acoplador bicônico fundido fibra fibra optica mixta biconis sulatettu kuitu wdm aallonpituusjakoinen multiplekseri ja demultiplekseri mux- ja demux-yhdistäjä ja jakaja kuituoptinen sulatettu kaksoiskartioliitin PM1550 PM1950 PM2000 8/125um 9/125um 10/125um 10/130um 1x2 2x2 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda tie maintien de la polarisation fibre panda ou cravate avec taux d'extinction polarisationserhaltende Panda- oder Bindefaser mit Extinktionsverhältnis polarización manteniendo panda o fibra de amarre con relación de extinción polarização mantendo a fibra panda ou tie com taxa de extinção polarizzazione mantenendo panda o legare fibra con rapporto di estinzione olarisaatiota ylläpitävä panda- tai sidekuitu ekstinktiosuhteella for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 132070 1320701
TYPICAL SPECIFICATIONS
Wavelength Range 1 (WL1) 1310+/-20nm
Wavelength Range 2 (WL2) 2070+/-10nm
Configuration 1x2 or 2x2
Insertion Loss <=1.0dB
Isolation >=13dB
Extinction Ratio (WL2) >=18dB
Directivity >=50dB
Fiber Type PM1550 Fiber or PM1950 Fiber
10/130um PMDC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W, 25W, 30W, 40W, 50W, 60W, 80W, 100W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

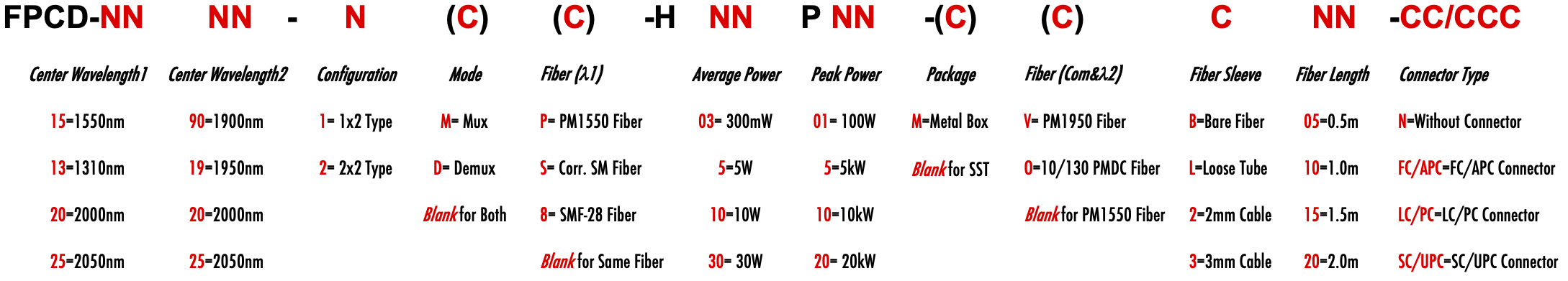

ORDERING INFORMATION/PART NUMBER(PN)
