760/2000nm High Power Fused PM WDM

DESCRIPTION
Haphit provides fiber based passive components. The Fused PM WDM is made by Fused Biconical Taper (FBT) technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features low excess loss, high Wavelength Isolation and high Extinction Ratio The Fused PM WDM will combine or split the two signal light with different wavelength. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPCD 760nm 750nm 770nm 765nm 755nm 2000nm 2020nm 1980nm 1990nm 2010nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter PM1550 PM1550XP 8/125 9/125 1x2 2x2 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W Watt Watts HP CW Continuous Wave FPCD 760nm 750nm 770nm 765nm 755nm 2000nm 2020nm 1980nm 1990nm 2010nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter PM1550 PM1550XP 8/125 9/125 1x2 2x2 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W Watt Watts HP CW Continuous Wave FPCD 760nm 750nm 770nm 765nm 755nm 2000nm 2020nm 1980nm 1990nm 2010nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter PM1550 PM1550XP 8/125 9/125 1x2 2x2 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W Watt Watts HP CW Continuous Wave 7620 76201
TYPICAL SPECIFICATIONS
Wavelength Range 1 760+/-10nm
Wavelength Range 2 2000+/-20nm
Configuration 1x2 or 2x2
Insertion Loss <=1.0dB
Isolation >=13dB
Extinction Ratio >=18dB
Directivity >=50dB
Fiber Type PM1550 Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W, 25W, 30W
Operating Temperature 0~50degreeC

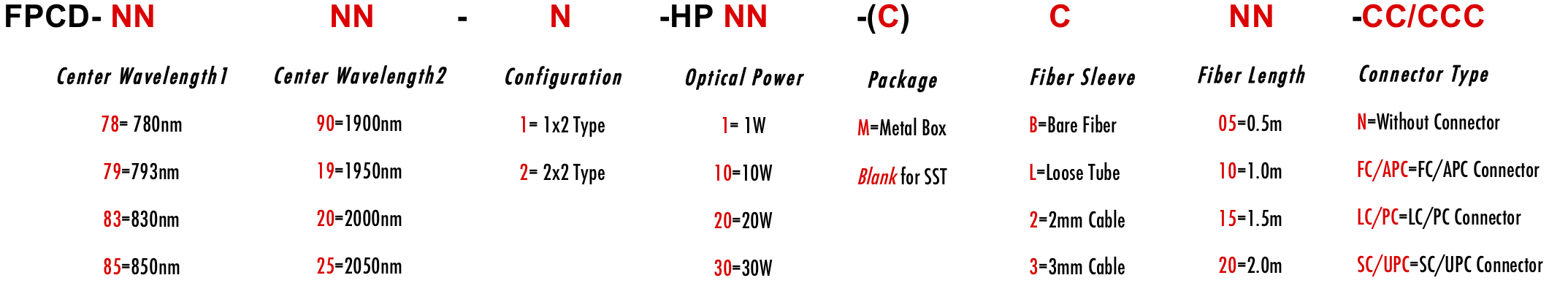

ORDERING INFORMATION/PART NUMBER(PN)
