850/1900nm Fused WDM
DESCRIPTION
Haphit provides fiber based passive components. The Fused WDM is made by Fused Biconical Taper (FBT) technology with fiber in and fiber out. It features low excess loss and high Wavelength Isolation. The Fused WDM will combine or split the two signal light with different wavelength. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCLD 850nm 840nm 860nm 845nm 855nm 1900nm 1890nm 1910nm 1905nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 8/125um 9/125um 1x2 2x2 3-port Y Type 4-port X Type FCLD 850nm 840nm 860nm 845nm 855nm 1900nm 1890nm 1910nm 1905nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 8/125um 9/125um 1x2 2x2 3-port Y Type 4-port X Type FCLD 850nm 840nm 860nm 845nm 855nm 1900nm 1890nm 1910nm 1905nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 8/125um 9/125um 1x2 2x2 3-port Y Type 4-port X Type 8590 85901
TYPICAL SPECIFICATIONS
Wavelength Range 1 850+/-10nm
Wavelength Range 2 1900+/-10nm
Configuration 1x2 or 2x2
Insertion Loss <=1.0dB
Isolation >=13dB
Directivity >=50dB
Fiber Type SMF-28 Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

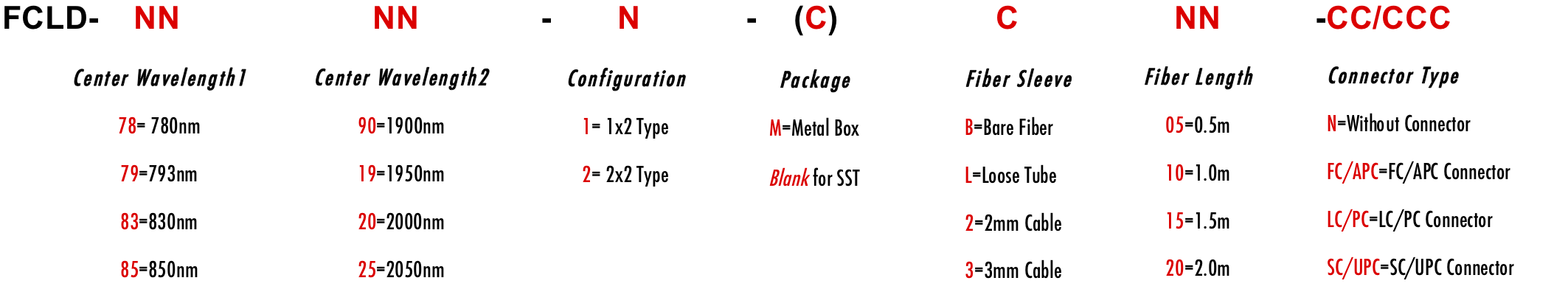

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
