980/1036nm Fused WDM
DESCRIPTION
Haphit provides fiber based passive components. The Fused WDM is made by Fused Biconical Taper (FBT) technology with fiber in and fiber out. It features low excess loss and high Wavelength Isolation. The Fused WDM will combine or split the two signal light with different wavelength. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCLD 980nm 976nm 975nm 970nm 990nm 1036nm 1040nm 1035nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter HI1060 HI1060Flex 10/125um SC Single Cladding 1x2 2x2 3-port Y Type 4-port X Type FCLD 980nm 976nm 975nm 970nm 990nm 1036nm 1040nm 1035nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter HI1060 HI1060Flex 10/125um SC Single Cladding 1x2 2x2 3-port Y Type 4-port X Type FCLD 980nm 976nm 975nm 970nm 990nm 1036nm 1040nm 1035nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter HI1060 HI1060Flex 10/125um SC Single Cladding 1x2 2x2 3-port Y Type 4-port X Type 9836 98361 98362
TYPICAL SPECIFICATIONS
Wavelength Range 1 976+/-5nm or 980+/-5nm
Wavelength Range 2 1036+/-5nm
Configuration 1x2 or 2x2
Insertion Loss <=0.8dB
Isolation >=13dB
Directivity >=50dB
Fiber Type HI1060 Fiber or HI1060 Flex Fiber
10/125um SC Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

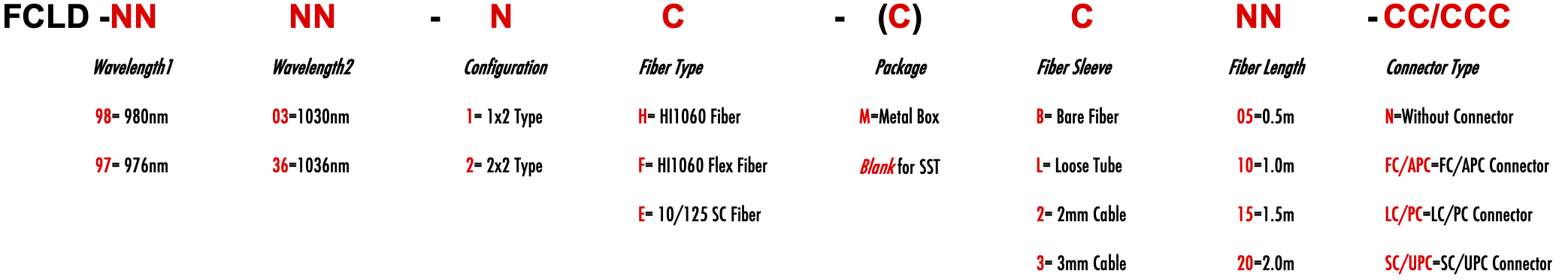

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
