980/1092nm High Power Fused WDM

DESCRIPTION
Haphit provides fiber based passive components. The Fused WDM is made by Fused Biconical Taper (FBT) technology with fiber in and fiber out. It features low excess loss and high Wavelength Isolation. The Fused WDM will combine or split the two signal light with different wavelength. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCLD 980nm 976nm 975nm 970nm 990nm 1092nm 1085nm 1095nm 1090nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter HI1060 HI1060Flex 10/125um SC Single Cladding 1x2 2x2 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W Watt Watts HP CW Continuous Wave FCLD 980nm 976nm 975nm 970nm 990nm 1092nm 1085nm 1095nm 1090nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter HI1060 HI1060Flex 10/125um SC Single Cladding 1x2 2x2 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W Watt Watts HP CW Continuous Wave FCLD 980nm 976nm 975nm 970nm 990nm 1092nm 1085nm 1095nm 1090nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter HI1060 HI1060Flex 10/125um SC Single Cladding 1x2 2x2 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W Watt Watts HP CW Continuous Wave 9809 98091 98092
TYPICAL SPECIFICATIONS
Wavelength Range 1 980+/-5nm
Wavelength Range 2 1092+/-5nm
Configuration 1x2 or 2x2
Insertion Loss <=0.9dB
Isolation >=15dB
Directivity >=50dB
Fiber Type HI1060 Fiber or HI1060 Flex Fiber
10/125um SC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W, 25W, 30W
Operating Temperature 0~50degreeC

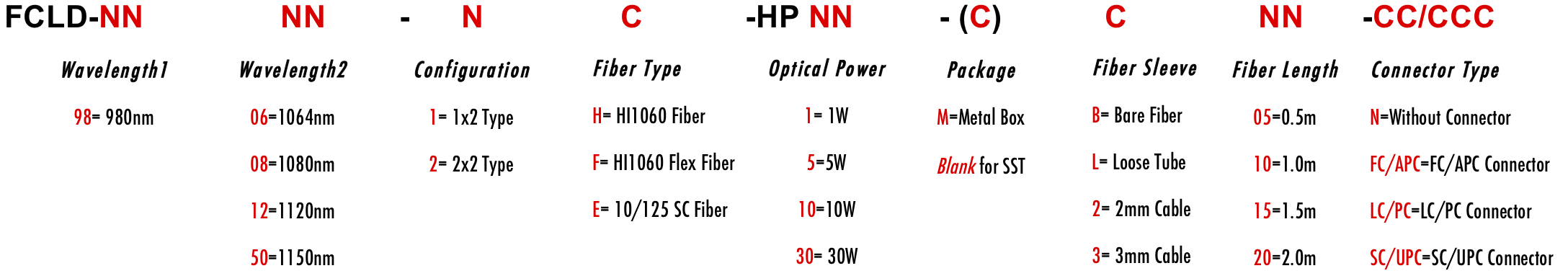

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
