760/1092nm Fused PM WDM for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The Fused PM WDM is made by Fused Biconical Taper (FBT) technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features low excess loss, high Wavelength Isolation and high Extinction Ratio The Fused PM WDM will combine or split the two signal light with different wavelength. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPCD 760nm 755nm 765nm 1092nm 1080nm 1100nm 1102nm 1090nm 1095nm 1097nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter PM850 PM780 P780HP 5/125um 4/125um 1x2 2x2 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPCD 760nm 755nm 765nm 1092nm 1080nm 1100nm 1102nm 1090nm 1095nm 1097nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter PM850 PM780 P780HP 5/125um 4/125um 1x2 2x2 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPCD 760nm 755nm 765nm 1092nm 1080nm 1100nm 1102nm 1090nm 1095nm 1097nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter PM850 PM780 P780HP 5/125um 4/125um 1x2 2x2 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 7609 76091 76092
TYPICAL SPECIFICATIONS
Wavelength Range 1 760+/-2nm
Wavelength Range 2 1092+/-2nm
Configuration 1x2 or 2x2
Insertion Loss <=1.0dB
Isolation >=13dB
Extinction Ratio >=18dB
Directivity >=50dB
Fiber Type PM850 Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W, 25W, 30W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

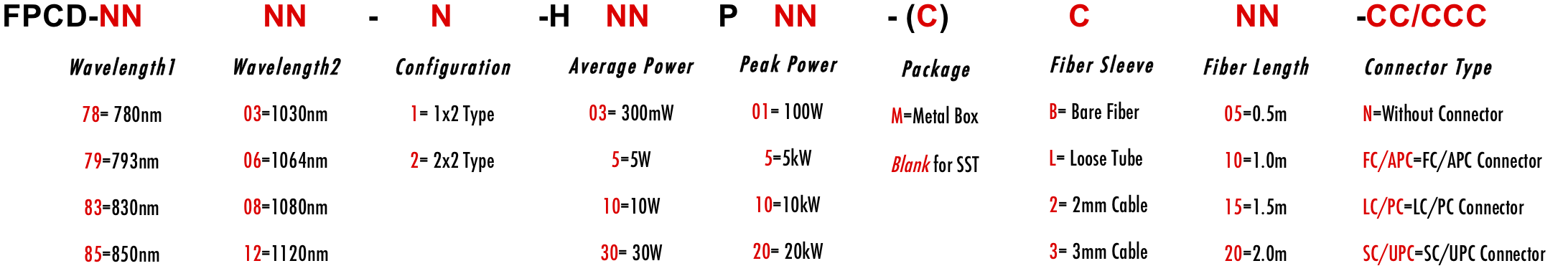

ORDERING INFORMATION/PART NUMBER(PN)
