690/1030nm High Power Fused PM WDM

DESCRIPTION
Haphit provides fiber based passive components. The Fused PM WDM is made by Fused Biconical Taper (FBT) technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features low excess loss, high Wavelength Isolation and high Extinction Ratio The Fused PM WDM will combine or split the two signal light with different wavelength. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPCD 690nm 680nm 700nm 695nm 685nm 1030nm 1020nm 1040nm 1035nm 1036nm fused fiber wdm wavelength division multiplexer and demultiplexer mux and demux combiner and splitter fiber optic fused biconical coupler fusionierte faser wdm wellenlängenteilung multiplexer und demultiplexer mux und demux kombinierer und splitter faseroptischer geschmolzener bikonischer koppler fibre fusionnée wdm multiplexeur et démultiplexeur multiplexeur et démultiplexeur multiplexeur et séparateur fibre optique coupleur biconique fusionné fibra fusa wdm multiplexer e demultiplexer a divisione di lunghezza d'onda mux e demux combinatore e splitter accoppiatore biconico fuso in fibra ottica fibra fusionada wdm división de longitud de onda multiplexor y demultiplexor mux y demux combinador y divisor fibra óptica acoplador bicónico fusionado fibra fundida wdm multiplexador e demultiplexador por divisão de comprimento de onda mux e demux combinador e divisor fibra óptica acoplador bicônico fundido fibra fibra optica mixta biconis sulatettu kuitu wdm aallonpituusjakoinen multiplekseri ja demultiplekseri mux- ja demux-yhdistäjä ja jakaja kuituoptinen sulatettu kaksoiskartioliitin PM980 PM1060L 6/125um 10/125um Single Cladding 1x2 2x2 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W Watt Watts HP CW Continuous Wave FPCD 690nm 680nm 700nm 695nm 685nm 1030nm 1020nm 1040nm 1035nm 1036nm fused fiber wdm wavelength division multiplexer and demultiplexer mux and demux combiner and splitter fiber optic fused biconical coupler fusionierte faser wdm wellenlängenteilung multiplexer und demultiplexer mux und demux kombinierer und splitter faseroptischer geschmolzener bikonischer koppler fibre fusionnée wdm multiplexeur et démultiplexeur multiplexeur et démultiplexeur multiplexeur et séparateur fibre optique coupleur biconique fusionné fibra fusa wdm multiplexer e demultiplexer a divisione di lunghezza d'onda mux e demux combinatore e splitter accoppiatore biconico fuso in fibra ottica fibra fusionada wdm división de longitud de onda multiplexor y demultiplexor mux y demux combinador y divisor fibra óptica acoplador bicónico fusionado fibra fundida wdm multiplexador e demultiplexador por divisão de comprimento de onda mux e demux combinador e divisor fibra óptica acoplador bicônico fundido fibra fibra optica mixta biconis sulatettu kuitu wdm aallonpituusjakoinen multiplekseri ja demultiplekseri mux- ja demux-yhdistäjä ja jakaja kuituoptinen sulatettu kaksoiskartioliitin PM980 PM1060L 6/125um 10/125um Single Cladding 1x2 2x2 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W Watt Watts HP CW Continuous Wave FPCD 690nm 680nm 700nm 695nm 685nm 1030nm 1020nm 1040nm 1035nm 1036nm fused fiber wdm wavelength division multiplexer and demultiplexer mux and demux combiner and splitter fiber optic fused biconical coupler fusionierte faser wdm wellenlängenteilung multiplexer und demultiplexer mux und demux kombinierer und splitter faseroptischer geschmolzener bikonischer koppler fibre fusionnée wdm multiplexeur et démultiplexeur multiplexeur et démultiplexeur multiplexeur et séparateur fibre optique coupleur biconique fusionné fibra fusa wdm multiplexer e demultiplexer a divisione di lunghezza d'onda mux e demux combinatore e splitter accoppiatore biconico fuso in fibra ottica fibra fusionada wdm división de longitud de onda multiplexor y demultiplexor mux y demux combinador y divisor fibra óptica acoplador bicónico fusionado fibra fundida wdm multiplexador e demultiplexador por divisão de comprimento de onda mux e demux combinador e divisor fibra óptica acoplador bicônico fundido fibra fibra optica mixta biconis sulatettu kuitu wdm aallonpituusjakoinen multiplekseri ja demultiplekseri mux- ja demux-yhdistäjä ja jakaja kuituoptinen sulatettu kaksoiskartioliitin PM980 PM1060L 6/125um 10/125um Single Cladding 1x2 2x2 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W Watt Watts HP CW Continuous Wave 69003 690031 690032
TYPICAL SPECIFICATIONS
Wavelength Range 1 (WL1) 690+/-10nm
Wavelength Range 2 (WL2) 1030+/-10nm
Configuration 1x2 or 2x2
Insertion Loss (WL2) <=1.0dB
Insertion Loss (WL1) <=1.5dB
Isolation >=10dB
Extinction Ratio >=18dB
Directivity >=50dB
Fiber Type PM980 Fiber or PM1060L Fiber
10/125um PMDC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W, 25W, 30W
Operating Temperature 0~50degreeC

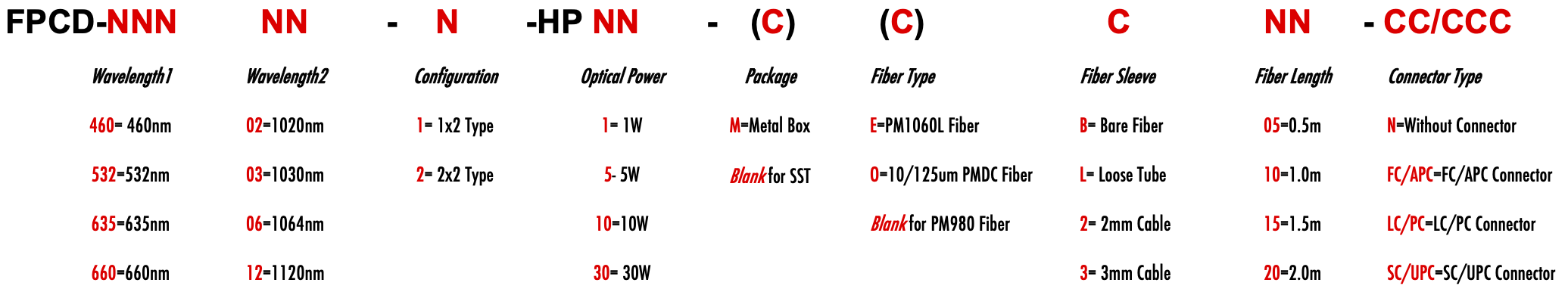

ORDERING INFORMATION/PART NUMBER(PN)
