660/780nm High Power Fused PM WDM
DESCRIPTION
Haphit provides fiber based passive components. The Fused PM WDM is made by Fused Biconical Taper (FBT) technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features low excess loss, high Wavelength Isolation and high Extinction Ratio The Fused PM WDM will combine or split the two signal light with different wavelength. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPCD 660nm 650nm 670nm 665nm 655nm 780nm 775nm 785nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter PM630HP 4/125um 1x2 2x2 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W Watt Watts HP CW Continuous Wave FPCD 660nm 650nm 670nm 665nm 655nm 780nm 775nm 785nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter PM630HP 4/125um 1x2 2x2 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W Watt Watts HP CW Continuous Wave FPCD 660nm 650nm 670nm 665nm 655nm 780nm 775nm 785nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter PM630HP 4/125um 1x2 2x2 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W Watt Watts HP CW Continuous Wave 660780 6607801 6607802
TYPICAL SPECIFICATIONS
Wavelength Range 1 660+/-5nm
Wavelength Range 2 780+/-5nm
Configuration 1x2 or 2x2
Insertion Loss <=3.0dB (Channel 1, Red Light)
<=1.0dB (Channel 2)
Isolation >=10dB
Extinction Ratio >=16dB (Channel 2)
Directivity >=50dB
Fiber Type PM630-HP Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W
Operating Temperature 0~50degreeC

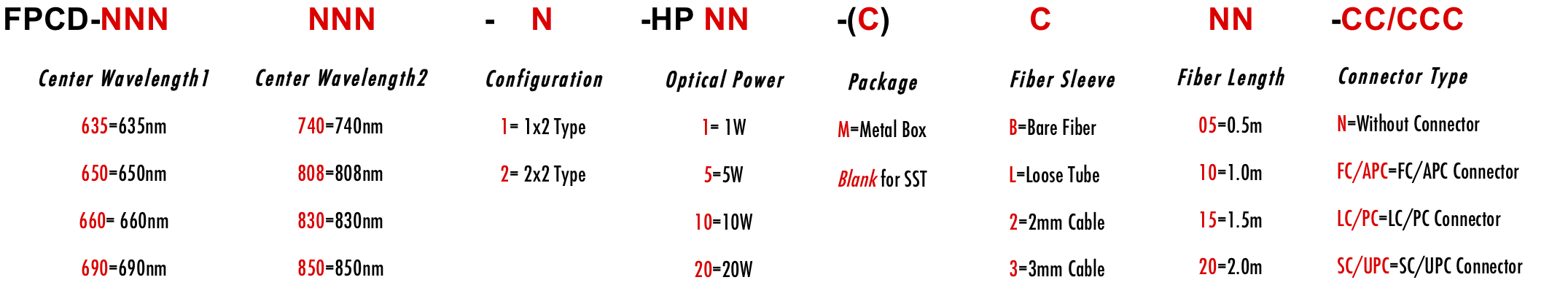

ORDERING INFORMATION/PART NUMBER(PN)
