690/760nm High Power Fused WDM
DESCRIPTION
Haphit provides fiber based passive components. The Fused WDM is made by Fused Biconical Taper (FBT) technology with fiber in and fiber out. It features low excess loss and high Wavelength Isolation. The Fused WDM will combine or split the two signal light with different wavelength. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCLD 690nm 680nm 700nm 695nm 685nm 760nm 755nm 765nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter 630HP 4/125um 1x2 2x2 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W 15W 20W Watt Watts HP CW Continuous Wave FCLD 690nm 680nm 700nm 695nm 685nm 760nm 755nm 765nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter 630HP 4/125um 1x2 2x2 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W 15W 20W Watt Watts HP CW Continuous Wave FCLD 690nm 680nm 700nm 695nm 685nm 760nm 755nm 765nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter 630HP 4/125um 1x2 2x2 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W 15W 20W Watt Watts HP CW Continuous Wave 690760 6907601 6907602
TYPICAL SPECIFICATIONS
Wavelength Range 1
690+/-5nm
Wavelength Range 2
760+/-5nm
Configuration
1x2 or 2x2
Insertion Loss
<=1.0dB
Isolation
>=10dB
Directivity
>=50dB
Fiber Type
630-HP Fiber
Max. Optical Power (CW)
1W, 2W, 3W, 5W, 10W, 15W, 20W
Operating Temperature
0~50degreeC

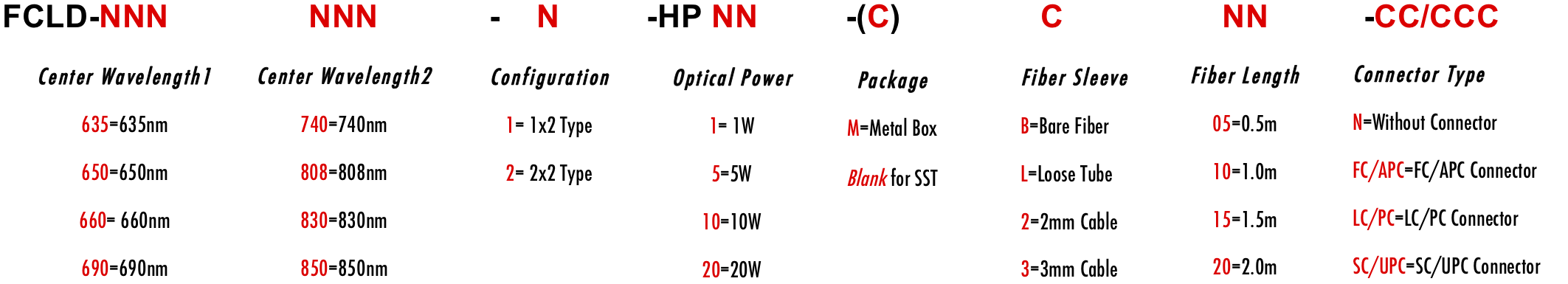

ORDERING INFORMATION/PART NUMBER(PN)
Standard specifications and
design parameters
Serial
Reference
Part Number (PN)*:
The change on PN will save a new product.
Product Description:
Comment/Other Information:
