532/650nm Fused PM WDM
DESCRIPTION
Haphit provides fiber based passive components. The Fused PM WDM is made by Fused Biconical Taper (FBT) technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features low excess loss, high Wavelength Isolation and high Extinction Ratio The Fused PM WDM will combine or split the two signal light with different wavelength. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPCD 532nm 520nm 540nm 535nm 525nm 650nm 640nm 660nm 645nm 655nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter PM460HP 3/125um 1x2 2x2 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda FPCD 532nm 520nm 540nm 535nm 525nm 650nm 640nm 660nm 645nm 655nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter PM460HP 3/125um 1x2 2x2 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda FPCD 532nm 520nm 540nm 535nm 525nm 650nm 640nm 660nm 645nm 655nm Fused WDM Wavelength division Coupler coupleur Acoplador Multiplexer Demux Combiner Divide Splitter PM460HP 3/125um 1x2 2x2 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda 532650 5326501 5326502
TYPICAL SPECIFICATIONS
Wavelength Range 1 532+/-5nm
Wavelength Range 2 650+/-5nm
Configuration 1x2 or 2x2
Insertion Loss <=1.5dB
Isolation >=15dB
Extinction Ratio >=16dB
Directivity >=50dB
Fiber Type PM460-HP Fiber
Max. Optical Power (CW) 100mW
Operating Temperature 0~50degreeC

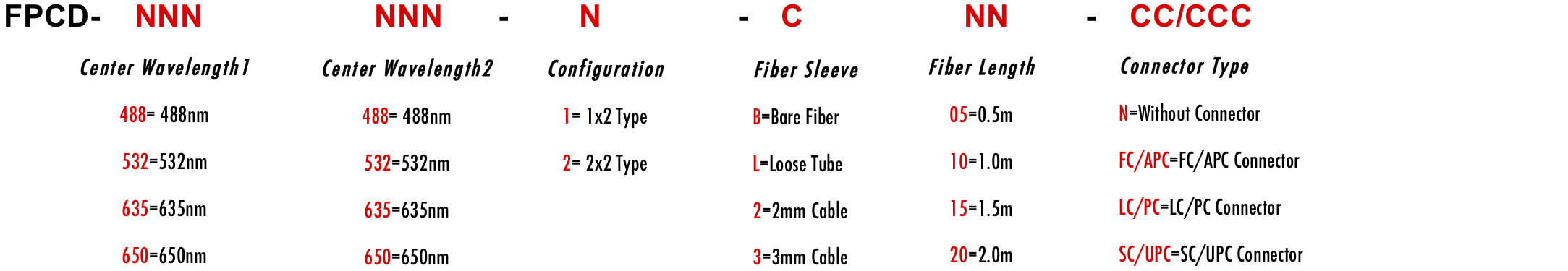

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
