1480/1550nm High Power PM WDM/Isolator Hybrid

DESCRIPTION
Haphit provides fiber based passive components. The WDM/Isolator Hybrid is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation, high Signal Isolation and high Extinction Ratio. The WDM/Isolator Hybrid will combine or split the signal light and pump light, while at the same time force the signal to transmit at single direction. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPHW 1480nm 1470nm 1490nm 1485nm 1450nm 1460nm 1550nm 1530nm 1570nm 1540nm 1560nm PM WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave FPHW 1480nm 1470nm 1490nm 1485nm 1450nm 1460nm 1550nm 1530nm 1570nm 1540nm 1560nm PM WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave FPHW 1480nm 1470nm 1490nm 1485nm 1450nm 1460nm 1550nm 1530nm 1570nm 1540nm 1560nm PM WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave 14SFSY 14SFSS 14SFFY 14SFFS 14SBSY 14SBSS 14SBFY 14SBFS 14DFSY 14DFSS 14DFFY 14DFFS 14DBSY 14DBSS 14DBFY 14DBFS 14HFSY 14HFSS 14HFFY 14HFFS 14HBSY 14HBSS 14HBFY 14HBFS
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1530-1570nm
Reflective Channel Wavelength 1450-1490nm
Signal/Pump Insertion Loss <=1.1dB (Single Stage), <=1.3dB (Dual Stage)
<=1.5dB (H Stage) /<=0.8dB
Signal Isolation >=28dB (Single Stage), >=45dB (Dual Stage)
>=25dB (H Stage)
Signal/Pump Wavelength Isolation >=25dB/>=12dB
Return Loss >=45dB
Extinction Ratio >=18dB
Fiber Type (Common&Signal) PM1550 Fiber or 10/125um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Fiber Type (Pump) Same Fiber or Corr. SM Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W
Operating Temperature 0~70degreeC

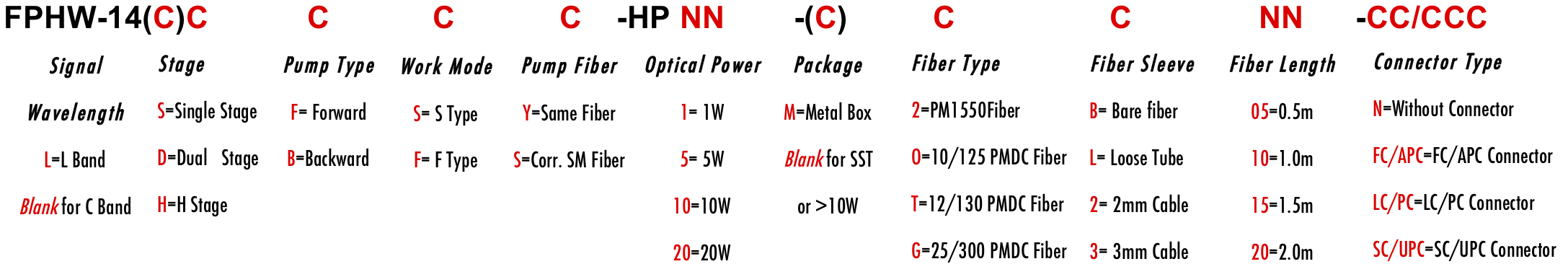

ORDERING INFORMATION/PART NUMBER(PN)
