915/1550nm High Power WDM/Isolator Hybrid
DESCRIPTION
Haphit provides fiber based passive components. The WDM/Isolator Hybrid is made by micro-optics package technology with fiber in and fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation and high Signal Isolation. The WDM/Isolator Hybrid will combine or split the signal light and pump light, while at the same time force the signal to transmit at single direction. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FHWM 915nm 910nm 920nm 905nm 925nm 1550nm 1530nm 1570nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 HI1060 HI1060XP HI780 780HP LMA 5/125um 6/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave FHWM 915nm 910nm 920nm 905nm 925nm 1550nm 1530nm 1570nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 HI1060 HI1060XP HI780 780HP LMA 5/125um 6/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave FHWM 915nm 910nm 920nm 905nm 925nm 1550nm 1530nm 1570nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 HI1060 HI1060XP HI780 780HP LMA 5/125um 6/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave 91SFYS 91SFYM 91SFHS 91SFHM 91SFS 91SFM 91SBYS 91SBYM 91SBHS 91SBHM 91SBS 91SBM 91DFYS 91DFYM 91DFHS 91DFHM 91DFS 91DFM 91DBYS 91DBYM 91DBHS 91DBHM 91DBS 91DBM 91HFYS 91HFYM 91HFHS 91HFHM 91HFS 91HFM 91HBYS 91HBYM 91HBHS 91HBHM 91HBS 91HBM
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1530-1570nm
Reflective Channel Wavelength 915+/-10nm
Signal/Pump Insertion Loss <=1.3dB (Single Stage), <=1.4dB (Dual Stage)
<=1.6dB (H Stage) /<=1.0dB
Signal Isolation >=28dB (Single Stage), >=45dB (Dual Stage)
>=25dB (H Stage)
Signal/Pump Wavelength Isolation >=30dB/>=12dB
Return Loss >=45dB
PDL <=0.1dB (Single Stage)
<=0.2dB (Dual Stage & H Stage)
Fiber Type (Signal) SMF-28 Fiber or 10/130um DC Fiber
12/130um DC Fiber or 20/130um DC Fiber
25/250um DC Fiber or 25/300um DC Fiber
Fiber Type (Common&Pump) Same Fiber, HI780 Fiber or HI1060 Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W
Operating Temperature 0~70degreeC

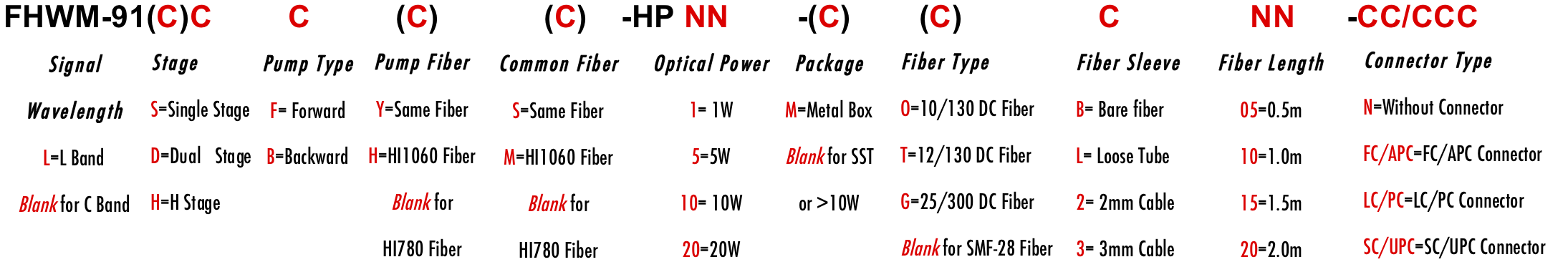

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
