1590/1900nm High Power WDM/Isolator Hybrid
DESCRIPTION
Haphit provides fiber based passive components. The WDM/Isolator Hybrid is made by micro-optics package technology with fiber in and fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation and high Signal Isolation. The WDM/Isolator Hybrid will combine or split the signal light and pump light, while at the same time force the signal to transmit at single direction. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FHWM 1590nm 1570nm 1610nm 1580nm 1600nm 1595nm 1585nm 1575nm 1605nm 1900nm 1905nm 1895nm 1890nm 1910nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  Watt Watts HP CW Continuous Wave FHWM 1590nm 1570nm 1610nm 1580nm 1600nm 1595nm 1585nm 1575nm 1605nm 1900nm 1905nm 1895nm 1890nm 1910nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W Watt Watts HP CW Continuous Wave FHWM 1590nm 1570nm 1610nm 1580nm 1600nm 1595nm 1585nm 1575nm 1605nm 1900nm 1905nm 1895nm 1890nm 1910nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W Watt Watts HP CW Continuous Wave 5990 SF SB DF DB HS HB
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1900+/-10nm
Reflective Channel Wavelength 1590+/-20nm
Signal/Pump Insertion Loss <=1.6dB (Single Stage), <=2.0dB (Dual Stage)
<=2.0dB (H Stage) /<=1.0dB
Signal Isolation >=10dB (Single Stage), >=25dB (Dual Stage)
>=25dB (H Stage)
Signal/Pump Wavelength Isolation >=25dB/>=12dB
Return Loss >=45dB
PDL <=0.2dB
Fiber Type SMF-28 Fiber or SM1950 Fiber
10/130um DC Fiber or 25/250um DC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W
Operating Temperature 0~50degreeC

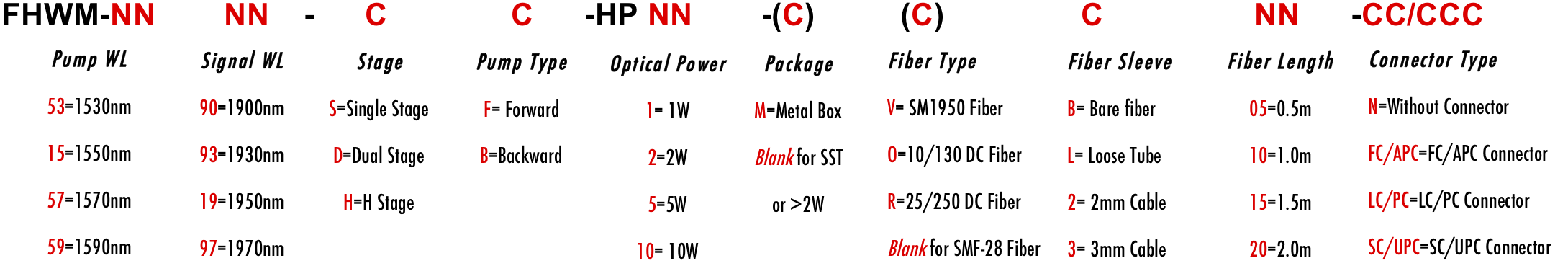

ORDERING INFORMATION/PART NUMBER(PN)
