780/2070nm WDM/Isolator Hybrid
DESCRIPTION
Haphit provides fiber based passive components. The WDM/Isolator Hybrid is made by micro-optics package technology with fiber in and fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation and high Signal Isolation. The WDM/Isolator Hybrid will combine or split the signal light and pump light, while at the same time force the signal to transmit at single direction. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FHWM 780nm 770nm 790nm 785nm 775nm 2070nm 2060nm 2080nm 2050nm 2090nm 2065nm 2075nm 2055nm 2085nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 HI780 780HP LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad FHWM 780nm 770nm 790nm 785nm 775nm 2070nm 2060nm 2080nm 2050nm 2090nm 2065nm 2075nm 2055nm 2085nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 HI780 780HP LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad FHWM 780nm 770nm 790nm 785nm 775nm 2070nm 2060nm 2080nm 2050nm 2090nm 2065nm 2075nm 2055nm 2085nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 HI780 780HP LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad 7827 SFY SF7 SFH SBY SB7 SBH DFY DF7 DFH DBY DB7 DBH
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 2070+/-10nm
Reflective Channel Wavelength 780+/-10nm
Signal/Pump Insertion Loss <=1.6dB (Single Stage), <=2.0dB (Dual Stage) /<=1.3dB
Signal Isolation >=10dB (Single Stage), >=25dB (Dual Stage)
Signal/Pump Wavelength Isolation >=25dB/>=12dB
Return Loss >=45dB
PDL <=0.2dB
Fiber Type (Common&Signal) SMF-28 Fiber or SM1950 Fiber
10/130um DC Fiber or 25/250um DC Fiber
Fiber Type (Pump) Same Fiber, 780HP Fiber or HI780 Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

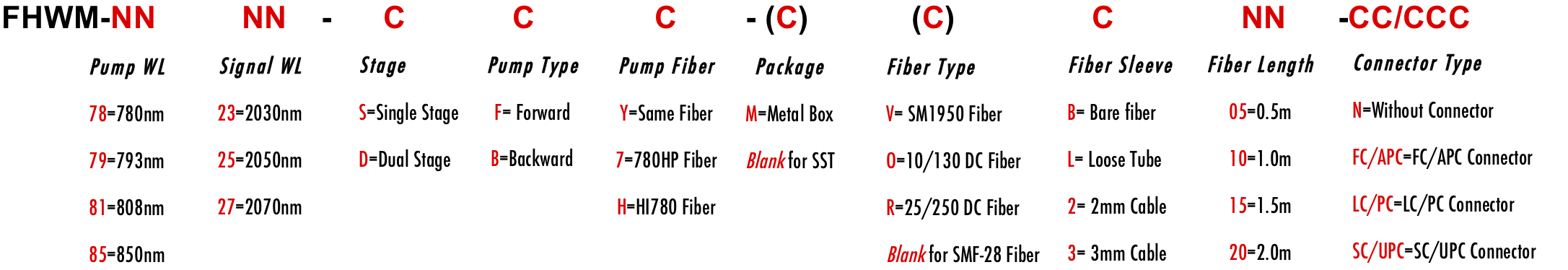

ORDERING INFORMATION/PART NUMBER(PN)
