980/1064nm PM WDM/Isolator Hybrid

DESCRIPTION
Haphit provides fiber based passive components. The WDM/Isolator Hybrid is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation, high Signal Isolation and high Extinction Ratio. The WDM/Isolator Hybrid will combine or split the signal light and pump light, while at the same time force the signal to transmit at single direction. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPHW 980nm 975nm 970nm985nm 990nm 1064nm 1060nm 1050nm 1070nm 1074nm 1065nm 1055nm PM WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter PM980 PM980XP LMA 6/125um 10/125um 10/130um 15/130um 20/125um 20/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W Watt Watts HP CW Continuous Wave FPHW 980nm 975nm 970nm985nm 990nm 1064nm 1060nm 1050nm 1070nm 1074nm 1065nm 1055nm PM WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter PM980 PM980XP LMA 6/125um 10/125um 10/130um 15/130um 20/125um 20/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W Watt Watts HP CW Continuous Wave FPHW 980nm 975nm 970nm985nm 990nm 1064nm 1060nm 1050nm 1070nm 1074nm 1065nm 1055nm PM WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter PM980 PM980XP LMA 6/125um 10/125um 10/130um 15/130um 20/125um 20/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W Watt Watts HP CW Continuous Wave 9806 SFSY SFSP SFSH SFSS SFFY SFFP SFFH SFFH SBSY SBSP SBFH SBSS SBFY SBFP SBFH SBFS DFSY DFSP DFSH DFSS DFFY DFFP DFFH DFFH DBSY DBSP DBFH DBSS DBFY DBFP DBFH DBFS 05 1 2 3 4 5 6 7 8 9 10
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1064+/-10nm
Reflective Channel Wavelength 980+/-10nm
Signal/Pump Insertion Loss <=3.0dB (Single Stage), <=4.4dB (Dual Stage) /<=0.8dB
Signal Isolation >=28dB (Single Stage), >=45dB (Dual Stage)
Signal/Pump Wavelength Isolation >=25dB/>=12dB
Return Loss >=45dB
Extinction Ratio >=18dB
Fiber Type (Common&Signal) PM980 Fiber, PM1060L Fiber or PM1060L-FA Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/125um PMDC Fiber or 25/250um PMDC Fiber
Fiber Type (Pump) Same Fiber, Corr. SM Fiber, PM980 Fiber or HI1060 Fiber
Max. Signal Optical Power (CW) 300mW
Max. Pump Optical Power (CW) 300mW, 500mW, 1W, 2W, 3W, 5W, 10W
Operating Temperature 0~50degreeC

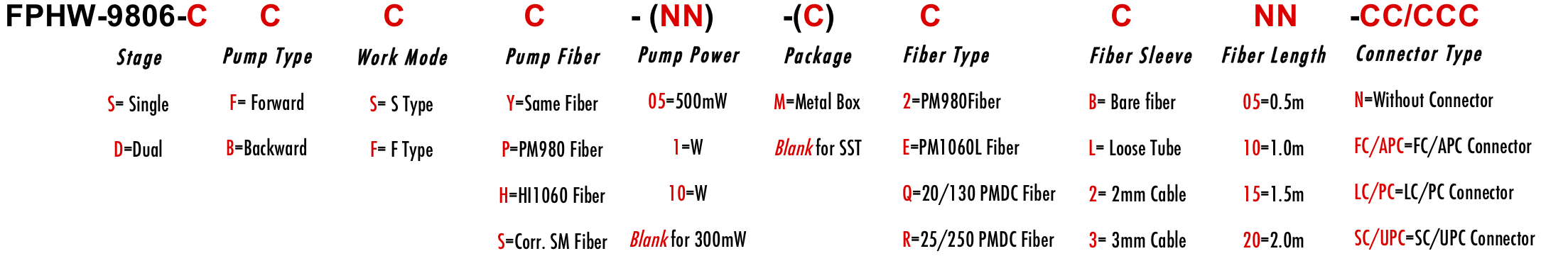

ORDERING INFORMATION/PART NUMBER(PN)
