915/1080nm WDM/Isolator Hybrid

DESCRIPTION
Haphit provides fiber based passive components. The WDM/Isolator Hybrid is made by micro-optics package technology with fiber in and fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation and high Signal Isolation. The WDM/Isolator Hybrid will combine or split the signal light and pump light, while at the same time force the signal to transmit at single direction. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FHWM 915nm 900nm 930nm 910nm 905nm 920nm 925nm 1080nm 1070nm 1090nm 1083nm 1085nm 1075nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter HI1060 HI1060XP HI780 780HP 980HP 980XP LMA 6/125um 10/125um 10/130um 15/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad High Power 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W Watt Watts HP CW Continuous Wave FHWM 915nm 900nm 930nm 910nm 905nm 920nm 925nm 1080nm 1070nm 1090nm 1083nm 1085nm 1075nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter HI1060 HI1060XP HI780 780HP 980HP 980XP LMA 6/125um 10/125um 10/130um 15/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad High Power 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W Watt Watts HP CW Continuous Wave FHWM 915nm 900nm 930nm 910nm 905nm 920nm 925nm 1080nm 1070nm 1090nm 1083nm 1085nm 1075nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter HI1060 HI1060XP HI780 780HP 980HP 980XP LMA 6/125um 10/125um 10/130um 15/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad High Power 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W Watt Watts HP CW Continuous Wave 9108 SFH SBH DFH DBH 05 1 2 3 4 5 6 7 8 9 10
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1080+/-10nm
Reflective Channel Wavelength 915+/-10nm
Signal/Pump Insertion Loss <=2.7dB (Single Stage), <=4.2dB (Dual Stage) /<=1.0dB
Signal Isolation >=22dB (Single Stage), >=40dB (Dual Stage)
Signal/Pump Wavelength Isolation >=25dB/>=12dB
Return Loss >=45dB
PDL <=0.2dB (Single Stage)
<=0.25dB (Dual Stage)
Fiber Type (Common&Signal) HI780 Fiber, HI1060 Fiber or 10/125um SC Fiber
10/125um DC Fiber or 15/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
Fiber Type (Pump) Same Fiber, HI780 Fiber or HI1060 Fiber
Max. Signal Optical Power (CW) 300mW
Max. Pump Optical Power (CW) 300mW, 500mW, 1W, 2W, 3W, 5W, 10W
Operating Temperature 0~50degreeC

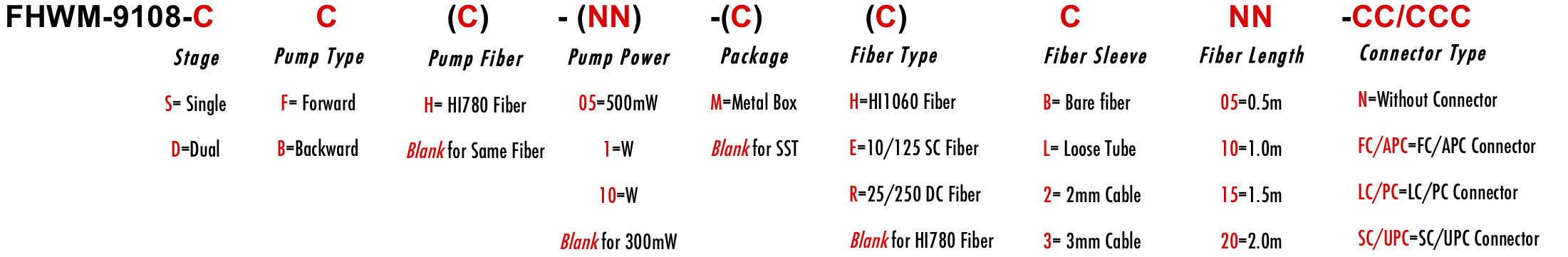

ORDERING INFORMATION/PART NUMBER(PN)
