915/1080nm PM WDM/Isolator Hybrid for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The WDM/Isolator Hybrid is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation, high Signal Isolation and high Extinction Ratio. The WDM/Isolator Hybrid will combine or split the signal light and pump light, while at the same time force the signal to transmit at single direction. The pulse power version is specially designed to withstand high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPHW 915nm 900nm 930nm 910nm 905nm 920nm 925nm 1080nm 1070nm 1090nm 1083nm 1085nm 1075nm PM WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter PM980 PM980XP PM850 PM780HP 5/125um LMA 6/125um 10/125um 10/130um 15/130um 20/125um 20/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 300mW 500mW 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPHW 915nm 900nm 930nm 910nm 905nm 920nm 925nm 1080nm 1070nm 1090nm 1083nm 1085nm 1075nm PM WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter PM980 PM980XP PM850 PM780HP 5/125um LMA 6/125um 10/125um 10/130um 15/130um 20/125um 20/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 300mW 500mW 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPHW 915nm 900nm 930nm 910nm 905nm 920nm 925nm 1080nm 1070nm 1090nm 1083nm 1085nm 1075nm PM WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter PM980 PM980XP PM850 PM780HP 5/125um LMA 6/125um 10/125um 10/130um 15/130um 20/125um 20/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 300mW 500mW 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 9108 SFSY SFSP SFSH SFSS SFFY SFFP SFFH SFFH SBSY SBSP SBFH SBSS SBFY SBFP SBFH SBFS DFSY DFSP DFSH DFSS DFFY DFFP DFFH DFFH DBSY DBSP DBFH DBSS DBFY DBFP DBFH DBFS 05 1 2 3 4 5 6 7 8 9 10
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1080+/-10nm
Reflective Channel Wavelength 915+/-10nm
Signal/Pump Insertion Loss <=2.7dB (Single Stage), <=4.2dB (Dual Stage) /<=1.0dB
Signal Isolation >=22dB (Single Stage), >=40dB (Dual Stage)
Signal/Pump Wavelength Isolation >=25dB/>=12dB
Return Loss >=45dB
Extinction Ratio >=18dB
Fiber Type (Common&Signal) PM850 Fiber, PM980 Fiber or PM1060L Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/125um PMDC Fiber or 25/250um PMDC Fiber
Fiber Type (Pump) Same Fiber, Corr. SM Fiber, PM850 Fiber or HI780 Fiber
PM980 Fiber or HI1060 Fiber
Max. Signal Average Power 300mW
Max. Pump Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

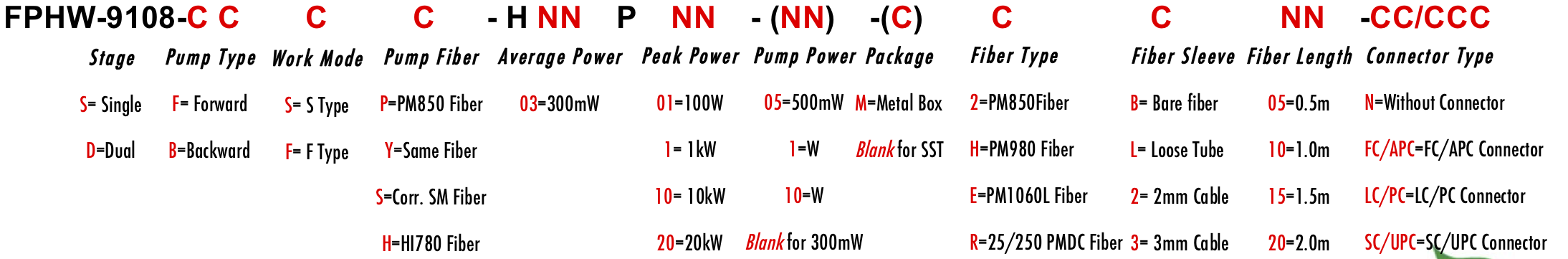

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
