915/1550nm WDM/Isolator/Tap Hybrid for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The WDM/Isolator/Tap Hybrid is made by micro-optics package technology with fiber in and fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation, high Signal Isolation and various Tap Ratio. The WDM/Isolator/Tap Hybrid will combine or split the signal light and pump light, while at the same time force the signal to transmit at single direction and tap the signal for monitoring purpose. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FHWT 915nm 910nm 920nm 905nm 925nm 1550nm 1530nm 1570nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador SMF-28 SMF28 HI1060 HI1060XP HI780 780HP LMA 5/125um 6/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FHWT 915nm 910nm 920nm 905nm 925nm 1550nm 1530nm 1570nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador SMF-28 SMF28 HI1060 HI1060XP HI780 780HP LMA 5/125um 6/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FHWT 915nm 910nm 920nm 905nm 925nm 1550nm 1530nm 1570nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador SMF-28 SMF28 HI1060 HI1060XP HI780 780HP LMA 5/125um 6/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 91S001YM 91S01YM 91S02YM 91S03YM 91S04YM 91S05YM 91S06YM 91S07YM 91S08YM 91S09YM 91S10YM 91S11YM 91S12YM 91S13YM 91S14YM 91S15YM 91S16YM 91S17YM 91S18YM 91S19YM 91S20YM 91S21YM 91S22YM 91S23YM 91S24YM 91S25YM 91S26YM 91S27YM 91S28YM 91S29YM 91S30YM 91S31YM 91S32YM 91S33YM 91S34YM 91S35YM 91S36YM 91S37YM 91S38YM 91S39YM 91S40YM 91S41YM 91S42YM 91S43YM 91S44YM 91S45YM 91S46YM 91S47YM 91S48YM 91S49YM 91S50YM 91S51YM 91S52YM 91S53YM 91S54YM 91S55YM 91S56YM 91S57YM 91S58YM 91S59YM 91S60YM 91S61YM 91S62YM 91S63YM 91S64YM 91S65YM 91S66YM 91S67YM 91S68YM 91S69YM 91S70YM 91S71YM 91S72YM 91S73YM 91S74YM 91S75YM 91S76YM 91S77YM 91S78YM 91S79YM 91S80YM 91S81YM 91S82YM 91S83YM 91S84YM 91S85YM 91S86YM 91S87YM 91S88YM 91S89YM 91S90YM 91S91YM 91S92YM 91S93YM 91S94YM 91S95YM 91S96YM 91S97YM 91S98YM 91S99YM 91S001M 91S01M 91S02M 91S03M 91S04M 91S05M 91S06M 91S07M 91S08M 91S09M 91S10M 91S11M 91S12M 91S13M 91S14M 91S15M 91S16M 91S17M 91S18M 91S19M 91S20M 91S21M 91S22M 91S23M 91S24M 91S25M 91S26M 91S27M 91S28M 91S29M 91S30M 91S31M 91S32M 91S33M 91S34M 91S35M 91S36M 91S37M 91S38M 91S39M 91S40M 91S41M 91S42M 91S43M 91S44M 91S45M 91S46M 91S47M 91S48M 91S49M 91S50M 91S51M 91S52M 91S53M 91S54M 91S55M 91S56M 91S57M 91S58M 91S59M 91S60M 91S61M 91S62M 91S63M 91S64M 91S65M 91S66M 91S67M 91S68M 91S69M 91S70M 91S71M 91S72M 91S73M 91S74M 91S75M 91S76M 91S77M 91S78M 91S79M 91S80M 91S81M 91S82M 91S83M 91S84M 91S85M 91S86M 91S87M 91S88M 91S89M 91S90M 91S91M 91S92M 91S93M 91S94M 91S95M 91S96M 91S97M 91S98M 91S99M 91S001YN 91S01YN 91S02YN 91S03YN 91S04YN 91S05YN 91S06YN 91S07YN 91S08YN 91S09YN 91S10YN 91S11YN 91S12YN 91S13YN 91S14YN 91S15YN 91S16YN 91S17YN 91S18YN 91S19YN 91S20YN 91S21YN 91S22YN 91S23YN 91S24YN 91S25YN 91S26YN 91S27YN 91S28YN 91S29YN 91S30YN 91S31YN 91S32YN 91S33YN 91S34YN 91S35YN 91S36YN 91S37YN 91S38YN 91S39YN 91S40YN 91S41YN 91S42YN 91S43YN 91S44YN 91S45YN 91S46YN 91S47YN 91S48YN 91S49YN 91S50YN 91S51YN 91S52YN 91S53YN 91S54YN 91S55YN 91S56YN 91S57YN 91S58YN 91S59YN 91S60YN 91S61YN 91S62YN 91S63YN 91S64YN 91S65YN 91S66YN 91S67YN 91S68YN 91S69YN 91S70YN 91S71YN 91S72YN 91S73YN 91S74YN 91S75YN 91S76YN 91S77YN 91S78YN 91S79YN 91S80YN 91S81YN 91S82YN 91S83YN 91S84YN 91S85YN 91S86YN 91S87YN 91S88YN 91S89YN 91S90YN 91S91YN 91S92YN 91S93YN 91S94YN 91S95YN 91S96YN 91S97YN 91S98YN 91S99YN 91S001N 91S01N 91S02N 91S03N 91S04N 91S05N 91S06N 91S07N 91S08N 91S09N 91S10N 91S11N 91S12N 91S13N 91S14N 91S15N 91S16N 91S17N 91S18N 91S19N 91S20N 91S21N 91S22N 91S23N 91S24N 91S25N 91S26N 91S27N 91S28N 91S29N 91S30N 91S31N 91S32N 91S33N 91S34N 91S35N 91S36N 91S37N 91S38N 91S39N 91S40N 91S41N 91S42N 91S43N 91S44N 91S45N 91S46N 91S47N 91S48N 91S49N 91S50N 91S51N 91S52N 91S53N 91S54N 91S55N 91S56N 91S57N 91S58N 91S59N 91S60N 91S61N 91S62N 91S63N 91S64N 91S65N 91S66N 91S67N 91S68N 91S69N 91S70N 91S71N 91S72N 91S73N 91S74N 91S75N 91S76N 91S77N 91S78N 91S79N 91S80N 91S81N 91S82N 91S83N 91S84N 91S85N 91S86N 91S87N 91S88N 91S89N 91S90N 91S91N 91S92N 91S93N 91S94N 91S95N 91S96N 91S97N 91S98N 91S99N 91S001HM 91S01HM 91S02HM 91S03HM 91S04HM 91S05HM 91S06HM 91S07HM 91S08HM 91S09HM 91S10HM 91S11HM 91S12HM 91S13HM 91S14HM 91S15HM 91S16HM 91S17HM 91S18HM 91S19HM 91S20HM 91S21HM 91S22HM 91S23HM 91S24HM 91S25HM 91S26HM 91S27HM 91S28HM 91S29HM 91S30HM 91S31HM 91S32HM 91S33HM 91S34HM 91S35HM 91S36HM 91S37HM 91S38HM 91S39HM 91S40HM 91S41HM 91S42HM 91S43HM 91S44HM 91S45HM 91S46HM 91S47HM 91S48HM 91S49HM 91S50HM 91S51HM 91S52HM 91S53HM 91S54HM 91S55HM 91S56HM 91S57HM 91S58HM 91S59HM 91S60HM 91S61HM 91S62HM 91S63HM 91S64HM 91S65HM 91S66HM 91S67HM 91S68HM 91S69HM 91S70HM 91S71HM 91S72HM 91S73HM 91S74HM 91S75HM 91S76HM 91S77HM 91S78HM 91S79HM 91S80HM 91S81HM 91S82HM 91S83HM 91S84HM 91S85HM 91S86HM 91S87HM 91S88HM 91S89HM 91S90HM 91S91HM 91S92HM 91S93HM 91S94HM 91S95HM 91S96HM 91S97HM 91S98HM 91S99HM 91S001HN 91S01HN 91S02HN 91S03HN 91S04HN 91S05HN 91S06HN 91S07HN 91S08HN 91S09HN 91S10HN 91S11HN 91S12HN 91S13HN 91S14HN 91S15HN 91S16HN 91S17HN 91S18HN 91S19HN 91S20HN 91S21HN 91S22HN 91S23HN 91S24HN 91S25HN 91S26HN 91S27HN 91S28HN 91S29HN 91S30HN 91S31HN 91S32HN 91S33HN 91S34HN 91S35HN 91S36HN 91S37HN 91S38HN 91S39HN 91S40HN 91S41HN 91S42HN 91S43HN 91S44HN 91S45HN 91S46HN 91S47HN 91S48HN 91S49HN 91S50HN 91S51HN 91S52HN 91S53HN 91S54HN 91S55HN 91S56HN 91S57HN 91S58HN 91S59HN 91S60HN 91S61HN 91S62HN 91S63HN 91S64HN 91S65HN 91S66HN 91S67HN 91S68HN 91S69HN 91S70HN 91S71HN 91S72HN 91S73HN 91S74HN 91S75HN 91S76HN 91S77HN 91S78HN 91S79HN 91S80HN 91S81HN 91S82HN 91S83HN 91S84HN 91S85HN 91S86HN 91S87HN 91S88HN 91S89HN 91S90HN 91S91HN 91S92HN 91S93HN 91S94HN 91S95HN 91S96HN 91S97HN 91S98HN 91S99HN 91D001YM 91D01YM 91D02YM 91D03YM 91D04YM 91D05YM 91D06YM 91D07YM 91D08YM 91D09YM 91D10YM 91D11YM 91D12YM 91D13YM 91D14YM 91D15YM 91D16YM 91D17YM 91D18YM 91D19YM 91D20YM 91D21YM 91D22YM 91D23YM 91D24YM 91D25YM 91D26YM 91D27YM 91D28YM 91D29YM 91D30YM 91D31YM 91D32YM 91D33YM 91D34YM 91D35YM 91D36YM 91D37YM 91D38YM 91D39YM 91D40YM 91D41YM 91D42YM 91D43YM 91D44YM 91D45YM 91D46YM 91D47YM 91D48YM 91D49YM 91D50YM 91D51YM 91D52YM 91D53YM 91D54YM 91D55YM 91D56YM 91D57YM 91D58YM 91D59YM 91D60YM 91D61YM 91D62YM 91D63YM 91D64YM 91D65YM 91D66YM 91D67YM 91D68YM 91D69YM 91D70YM 91D71YM 91D72YM 91D73YM 91D74YM 91D75YM 91D76YM 91D77YM 91D78YM 91D79YM 91D80YM 91D81YM 91D82YM 91D83YM 91D84YM 91D85YM 91D86YM 91D87YM 91D88YM 91D89YM 91D90YM 91D91YM 91D92YM 91D93YM 91D94YM 91D95YM 91D96YM 91D97YM 91D98YM 91D99YM 91D001M 91D01M 91D02M 91D03M 91D04M 91D05M 91D06M 91D07M 91D08M 91D09M 91D10M 91D11M 91D12M 91D13M 91D14M 91D15M 91D16M 91D17M 91D18M 91D19M 91D20M 91D21M 91D22M 91D23M 91D24M 91D25M 91D26M 91D27M 91D28M 91D29M 91D30M 91D31M 91D32M 91D33M 91D34M 91D35M 91D36M 91D37M 91D38M 91D39M 91D40M 91D41M 91D42M 91D43M 91D44M 91D45M 91D46M 91D47M 91D48M 91D49M 91D50M 91D51M 91D52M 91D53M 91D54M 91D55M 91D56M 91D57M 91D58M 91D59M 91D60M 91D61M 91D62M 91D63M 91D64M 91D65M 91D66M 91D67M 91D68M 91D69M 91D70M 91D71M 91D72M 91D73M 91D74M 91D75M 91D76M 91D77M 91D78M 91D79M 91D80M 91D81M 91D82M 91D83M 91D84M 91D85M 91D86M 91D87M 91D88M 91D89M 91D90M 91D91M 91D92M 91D93M 91D94M 91D95M 91D96M 91D97M 91D98M 91D99M 91D001YN 91D01YN 91D02YN 91D03YN 91D04YN 91D05YN 91D06YN 91D07YN 91D08YN 91D09YN 91D10YN 91D11YN 91D12YN 91D13YN 91D14YN 91D15YN 91D16YN 91D17YN 91D18YN 91D19YN 91D20YN 91D21YN 91D22YN 91D23YN 91D24YN 91D25YN 91D26YN 91D27YN 91D28YN 91D29YN 91D30YN 91D31YN 91D32YN 91D33YN 91D34YN 91D35YN 91D36YN 91D37YN 91D38YN 91D39YN 91D40YN 91D41YN 91D42YN 91D43YN 91D44YN 91D45YN 91D46YN 91D47YN 91D48YN 91D49YN 91D50YN 91D51YN 91D52YN 91D53YN 91D54YN 91D55YN 91D56YN 91D57YN 91D58YN 91D59YN 91D60YN 91D61YN 91D62YN 91D63YN 91D64YN 91D65YN 91D66YN 91D67YN 91D68YN 91D69YN 91D70YN 91D71YN 91D72YN 91D73YN 91D74YN 91D75YN 91D76YN 91D77YN 91D78YN 91D79YN 91D80YN 91D81YN 91D82YN 91D83YN 91D84YN 91D85YN 91D86YN 91D87YN 91D88YN 91D89YN 91D90YN 91D91YN 91D92YN 91D93YN 91D94YN 91D95YN 91D96YN 91D97YN 91D98YN 91D99YN 91D001N 91D01N 91D02N 91D03N 91D04N 91D05N 91D06N 91D07N 91D08N 91D09N 91D10N 91D11N 91D12N 91D13N 91D14N 91D15N 91D16N 91D17N 91D18N 91D19N 91D20N 91D21N 91D22N 91D23N 91D24N 91D25N 91D26N 91D27N 91D28N 91D29N 91D30N 91D31N 91D32N 91D33N 91D34N 91D35N 91D36N 91D37N 91D38N 91D39N 91D40N 91D41N 91D42N 91D43N 91D44N 91D45N 91D46N 91D47N 91D48N 91D49N 91D50N 91D51N 91D52N 91D53N 91D54N 91D55N 91D56N 91D57N 91D58N 91D59N 91D60N 91D61N 91D62N 91D63N 91D64N 91D65N 91D66N 91D67N 91D68N 91D69N 91D70N 91D71N 91D72N 91D73N 91D74N 91D75N 91D76N 91D77N 91D78N 91D79N 91D80N 91D81N 91D82N 91D83N 91D84N 91D85N 91D86N 91D87N 91D88N 91D89N 91D90N 91D91N 91D92N 91D93N 91D94N 91D95N 91D96N 91D97N 91D98N 91D99N 91D001HM 91D01HM 91D02HM 91D03HM 91D04HM 91D05HM 91D06HM 91D07HM 91D08HM 91D09HM 91D10HM 91D11HM 91D12HM 91D13HM 91D14HM 91D15HM 91D16HM 91D17HM 91D18HM 91D19HM 91D20HM 91D21HM 91D22HM 91D23HM 91D24HM 91D25HM 91D26HM 91D27HM 91D28HM 91D29HM 91D30HM 91D31HM 91D32HM 91D33HM 91D34HM 91D35HM 91D36HM 91D37HM 91D38HM 91D39HM 91D40HM 91D41HM 91D42HM 91D43HM 91D44HM 91D45HM 91D46HM 91D47HM 91D48HM 91D49HM 91D50HM 91D51HM 91D52HM 91D53HM 91D54HM 91D55HM 91D56HM 91D57HM 91D58HM 91D59HM 91D60HM 91D61HM 91D62HM 91D63HM 91D64HM 91D65HM 91D66HM 91D67HM 91D68HM 91D69HM 91D70HM 91D71HM 91D72HM 91D73HM 91D74HM 91D75HM 91D76HM 91D77HM 91D78HM 91D79HM 91D80HM 91D81HM 91D82HM 91D83HM 91D84HM 91D85HM 91D86HM 91D87HM 91D88HM 91D89HM 91D90HM 91D91HM 91D92HM 91D93HM 91D94HM 91D95HM 91D96HM 91D97HM 91D98HM 91D99HM 91D001HN 91D01HN 91D02HN 91D03HN 91D04HN 91D05HN 91D06HN 91D07HN 91D08HN 91D09HN 91D10HN 91D11HN 91D12HN 91D13HN 91D14HN 91D15HN 91D16HN 91D17HN 91D18HN 91D19HN 91D20HN 91D21HN 91D22HN 91D23HN 91D24HN 91D25HN 91D26HN 91D27HN 91D28HN 91D29HN 91D30HN 91D31HN 91D32HN 91D33HN 91D34HN 91D35HN 91D36HN 91D37HN 91D38HN 91D39HN 91D40HN 91D41HN 91D42HN 91D43HN 91D44HN 91D45HN 91D46HN 91D47HN 91D48HN 91D49HN 91D50HN 91D51HN 91D52HN 91D53HN 91D54HN 91D55HN 91D56HN 91D57HN 91D58HN 91D59HN 91D60HN 91D61HN 91D62HN 91D63HN 91D64HN 91D65HN 91D66HN 91D67HN 91D68HN 91D69HN 91D70HN 91D71HN 91D72HN 91D73HN 91D74HN 91D75HN 91D76HN 91D77HN 91D78HN 91D79HN 91D80HN 91D81HN 91D82HN 91D83HN 91D84HN 91D85HN 91D86HN 91D87HN 91D88HN 91D89HN 91D90HN 91D91HN 91D92HN 91D93HN 91D94HN 91D95HN 91D96HN 91D97HN 91D98HN 91D99HN 91H001YM 91H01YM 91H02YM 91H03YM 91H04YM 91H05YM 91H06YM 91H07YM 91H08YM 91H09YM 91H10YM 91H11YM 91H12YM 91H13YM 91H14YM 91H15YM 91H16YM 91H17YM 91H18YM 91H19YM 91H20YM 91H21YM 91H22YM 91H23YM 91H24YM 91H25YM 91H26YM 91H27YM 91H28YM 91H29YM 91H30YM 91H31YM 91H32YM 91H33YM 91H34YM 91H35YM 91H36YM 91H37YM 91H38YM 91H39YM 91H40YM 91H41YM 91H42YM 91H43YM 91H44YM 91H45YM 91H46YM 91H47YM 91H48YM 91H49YM 91H50YM 91H51YM 91H52YM 91H53YM 91H54YM 91H55YM 91H56YM 91H57YM 91H58YM 91H59YM 91H60YM 91H61YM 91H62YM 91H63YM 91H64YM 91H65YM 91H66YM 91H67YM 91H68YM 91H69YM 91H70YM 91H71YM 91H72YM 91H73YM 91H74YM 91H75YM 91H76YM 91H77YM 91H78YM 91H79YM 91H80YM 91H81YM 91H82YM 91H83YM 91H84YM 91H85YM 91H86YM 91H87YM 91H88YM 91H89YM 91H90YM 91H91YM 91H92YM 91H93YM 91H94YM 91H95YM 91H96YM 91H97YM 91H98YM 91H99YM 91H001M 91H01M 91H02M 91H03M 91H04M 91H05M 91H06M 91H07M 91H08M 91H09M 91H10M 91H11M 91H12M 91H13M 91H14M 91H15M 91H16M 91H17M 91H18M 91H19M 91H20M 91H21M 91H22M 91H23M 91H24M 91H25M 91H26M 91H27M 91H28M 91H29M 91H30M 91H31M 91H32M 91H33M 91H34M 91H35M 91H36M 91H37M 91H38M 91H39M 91H40M 91H41M 91H42M 91H43M 91H44M 91H45M 91H46M 91H47M 91H48M 91H49M 91H50M 91H51M 91H52M 91H53M 91H54M 91H55M 91H56M 91H57M 91H58M 91H59M 91H60M 91H61M 91H62M 91H63M 91H64M 91H65M 91H66M 91H67M 91H68M 91H69M 91H70M 91H71M 91H72M 91H73M 91H74M 91H75M 91H76M 91H77M 91H78M 91H79M 91H80M 91H81M 91H82M 91H83M 91H84M 91H85M 91H86M 91H87M 91H88M 91H89M 91H90M 91H91M 91H92M 91H93M 91H94M 91H95M 91H96M 91H97M 91H98M 91H99M 91H001YN 91H01YN 91H02YN 91H03YN 91H04YN 91H05YN 91H06YN 91H07YN 91H08YN 91H09YN 91H10YN 91H11YN 91H12YN 91H13YN 91H14YN 91H15YN 91H16YN 91H17YN 91H18YN 91H19YN 91H20YN 91H21YN 91H22YN 91H23YN 91H24YN 91H25YN 91H26YN 91H27YN 91H28YN 91H29YN 91H30YN 91H31YN 91H32YN 91H33YN 91H34YN 91H35YN 91H36YN 91H37YN 91H38YN 91H39YN 91H40YN 91H41YN 91H42YN 91H43YN 91H44YN 91H45YN 91H46YN 91H47YN 91H48YN 91H49YN 91H50YN 91H51YN 91H52YN 91H53YN 91H54YN 91H55YN 91H56YN 91H57YN 91H58YN 91H59YN 91H60YN 91H61YN 91H62YN 91H63YN 91H64YN 91H65YN 91H66YN 91H67YN 91H68YN 91H69YN 91H70YN 91H71YN 91H72YN 91H73YN 91H74YN 91H75YN 91H76YN 91H77YN 91H78YN 91H79YN 91H80YN 91H81YN 91H82YN 91H83YN 91H84YN 91H85YN 91H86YN 91H87YN 91H88YN 91H89YN 91H90YN 91H91YN 91H92YN 91H93YN 91H94YN 91H95YN 91H96YN 91H97YN 91H98YN 91H99YN 91H001N 91H01N 91H02N 91H03N 91H04N 91H05N 91H06N 91H07N 91H08N 91H09N 91H10N 91H11N 91H12N 91H13N 91H14N 91H15N 91H16N 91H17N 91H18N 91H19N 91H20N 91H21N 91H22N 91H23N 91H24N 91H25N 91H26N 91H27N 91H28N 91H29N 91H30N 91H31N 91H32N 91H33N 91H34N 91H35N 91H36N 91H37N 91H38N 91H39N 91H40N 91H41N 91H42N 91H43N 91H44N 91H45N 91H46N 91H47N 91H48N 91H49N 91H50N 91H51N 91H52N 91H53N 91H54N 91H55N 91H56N 91H57N 91H58N 91H59N 91H60N 91H61N 91H62N 91H63N 91H64N 91H65N 91H66N 91H67N 91H68N 91H69N 91H70N 91H71N 91H72N 91H73N 91H74N 91H75N 91H76N 91H77N 91H78N 91H79N 91H80N 91H81N 91H82N 91H83N 91H84N 91H85N 91H86N 91H87N 91H88N 91H89N 91H90N 91H91N 91H92N 91H93N 91H94N 91H95N 91H96N 91H97N 91H98N 91H99N 91H001HM 91H01HM 91H02HM 91H03HM 91H04HM 91H05HM 91H06HM 91H07HM 91H08HM 91H09HM 91H10HM 91H11HM 91H12HM 91H13HM 91H14HM 91H15HM 91H16HM 91H17HM 91H18HM 91H19HM 91H20HM 91H21HM 91H22HM 91H23HM 91H24HM 91H25HM 91H26HM 91H27HM 91H28HM 91H29HM 91H30HM 91H31HM 91H32HM 91H33HM 91H34HM 91H35HM 91H36HM 91H37HM 91H38HM 91H39HM 91H40HM 91H41HM 91H42HM 91H43HM 91H44HM 91H45HM 91H46HM 91H47HM 91H48HM 91H49HM 91H50HM 91H51HM 91H52HM 91H53HM 91H54HM 91H55HM 91H56HM 91H57HM 91H58HM 91H59HM 91H60HM 91H61HM 91H62HM 91H63HM 91H64HM 91H65HM 91H66HM 91H67HM 91H68HM 91H69HM 91H70HM 91H71HM 91H72HM 91H73HM 91H74HM 91H75HM 91H76HM 91H77HM 91H78HM 91H79HM 91H80HM 91H81HM 91H82HM 91H83HM 91H84HM 91H85HM 91H86HM 91H87HM 91H88HM 91H89HM 91H90HM 91H91HM 91H92HM 91H93HM 91H94HM 91H95HM 91H96HM 91H97HM 91H98HM 91H99HM 91H001HN 91H01HN 91H02HN 91H03HN 91H04HN 91H05HN 91H06HN 91H07HN 91H08HN 91H09HN 91H10HN 91H11HN 91H12HN 91H13HN 91H14HN 91H15HN 91H16HN 91H17HN 91H18HN 91H19HN 91H20HN 91H21HN 91H22HN 91H23HN 91H24HN 91H25HN 91H26HN 91H27HN 91H28HN 91H29HN 91H30HN 91H31HN 91H32HN 91H33HN 91H34HN 91H35HN 91H36HN 91H37HN 91H38HN 91H39HN 91H40HN 91H41HN 91H42HN 91H43HN 91H44HN 91H45HN 91H46HN 91H47HN 91H48HN 91H49HN 91H50HN 91H51HN 91H52HN 91H53HN 91H54HN 91H55HN 91H56HN 91H57HN 91H58HN 91H59HN 91H60HN 91H61HN 91H62HN 91H63HN 91H64HN 91H65HN 91H66HN 91H67HN 91H68HN 91H69HN 91H70HN 91H71HN 91H72HN 91H73HN 91H74HN 91H75HN 91H76HN 91H77HN 91H78HN 91H79HN 91H80HN 91H81HN 91H82HN 91H83HN 91H84HN 91H85HN 91H86HN 91H87HN 91H88HN 91H89HN 91H90HN 91H91HN 91H92HN 91H93HN 91H94HN 91H95HN 91H96HN 91H97HN 91H98HN 91H99HN
TYPICAL SPECIFICATIONS
Pass Channel Wavelength
1530-1570nm
Reflective Channel Wavelength
915+/-10nm
Signal/Pump Insertion Loss
<=1.3dB (Single Stage), <=1.4dB (Dual Stage)
<=1.6dB (H Stage) /<=1.0dB
Signal Isolation
>=28dB (Single Stage), >=45dB (Dual Stage)
>=25dB (H Stage)
Signal Tap Ratio
1%, 2%, 5%, 10%, 20%, 30%, 40%, 50%
Signal/Pump Wavelength Isolation
>=25dB/>=12dB
Return Loss
>=45dB
PDL
<=0.2dB
Fiber Type (Signal&Tap)
SMF-28 Fiber or 10/130um DC Fiber
12/130um DC Fiber or 20/130um DC Fiber
25/250um DC Fiber or 25/300um DC Fiber
Fiber Type (Common&Pump)
Same Fiber, HI780 Fiber or HI1060 Fiber
Max. Average Power
300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse
100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature
0~50degreeC

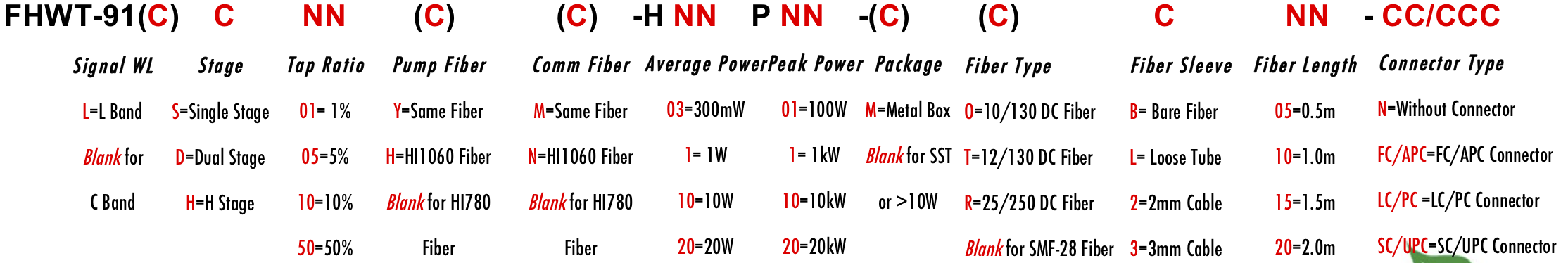

ORDERING INFORMATION/PART NUMBER(PN)
Standard specifications and
design parameters
Serial
Reference
Part Number (PN)*:
The change on PN will save a new product.
Product Description:
Comment/Other Information:
