830/1950nm High Power PM WDM/Isolator/Tap Hybrid

DESCRIPTION
Haphit provides fiber based passive components. The WDM/Isolator/Tap Hybrid is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation, high Signal Isolation, high Extinction Ratio and various Tap Ratio. The WDM/Isolator/Tap Hybrid will combine or split the signal light and pump light, while at the same time force the signal to transmit at single direction and tap the signal for monitoring purpose. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPHT 830nm 820nm 840nm 835nm 825nm 1950nm 1940nm 1960nm 1930nm 1970nm 1955nm 1945nm 1935nm 1965nm PM WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador PM1550 LMA PM1950 PM850 PM780HP PM2000 8/125um 10/125um 10/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  Watt Watts HP CW Continuous Wave FPHT 830nm 820nm 840nm 835nm 825nm 1950nm 1940nm 1960nm 1930nm 1970nm 1955nm 1945nm 1935nm 1965nm PM WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador PM1550 LMA PM1950 PM850 PM780HP PM2000 8/125um 10/125um 10/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W Watt Watts HP CW Continuous Wave FPHT 830nm 820nm 840nm 835nm 825nm 1950nm 1940nm 1960nm 1930nm 1970nm 1955nm 1945nm 1935nm 1965nm PM WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador PM1550 LMA PM1950 PM850 PM780HP PM2000 8/125um 10/125um 10/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W Watt Watts HP CW Continuous Wave 8319 YP YS HP HS PP PS SP SS SS001 SS01 SS02 SS03 SS04 SS05 SS06 SS07 SS08 SS09 SS10 SS11 SS12 SS13 SS14 SS15 SS16 SS17 SS18 SS19 SS20 SS21 SS22 SS23 SS24 SS25 SS26 SS27 SS28 SS29 SS30 SS31 SS32 SS33 SS34 SS35 SS36 SS37 SS38 SS39 SS40 SS41 SS42 SS43 SS44 SS45 SS46 SS47 SS48 SS49 SS50 SS51 SS52 SS53 SS54 SS55 SS56 SS57 SS58 SS59 SS60 SS61 SS62 SS63 SS64 SS65 SS66 SS67 SS68 SS69 SS70 SS71 SS72 SS73 SS74 SS75 SS76 SS77 SS78 SS79 SS80 SS81 SS82 SS83 SS84 SS85 SS86 SS87 SS88 SS89 SS90 SS91 SS92 SS93 SS94 SS95 SS96 SS97 SS98 SS99 SF001 SF01 SF02 SF03 SF04 SF05 SF06 SF07 SF08 SF09 SF10 SF11 SF12 SF13 SF14 SF15 SF16 SF17 SF18 SF19 SF20 SF21 SF22 SF23 SF24 SF25 SF26 SF27 SF28 SF29 SF30 SF31 SF32 SF33 SF34 SF35 SF36 SF37 SF38 SF39 SF40 SF41 SF42 SF43 SF44 SF45 SF46 SF47 SF48 SF49 SF50 SF51 SF52 SF53 SF54 SF55 SF56 SF57 SF58 SF59 SF60 SF61 SF62 SF63 SF64 SF65 SF66 SF67 SF68 SF69 SF70 SF71 SF72 SF73 SF74 SF75 SF76 SF77 SF78 SF79 SF80 SF81 SF82 SF83 SF84 SF85 SF86 SF87 SF88 SF89 SF90 SF91 SF92 SF93 SF94 SF95 SF96 SF97 SF98 SF99 SB001 SB01 SB02 SB03 SB04 SB05 SB06 SB07 SB08 SB09 SB10 SB11 SB12 SB13 SB14 SB15 SB16 SB17 SB18 SB19 SB20 SB21 SB22 SB23 SB24 SB25 SB26 SB27 SB28 SB29 SB30 SB31 SB32 SB33 SB34 SB35 SB36 SB37 SB38 SB39 SB40 SB41 SB42 SB43 SB44 SB45 SB46 SB47 SB48 SB49 SB50 SB51 SB52 SB53 SB54 SB55 SB56 SB57 SB58 SB59 SB60 SB61 SB62 SB63 SB64 SB65 SB66 SB67 SB68 SB69 SB70 SB71 SB72 SB73 SB74 SB75 SB76 SB77 SB78 SB79 SB80 SB81 SB82 SB83 SB84 SB85 SB86 SB87 SB88 SB89 SB90 SB91 SB92 SB93 SB94 SB95 SB96 SB97 SB98 SB99 DS001 DS01 DS02 DS03 DS04 DS05 DS06 DS07 DS08 DS09 DS10 DS11 DS12 DS13 DS14 DS15 DS16 DS17 DS18 DS19 DS20 DS21 DS22 DS23 DS24 DS25 DS26 DS27 DS28 DS29 DS30 DS31 DS32 DS33 DS34 DS35 DS36 DS37 DS38 DS39 DS40 DS41 DS42 DS43 DS44 DS45 DS46 DS47 DS48 DS49 DS50 DS51 DS52 DS53 DS54 DS55 DS56 DS57 DS58 DS59 DS60 DS61 DS62 DS63 DS64 DS65 DS66 DS67 DS68 DS69 DS70 DS71 DS72 DS73 DS74 DS75 DS76 DS77 DS78 DS79 DS80 DS81 DS82 DS83 DS84 DS85 DS86 DS87 DS88 DS89 DS90 DS91 DS92 DS93 DS94 DS95 DS96 DS97 DS98 DS99 SF001 DF01 DF02 DF03 DF04 DF05 DF06 DF07 DF08 DF09 DF10 DF11 DF12 DF13 DF14 DF15 DF16 DF17 DF18 DF19 DF20 DF21 DF22 DF23 DF24 DF25 DF26 DF27 DF28 DF29 DF30 DF31 DF32 DF33 DF34 DF35 DF36 DF37 DF38 DF39 DF40 DF41 DF42 DF43 DF44 DF45 DF46 DF47 DF48 DF49 DF50 DF51 DF52 DF53 DF54 DF55 DF56 DF57 DF58 DF59 DF60 DF61 DF62 DF63 DF64 DF65 DF66 DF67 DF68 DF69 DF70 DF71 DF72 DF73 DF74 DF75 DF76 DF77 DF78 DF79 DF80 DF81 DF82 DF83 DF84 DF85 DF86 DF87 DF88 DF89 DF90 DF91 DF92 DF93 DF94 DF95 DF96 DF97 DF98 DF99 SB001 DB01 DB02 DB03 DB04 DB05 DB06 DB07 DB08 DB09 DB10 DB11 DB12 DB13 DB14 DB15 DB16 DB17 DB18 DB19 DB20 DB21 DB22 DB23 DB24 DB25 DB26 DB27 DB28 DB29 DB30 DB31 DB32 DB33 DB34 DB35 DB36 DB37 DB38 DB39 DB40 DB41 DB42 DB43 DB44 DB45 DB46 DB47 DB48 DB49 DB50 DB51 DB52 DB53 DB54 DB55 DB56 DB57 DB58 DB59 DB60 DB61 DB62 DB63 DB64 DB65 DB66 DB67 DB68 DB69 DB70 DB71 DB72 DB73 DB74 DB75 DB76 DB77 DB78 DB79 DB80 DB81 DB82 DB83 DB84 DB85 DB86 DB87 DB88 DB89 DB90 DB91 DB92 DB93 DB94 DB95 DB96 DB97 DB98 DB99 HS001 HS01 HS02 HS03 HS04 HS05 HS06 HS07 HS08 HS09 HS10 HS11 HS12 HS13 HS14 HS15 HS16 HS17 HS18 HS19 HS20 HS21 HS22 HS23 HS24 HS25 HS26 HS27 HS28 HS29 HS30 HS31 HS32 HS33 HS34 HS35 HS36 HS37 HS38 HS39 HS40 HS41 HS42 HS43 HS44 HS45 HS46 HS47 HS48 HS49 HS50 HS51 HS52 HS53 HS54 HS55 HS56 HS57 HS58 HS59 HS60 HS61 HS62 HS63 HS64 HS65 HS66 HS67 HS68 HS69 HS70 HS71 HS72 HS73 HS74 HS75 HS76 HS77 HS78 HS79 HS80 HS81 HS82 HS83 HS84 HS85 HS86 HS87 HS88 HS89 HS90 HS91 HS92 HS93 HS94 HS95 HS96 HS97 HS98 HS99 SF001 HF01 HF02 HF03 HF04 HF05 HF06 HF07 HF08 HF09 HF10 HF11 HF12 HF13 HF14 HF15 HF16 HF17 HF18 HF19 HF20 HF21 HF22 HF23 HF24 HF25 HF26 HF27 HF28 HF29 HF30 HF31 HF32 HF33 HF34 HF35 HF36 HF37 HF38 HF39 HF40 HF41 HF42 HF43 HF44 HF45 HF46 HF47 HF48 HF49 HF50 HF51 HF52 HF53 HF54 HF55 HF56 HF57 HF58 HF59 HF60 HF61 HF62 HF63 HF64 HF65 HF66 HF67 HF68 HF69 HF70 HF71 HF72 HF73 HF74 HF75 HF76 HF77 HF78 HF79 HF80 HF81 HF82 HF83 HF84 HF85 HF86 HF87 HF88 HF89 HF90 HF91 HF92 HF93 HF94 HF95 HF96 HF97 HF98 HF99 SB001 HB01 HB02 HB03 HB04 HB05 HB06 HB07 HB08 HB09 HB10 HB11 HB12 HB13 HB14 HB15 HB16 HB17 HB18 HB19 HB20 HB21 HB22 HB23 HB24 HB25 HB26 HB27 HB28 HB29 HB30 HB31 HB32 HB33 HB34 HB35 HB36 HB37 HB38 HB39 HB40 HB41 HB42 HB43 HB44 HB45 HB46 HB47 HB48 HB49 HB50 HB51 HB52 HB53 HB54 HB55 HB56 HB57 HB58 HB59 HB60 HB61 HB62 HB63 HB64 HB65 HB66 HB67 HB68 HB69 HB70 HB71 HB72 HB73 HB74 HB75 HB76 HB77 HB78 HB79 HB80 HB81 HB82 HB83 HB84 HB85 HB86 HB87 HB88 HB89 HB90 HB91 HB92 HB93 HB94 HB95 HB96 HB97 HB98 HB99
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1950+/-20nm
Reflective Channel Wavelength 830+/-10nm
Signal/Pump Insertion Loss <=1.8dB (Single Stage), <=2.2dB (Dual Stage)
<=2.2dB (H Stage) /<=1.3dB
Signal Isolation >=10dB (Single Stage), >=25dB (Dual Stage)
>=25dB (H Stage)
Signal Tap Ratio 1%, 2%, 5%, 10%, 20%, 30%, 40%, 50%
Signal/Pump Wavelength Isolation >=25dB/>=12dB
Return Loss >=45dB
Extinction Ratio >=18dB
Fiber Type (Common&Signal) PM1550 Fiber or PM1950 Fiber
10/130um PMDC Fiber or 25/250um PMDC Fiber
Fiber Type (Pump&Tap) Tap: Same Fiber or Corr. SM Fiber
Pump: Same Fiber or Corr. SM Fiber
PM850 Fiber, PM780-HP Fiber or HI780 Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W
Operating Temperature 0~50degreeC

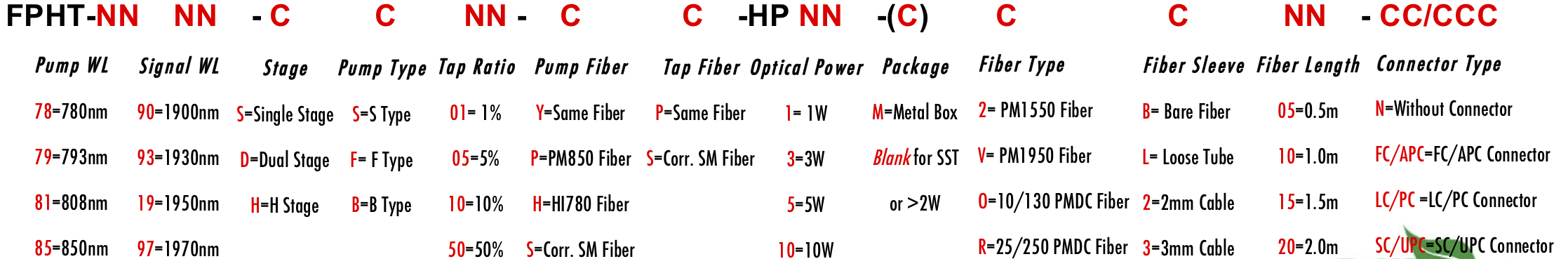

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
