980/1120nm WDM/Isolator/Tap Hybrid for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The WDM/Isolator/Tap Hybrid is made by micro-optics package technology with fiber in and fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation, high Signal Isolation and various Tap Ratio. The WDM/Isolator/Tap Hybrid will combine or split the signal light and pump light, while at the same time force the signal to transmit at single direction and tap the signal for monitoring purpose. The pulse power version is specially designed to withstand high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FHWT 980nm 975nm 970nm985nm 990nm 1120nm 1110nm 1130nm 1115nm 1125nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador HI1060 HI1060XP 980HP 980XP LMA 6/125um 10/125um 10/130um 15/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad for Pulse Power 300mW 500mW 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FHWT 980nm 975nm 970nm985nm 990nm 1120nm 1110nm 1130nm 1115nm 1125nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador HI1060 HI1060XP 980HP 980XP LMA 6/125um 10/125um 10/130um 15/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad for Pulse Power 300mW 500mW 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FHWT 980nm 975nm 970nm985nm 990nm 1120nm 1110nm 1130nm 1115nm 1125nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador HI1060 HI1060XP 980HP 980XP LMA 6/125um 10/125um 10/130um 15/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad for Pulse Power 300mW 500mW 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 9812 S001 S01 S02 S03 S04 S05 S06 S07 S08 S09 S10 S11 S12 S13 S14 S15 S16 S17 S18 S19 S20 S21 S22 S23 S24 S25 S26 S27 S28 S29 S30 S31 S32 S33 S34 S35 S36 S37 S38 S39 S40 S41 S42 S43 S44 S45 S46 S47 S48 S49 S50 S51 S52 S53 S54 S55 S56 S57 S58 S59 S60 S61 S62 S63 S64 S65 S66 S67 S68 S69 S70 S71 S72 S73 S74 S75 S76 S77 S78 S79 S80 S81 S82 S83 S84 S85 S86 S87 S88 S89 S90 S91 S92 S93 S94 S95 S96 S97 S98 S99 D001 D01 D02 D03 D04 D05 D06 D07 D08 D09 D10 D11 D12 D13 D14 D15 D16 D17 D18 D19 D20 D21 D22 D23 D24 D25 D26 D27 D28 D29 D30 D31 D32 D33 D34 D35 D36 D37 D38 D39 D40 D41 D42 D43 D44 D45 D46 D47 D48 D49 D50 D51 D52 D53 D54 D55 D56 D57 D58 D59 D60 D61 D62 D63 D64 D65 D66 D67 D68 D69 D70 D71 D72 D73 D74 D75 D76 D77 D78 D79 D80 D81 D82 D83 D84 D85 D86 D87 D88 D89 D90 D91 D92 D93 D94 D95 D96 D97 D98 D99 05 1 2 3 4 5 6 7 8 9 10
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1120+/-10nm
Reflective Channel Wavelength 980+/-10nm
Signal/Pump Insertion Loss <=2.7dB (Single Stage), <=4.2dB (Dual Stage) /<=0.8dB
Signal Isolation >=20dB (Single Stage), >=40dB (Dual Stage)
Signal Tap Ratio 1%, 2%, 5%, 10%, 20%, 30%, 40%, 50%
Signal/Pump Wavelength Isolation >=25dB/>=12dB
Return Loss >=45dB
PDL <=0.3dB
Fiber Type HI1060 Fiber or 10/125um SC Fiber
10/125um DC Fiber or 15/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
Max. Signal Average Power 300mW
Max. Pump Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

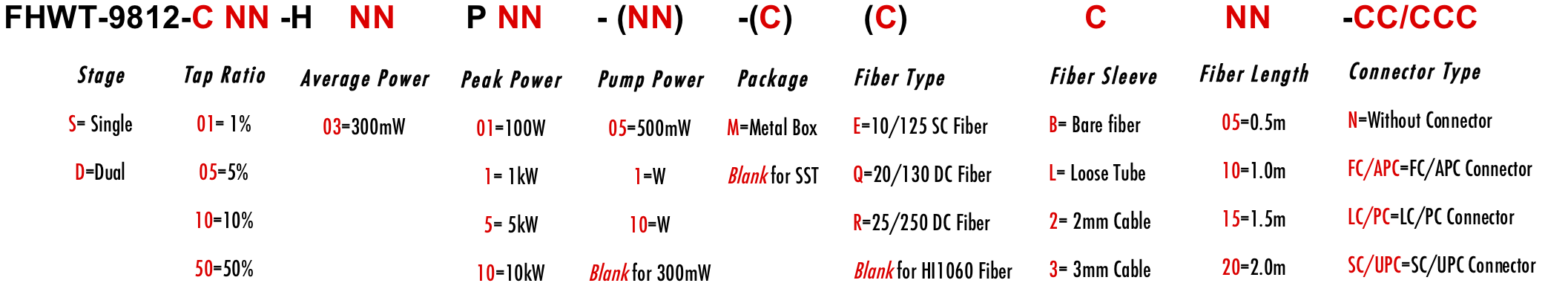

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
