915/1070nm High Power PM WDM/Isolator/Tap Hybrid

DESCRIPTION
Haphit provides fiber based passive components. The WDM/Isolator/Tap Hybrid is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation, high Signal Isolation, high Extinction Ratio and various Tap Ratio. The WDM/Isolator/Tap Hybrid will combine or split the signal light and pump light, while at the same time force the signal to transmit at single direction and tap the signal for monitoring purpose. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPHT 915nm 900nm 930nm 910nm 905nm 920nm 925nm 1070nm 1060nm 1080nm 1075nm 1065nm PM WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador PM980 PM980XP PM850 PM780HP 5/125um LMA 6/125um 10/125um 10/130um 15/130um 20/125um 20/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave FPHT 915nm 900nm 930nm 910nm 905nm 920nm 925nm 1070nm 1060nm 1080nm 1075nm 1065nm PM WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador PM980 PM980XP PM850 PM780HP 5/125um LMA 6/125um 10/125um 10/130um 15/130um 20/125um 20/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave FPHT 915nm 900nm 930nm 910nm 905nm 920nm 925nm 1070nm 1060nm 1080nm 1075nm 1065nm PM WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador PM980 PM980XP PM850 PM780HP 5/125um LMA 6/125um 10/125um 10/130um 15/130um 20/125um 20/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave 9107 S001YP S01YP S02YP S03YP S04YP S05YP S06YP S07YP S08YP S09YP S10YP S11YP S12YP S13YP S14YP S15YP S16YP S17YP S18YP S19YP S20YP S21YP S22YP S23YP S24YP S25YP S26YP S27YP S28YP S29YP S30YP S31YP S32YP S33YP S34YP S35YP S36YP S37YP S38YP S39YP S40YP S41YP S42YP S43YP S44YP S45YP S46YP S47YP S48YP S49YP S50YP S51YP S52YP S53YP S54YP S55YP S56YP S57YP S58YP S59YP S60YP S61YP S62YP S63YP S64YP S65YP S66YP S67YP S68YP S69YP S70YP S71YP S72YP S73YP S74YP S75YP S76YP S77YP S78YP S79YP S80YP S81YP S82YP S83YP S84YP S85YP S86YP S87YP S88YP S89YP S90YP S91YP S92YP S93YP S94YP S95YP S96YP S97YP S98YP S99YP F001YP F01YP F02YP F03YP F04YP F05YP F06YP F07YP F08YP F09YP F10YP F11YP F12YP F13YP F14YP F15YP F16YP F17YP F18YP F19YP F20YP F21YP F22YP F23YP F24YP F25YP F26YP F27YP F28YP F29YP F30YP F31YP F32YP F33YP F34YP F35YP F36YP F37YP F38YP F39YP F40YP F41YP F42YP F43YP F44YP F45YP F46YP F47YP F48YP F49YP F50YP F51YP F52YP F53YP F54YP F55YP F56YP F57YP F58YP F59YP F60YP F61YP F62YP F63YP F64YP F65YP F66YP F67YP F68YP F69YP F70YP F71YP F72YP F73YP F74YP F75YP F76YP F77YP F78YP F79YP F80YP F81YP F82YP F83YP F84YP F85YP F86YP F87YP F88YP F89YP F90YP F91YP F92YP F93YP F94YP F95YP F96YP F97YP F98YP F99YP B001YP B01YP B02YP B03YP B04YP B05YP B06YP B07YP B08YP B09YP B10YP B11YP B12YP B13YP B14YP B15YP B16YP B17YP B18YP B19YP B20YP B21YP B22YP B23YP B24YP B25YP B26YP B27YP B28YP B29YP B30YP B31YP B32YP B33YP B34YP B35YP B36YP B37YP B38YP B39YP B40YP B41YP B42YP B43YP B44YP B45YP B46YP B47YP B48YP B49YP B50YP B51YP B52YP B53YP B54YP B55YP B56YP B57YP B58YP B59YP B60YP B61YP B62YP B63YP B64YP B65YP B66YP B67YP B68YP B69YP B70YP B71YP B72YP B73YP B74YP B75YP B76YP B77YP B78YP B79YP B80YP B81YP B82YP B83YP B84YP B85YP B86YP B87YP B88YP B89YP B90YP B91YP B92YP B93YP B94YP B95YP B96YP B97YP B98YP B99YP S001YS S01YS S02YS S03YS S04YS S05YS S06YS S07YS S08YS S09YS S10YS S11YS S12YS S13YS S14YS S15YS S16YS S17YS S18YS S19YS S20YS S21YS S22YS S23YS S24YS S25YS S26YS S27YS S28YS S29YS S30YS S31YS S32YS S33YS S34YS S35YS S36YS S37YS S38YS S39YS S40YS S41YS S42YS S43YS S44YS S45YS S46YS S47YS S48YS S49YS S50YS S51YS S52YS S53YS S54YS S55YS S56YS S57YS S58YS S59YS S60YS S61YS S62YS S63YS S64YS S65YS S66YS S67YS S68YS S69YS S70YS S71YS S72YS S73YS S74YS S75YS S76YS S77YS S78YS S79YS S80YS S81YS S82YS S83YS S84YS S85YS S86YS S87YS S88YS S89YS S90YS S91YS S92YS S93YS S94YS S95YS S96YS S97YS S98YS S99YS F001YS F01YS F02YS F03YS F04YS F05YS F06YS F07YS F08YS F09YS F10YS F11YS F12YS F13YS F14YS F15YS F16YS F17YS F18YS F19YS F20YS F21YS F22YS F23YS F24YS F25YS F26YS F27YS F28YS F29YS F30YS F31YS F32YS F33YS F34YS F35YS F36YS F37YS F38YS F39YS F40YS F41YS F42YS F43YS F44YS F45YS F46YS F47YS F48YS F49YS F50YS F51YS F52YS F53YS F54YS F55YS F56YS F57YS F58YS F59YS F60YS F61YS F62YS F63YS F64YS F65YS F66YS F67YS F68YS F69YS F70YS F71YS F72YS F73YS F74YS F75YS F76YS F77YS F78YS F79YS F80YS F81YS F82YS F83YS F84YS F85YS F86YS F87YS F88YS F89YS F90YS F91YS F92YS F93YS F94YS F95YS F96YS F97YS F98YS F99YS B001YS B01YS B02YS B03YS B04YS B05YS B06YS B07YS B08YS B09YS B10YS B11YS B12YS B13YS B14YS B15YS B16YS B17YS B18YS B19YS B20YS B21YS B22YS B23YS B24YS B25YS B26YS B27YS B28YS B29YS B30YS B31YS B32YS B33YS B34YS B35YS B36YS B37YS B38YS B39YS B40YS B41YS B42YS B43YS B44YS B45YS B46YS B47YS B48YS B49YS B50YS B51YS B52YS B53YS B54YS B55YS B56YS B57YS B58YS B59YS B60YS B61YS B62YS B63YS B64YS B65YS B66YS B67YS B68YS B69YS B70YS B71YS B72YS B73YS B74YS B75YS B76YS B77YS B78YS B79YS B80YS B81YS B82YS B83YS B84YS B85YS B86YS B87YS B88YS B89YS B90YS B91YS B92YS B93YS B94YS B95YS B96YS B97YS B98YS B99YS S001PP S01PP S02PP S03PP S04PP S05PP S06PP S07PP S08PP S09PP S10PP S11PP S12PP S13PP S14PP S15PP S16PP S17PP S18PP S19PP S20PP S21PP S22PP S23PP S24PP S25PP S26PP S27PP S28PP S29PP S30PP S31PP S32PP S33PP S34PP S35PP S36PP S37PP S38PP S39PP S40PP S41PP S42PP S43PP S44PP S45PP S46PP S47PP S48PP S49PP S50PP S51PP S52PP S53PP S54PP S55PP S56PP S57PP S58PP S59PP S60PP S61PP S62PP S63PP S64PP S65PP S66PP S67PP S68PP S69PP S70PP S71PP S72PP S73PP S74PP S75PP S76PP S77PP S78PP S79PP S80PP S81PP S82PP S83PP S84PP S85PP S86PP S87PP S88PP S89PP S90PP S91PP S92PP S93PP S94PP S95PP S96PP S97PP S98PP S99PP F001PP F01PP F02PP F03PP F04PP F05PP F06PP F07PP F08PP F09PP F10PP F11PP F12PP F13PP F14PP F15PP F16PP F17PP F18PP F19PP F20PP F21PP F22PP F23PP F24PP F25PP F26PP F27PP F28PP F29PP F30PP F31PP F32PP F33PP F34PP F35PP F36PP F37PP F38PP F39PP F40PP F41PP F42PP F43PP F44PP F45PP F46PP F47PP F48PP F49PP F50PP F51PP F52PP F53PP F54PP F55PP F56PP F57PP F58PP F59PP F60PP F61PP F62PP F63PP F64PP F65PP F66PP F67PP F68PP F69PP F70PP F71PP F72PP F73PP F74PP F75PP F76PP F77PP F78PP F79PP F80PP F81PP F82PP F83PP F84PP F85PP F86PP F87PP F88PP F89PP F90PP F91PP F92PP F93PP F94PP F95PP F96PP F97PP F98PP F99PP B001PP B01PP B02PP B03PP B04PP B05PP B06PP B07PP B08PP B09PP B10PP B11PP B12PP B13PP B14PP B15PP B16PP B17PP B18PP B19PP B20PP B21PP B22PP B23PP B24PP B25PP B26PP B27PP B28PP B29PP B30PP B31PP B32PP B33PP B34PP B35PP B36PP B37PP B38PP B39PP B40PP B41PP B42PP B43PP B44PP B45PP B46PP B47PP B48PP B49PP B50PP B51PP B52PP B53PP B54PP B55PP B56PP B57PP B58PP B59PP B60PP B61PP B62PP B63PP B64PP B65PP B66PP B67PP B68PP B69PP B70PP B71PP B72PP B73PP B74PP B75PP B76PP B77PP B78PP B79PP B80PP B81PP B82PP B83PP B84PP B85PP B86PP B87PP B88PP B89PP B90PP B91PP B92PP B93PP B94PP B95PP B96PP B97PP B98PP B99PP S001PS S01PS S02PS S03PS S04PS S05PS S06PS S07PS S08PS S09PS S10PS S11PS S12PS S13PS S14PS S15PS S16PS S17PS S18PS S19PS S20PS S21PS S22PS S23PS S24PS S25PS S26PS S27PS S28PS S29PS S30PS S31PS S32PS S33PS S34PS S35PS S36PS S37PS S38PS S39PS S40PS S41PS S42PS S43PS S44PS S45PS S46PS S47PS S48PS S49PS S50PS S51PS S52PS S53PS S54PS S55PS S56PS S57PS S58PS S59PS S60PS S61PS S62PS S63PS S64PS S65PS S66PS S67PS S68PS S69PS S70PS S71PS S72PS S73PS S74PS S75PS S76PS S77PS S78PS S79PS S80PS S81PS S82PS S83PS S84PS S85PS S86PS S87PS S88PS S89PS S90PS S91PS S92PS S93PS S94PS S95PS S96PS S97PS S98PS S99PS F001PS F01PS F02PS F03PS F04PS F05PS F06PS F07PS F08PS F09PS F10PS F11PS F12PS F13PS F14PS F15PS F16PS F17PS F18PS F19PS F20PS F21PS F22PS F23PS F24PS F25PS F26PS F27PS F28PS F29PS F30PS F31PS F32PS F33PS F34PS F35PS F36PS F37PS F38PS F39PS F40PS F41PS F42PS F43PS F44PS F45PS F46PS F47PS F48PS F49PS F50PS F51PS F52PS F53PS F54PS F55PS F56PS F57PS F58PS F59PS F60PS F61PS F62PS F63PS F64PS F65PS F66PS F67PS F68PS F69PS F70PS F71PS F72PS F73PS F74PS F75PS F76PS F77PS F78PS F79PS F80PS F81PS F82PS F83PS F84PS F85PS F86PS F87PS F88PS F89PS F90PS F91PS F92PS F93PS F94PS F95PS F96PS F97PS F98PS F99PS B001PS B01PS B02PS B03PS B04PS B05PS B06PS B07PS B08PS B09PS B10PS B11PS B12PS B13PS B14PS B15PS B16PS B17PS B18PS B19PS B20PS B21PS B22PS B23PS B24PS B25PS B26PS B27PS B28PS B29PS B30PS B31PS B32PS B33PS B34PS B35PS B36PS B37PS B38PS B39PS B40PS B41PS B42PS B43PS B44PS B45PS B46PS B47PS B48PS B49PS B50PS B51PS B52PS B53PS B54PS B55PS B56PS B57PS B58PS B59PS B60PS B61PS B62PS B63PS B64PS B65PS B66PS B67PS B68PS B69PS B70PS B71PS B72PS B73PS B74PS B75PS B76PS B77PS B78PS B79PS B80PS B81PS B82PS B83PS B84PS B85PS B86PS B87PS B88PS B89PS B90PS B91PS B92PS B93PS B94PS B95PS B96PS B97PS B98PS B99PS S001HP S01HP S02HP S03HP S04HP S05HP S06HP S07HP S08HP S09HP S10HP S11HP S12HP S13HP S14HP S15HP S16HP S17HP S18HP S19HP S20HP S21HP S22HP S23HP S24HP S25HP S26HP S27HP S28HP S29HP S30HP S31HP S32HP S33HP S34HP S35HP S36HP S37HP S38HP S39HP S40HP S41HP S42HP S43HP S44HP S45HP S46HP S47HP S48HP S49HP S50HP S51HP S52HP S53HP S54HP S55HP S56HP S57HP S58HP S59HP S60HP S61HP S62HP S63HP S64HP S65HP S66HP S67HP S68HP S69HP S70HP S71HP S72HP S73HP S74HP S75HP S76HP S77HP S78HP S79HP S80HP S81HP S82HP S83HP S84HP S85HP S86HP S87HP S88HP S89HP S90HP S91HP S92HP S93HP S94HP S95HP S96HP S97HP S98HP S99HP F001HP F01HP F02HP F03HP F04HP F05HP F06HP F07HP F08HP F09HP F10HP F11HP F12HP F13HP F14HP F15HP F16HP F17HP F18HP F19HP F20HP F21HP F22HP F23HP F24HP F25HP F26HP F27HP F28HP F29HP F30HP F31HP F32HP F33HP F34HP F35HP F36HP F37HP F38HP F39HP F40HP F41HP F42HP F43HP F44HP F45HP F46HP F47HP F48HP F49HP F50HP F51HP F52HP F53HP F54HP F55HP F56HP F57HP F58HP F59HP F60HP F61HP F62HP F63HP F64HP F65HP F66HP F67HP F68HP F69HP F70HP F71HP F72HP F73HP F74HP F75HP F76HP F77HP F78HP F79HP F80HP F81HP F82HP F83HP F84HP F85HP F86HP F87HP F88HP F89HP F90HP F91HP F92HP F93HP F94HP F95HP F96HP F97HP F98HP F99HP B001HP B01HP B02HP B03HP B04HP B05HP B06HP B07HP B08HP B09HP B10HP B11HP B12HP B13HP B14HP B15HP B16HP B17HP B18HP B19HP B20HP B21HP B22HP B23HP B24HP B25HP B26HP B27HP B28HP B29HP B30HP B31HP B32HP B33HP B34HP B35HP B36HP B37HP B38HP B39HP B40HP B41HP B42HP B43HP B44HP B45HP B46HP B47HP B48HP B49HP B50HP B51HP B52HP B53HP B54HP B55HP B56HP B57HP B58HP B59HP B60HP B61HP B62HP B63HP B64HP B65HP B66HP B67HP B68HP B69HP B70HP B71HP B72HP B73HP B74HP B75HP B76HP B77HP B78HP B79HP B80HP B81HP B82HP B83HP B84HP B85HP B86HP B87HP B88HP B89HP B90HP B91HP B92HP B93HP B94HP B95HP B96HP B97HP B98HP B99HP S001HS S01HS S02HS S03HS S04HS S05HS S06HS S07HS S08HS S09HS S10HS S11HS S12HS S13HS S14HS S15HS S16HS S17HS S18HS S19HS S20HS S21HS S22HS S23HS S24HS S25HS S26HS S27HS S28HS S29HS S30HS S31HS S32HS S33HS S34HS S35HS S36HS S37HS S38HS S39HS S40HS S41HS S42HS S43HS S44HS S45HS S46HS S47HS S48HS S49HS S50HS S51HS S52HS S53HS S54HS S55HS S56HS S57HS S58HS S59HS S60HS S61HS S62HS S63HS S64HS S65HS S66HS S67HS S68HS S69HS S70HS S71HS S72HS S73HS S74HS S75HS S76HS S77HS S78HS S79HS S80HS S81HS S82HS S83HS S84HS S85HS S86HS S87HS S88HS S89HS S90HS S91HS S92HS S93HS S94HS S95HS S96HS S97HS S98HS S99HS F001HS F01HS F02HS F03HS F04HS F05HS F06HS F07HS F08HS F09HS F10HS F11HS F12HS F13HS F14HS F15HS F16HS F17HS F18HS F19HS F20HS F21HS F22HS F23HS F24HS F25HS F26HS F27HS F28HS F29HS F30HS F31HS F32HS F33HS F34HS F35HS F36HS F37HS F38HS F39HS F40HS F41HS F42HS F43HS F44HS F45HS F46HS F47HS F48HS F49HS F50HS F51HS F52HS F53HS F54HS F55HS F56HS F57HS F58HS F59HS F60HS F61HS F62HS F63HS F64HS F65HS F66HS F67HS F68HS F69HS F70HS F71HS F72HS F73HS F74HS F75HS F76HS F77HS F78HS F79HS F80HS F81HS F82HS F83HS F84HS F85HS F86HS F87HS F88HS F89HS F90HS F91HS F92HS F93HS F94HS F95HS F96HS F97HS F98HS F99HS B001HS B01HS B02HS B03HS B04HS B05HS B06HS B07HS B08HS B09HS B10HS B11HS B12HS B13HS B14HS B15HS B16HS B17HS B18HS B19HS B20HS B21HS B22HS B23HS B24HS B25HS B26HS B27HS B28HS B29HS B30HS B31HS B32HS B33HS B34HS B35HS B36HS B37HS B38HS B39HS B40HS B41HS B42HS B43HS B44HS B45HS B46HS B47HS B48HS B49HS B50HS B51HS B52HS B53HS B54HS B55HS B56HS B57HS B58HS B59HS B60HS B61HS B62HS B63HS B64HS B65HS B66HS B67HS B68HS B69HS B70HS B71HS B72HS B73HS B74HS B75HS B76HS B77HS B78HS B79HS B80HS B81HS B82HS B83HS B84HS B85HS B86HS B87HS B88HS B89HS B90HS B91HS B92HS B93HS B94HS B95HS B96HS B97HS B98HS B99HS S001SP S01SP S02SP S03SP S04SP S05SP S06SP S07SP S08SP S09SP S10SP S11SP S12SP S13SP S14SP S15SP S16SP S17SP S18SP S19SP S20SP S21SP S22SP S23SP S24SP S25SP S26SP S27SP S28SP S29SP S30SP S31SP S32SP S33SP S34SP S35SP S36SP S37SP S38SP S39SP S40SP S41SP S42SP S43SP S44SP S45SP S46SP S47SP S48SP S49SP S50SP S51SP S52SP S53SP S54SP S55SP S56SP S57SP S58SP S59SP S60SP S61SP S62SP S63SP S64SP S65SP S66SP S67SP S68SP S69SP S70SP S71SP S72SP S73SP S74SP S75SP S76SP S77SP S78SP S79SP S80SP S81SP S82SP S83SP S84SP S85SP S86SP S87SP S88SP S89SP S90SP S91SP S92SP S93SP S94SP S95SP S96SP S97SP S98SP S99SP F001SP F01SP F02SP F03SP F04SP F05SP F06SP F07SP F08SP F09SP F10SP F11SP F12SP F13SP F14SP F15SP F16SP F17SP F18SP F19SP F20SP F21SP F22SP F23SP F24SP F25SP F26SP F27SP F28SP F29SP F30SP F31SP F32SP F33SP F34SP F35SP F36SP F37SP F38SP F39SP F40SP F41SP F42SP F43SP F44SP F45SP F46SP F47SP F48SP F49SP F50SP F51SP F52SP F53SP F54SP F55SP F56SP F57SP F58SP F59SP F60SP F61SP F62SP F63SP F64SP F65SP F66SP F67SP F68SP F69SP F70SP F71SP F72SP F73SP F74SP F75SP F76SP F77SP F78SP F79SP F80SP F81SP F82SP F83SP F84SP F85SP F86SP F87SP F88SP F89SP F90SP F91SP F92SP F93SP F94SP F95SP F96SP F97SP F98SP F99SP B001SP B01SP B02SP B03SP B04SP B05SP B06SP B07SP B08SP B09SP B10SP B11SP B12SP B13SP B14SP B15SP B16SP B17SP B18SP B19SP B20SP B21SP B22SP B23SP B24SP B25SP B26SP B27SP B28SP B29SP B30SP B31SP B32SP B33SP B34SP B35SP B36SP B37SP B38SP B39SP B40SP B41SP B42SP B43SP B44SP B45SP B46SP B47SP B48SP B49SP B50SP B51SP B52SP B53SP B54SP B55SP B56SP B57SP B58SP B59SP B60SP B61SP B62SP B63SP B64SP B65SP B66SP B67SP B68SP B69SP B70SP B71SP B72SP B73SP B74SP B75SP B76SP B77SP B78SP B79SP B80SP B81SP B82SP B83SP B84SP B85SP B86SP B87SP B88SP B89SP B90SP B91SP B92SP B93SP B94SP B95SP B96SP B97SP B98SP B99SP S001SS S01SS S02SS S03SS S04SS S05SS S06SS S07SS S08SS S09SS S10SS S11SS S12SS S13SS S14SS S15SS S16SS S17SS S18SS S19SS S20SS S21SS S22SS S23SS S24SS S25SS S26SS S27SS S28SS S29SS S30SS S31SS S32SS S33SS S34SS S35SS S36SS S37SS S38SS S39SS S40SS S41SS S42SS S43SS S44SS S45SS S46SS S47SS S48SS S49SS S50SS S51SS S52SS S53SS S54SS S55SS S56SS S57SS S58SS S59SS S60SS S61SS S62SS S63SS S64SS S65SS S66SS S67SS S68SS S69SS S70SS S71SS S72SS S73SS S74SS S75SS S76SS S77SS S78SS S79SS S80SS S81SS S82SS S83SS S84SS S85SS S86SS S87SS S88SS S89SS S90SS S91SS S92SS S93SS S94SS S95SS S96SS S97SS S98SS S99SS F001SS F01SS F02SS F03SS F04SS F05SS F06SS F07SS F08SS F09SS F10SS F11SS F12SS F13SS F14SS F15SS F16SS F17SS F18SS F19SS F20SS F21SS F22SS F23SS F24SS F25SS F26SS F27SS F28SS F29SS F30SS F31SS F32SS F33SS F34SS F35SS F36SS F37SS F38SS F39SS F40SS F41SS F42SS F43SS F44SS F45SS F46SS F47SS F48SS F49SS F50SS F51SS F52SS F53SS F54SS F55SS F56SS F57SS F58SS F59SS F60SS F61SS F62SS F63SS F64SS F65SS F66SS F67SS F68SS F69SS F70SS F71SS F72SS F73SS F74SS F75SS F76SS F77SS F78SS F79SS F80SS F81SS F82SS F83SS F84SS F85SS F86SS F87SS F88SS F89SS F90SS F91SS F92SS F93SS F94SS F95SS F96SS F97SS F98SS F99SS B001SS B01SS B02SS B03SS B04SS B05SS B06SS B07SS B08SS B09SS B10SS B11SS B12SS B13SS B14SS B15SS B16SS B17SS B18SS B19SS B20SS B21SS B22SS B23SS B24SS B25SS B26SS B27SS B28SS B29SS B30SS B31SS B32SS B33SS B34SS B35SS B36SS B37SS B38SS B39SS B40SS B41SS B42SS B43SS B44SS B45SS B46SS B47SS B48SS B49SS B50SS B51SS B52SS B53SS B54SS B55SS B56SS B57SS B58SS B59SS B60SS B61SS B62SS B63SS B64SS B65SS B66SS B67SS B68SS B69SS B70SS B71SS B72SS B73SS B74SS B75SS B76SS B77SS B78SS B79SS B80SS B81SS B82SS B83SS B84SS B85SS B86SS B87SS B88SS B89SS B90SS B91SS B92SS B93SS B94SS B95SS B96SS B97SS B98SS B99SS S001XP S01XP S02XP S03XP S04XP S05XP S06XP S07XP S08XP S09XP S10XP S11XP S12XP S13XP S14XP S15XP S16XP S17XP S18XP S19XP S20XP S21XP S22XP S23XP S24XP S25XP S26XP S27XP S28XP S29XP S30XP S31XP S32XP S33XP S34XP S35XP S36XP S37XP S38XP S39XP S40XP S41XP S42XP S43XP S44XP S45XP S46XP S47XP S48XP S49XP S50XP S51XP S52XP S53XP S54XP S55XP S56XP S57XP S58XP S59XP S60XP S61XP S62XP S63XP S64XP S65XP S66XP S67XP S68XP S69XP S70XP S71XP S72XP S73XP S74XP S75XP S76XP S77XP S78XP S79XP S80XP S81XP S82XP S83XP S84XP S85XP S86XP S87XP S88XP S89XP S90XP S91XP S92XP S93XP S94XP S95XP S96XP S97XP S98XP S99XP F001XP F01XP F02XP F03XP F04XP F05XP F06XP F07XP F08XP F09XP F10XP F11XP F12XP F13XP F14XP F15XP F16XP F17XP F18XP F19XP F20XP F21XP F22XP F23XP F24XP F25XP F26XP F27XP F28XP F29XP F30XP F31XP F32XP F33XP F34XP F35XP F36XP F37XP F38XP F39XP F40XP F41XP F42XP F43XP F44XP F45XP F46XP F47XP F48XP F49XP F50XP F51XP F52XP F53XP F54XP F55XP F56XP F57XP F58XP F59XP F60XP F61XP F62XP F63XP F64XP F65XP F66XP F67XP F68XP F69XP F70XP F71XP F72XP F73XP F74XP F75XP F76XP F77XP F78XP F79XP F80XP F81XP F82XP F83XP F84XP F85XP F86XP F87XP F88XP F89XP F90XP F91XP F92XP F93XP F94XP F95XP F96XP F97XP F98XP F99XP B001XP B01XP B02XP B03XP B04XP B05XP B06XP B07XP B08XP B09XP B10XP B11XP B12XP B13XP B14XP B15XP B16XP B17XP B18XP B19XP B20XP B21XP B22XP B23XP B24XP B25XP B26XP B27XP B28XP B29XP B30XP B31XP B32XP B33XP B34XP B35XP B36XP B37XP B38XP B39XP B40XP B41XP B42XP B43XP B44XP B45XP B46XP B47XP B48XP B49XP B50XP B51XP B52XP B53XP B54XP B55XP B56XP B57XP B58XP B59XP B60XP B61XP B62XP B63XP B64XP B65XP B66XP B67XP B68XP B69XP B70XP B71XP B72XP B73XP B74XP B75XP B76XP B77XP B78XP B79XP B80XP B81XP B82XP B83XP B84XP B85XP B86XP B87XP B88XP B89XP B90XP B91XP B92XP B93XP B94XP B95XP B96XP B97XP B98XP B99XP S001XS S01XS S02XS S03XS S04XS S05XS S06XS S07XS S08XS S09XS S10XS S11XS S12XS S13XS S14XS S15XS S16XS S17XS S18XS S19XS S20XS S21XS S22XS S23XS S24XS S25XS S26XS S27XS S28XS S29XS S30XS S31XS S32XS S33XS S34XS S35XS S36XS S37XS S38XS S39XS S40XS S41XS S42XS S43XS S44XS S45XS S46XS S47XS S48XS S49XS S50XS S51XS S52XS S53XS S54XS S55XS S56XS S57XS S58XS S59XS S60XS S61XS S62XS S63XS S64XS S65XS S66XS S67XS S68XS S69XS S70XS S71XS S72XS S73XS S74XS S75XS S76XS S77XS S78XS S79XS S80XS S81XS S82XS S83XS S84XS S85XS S86XS S87XS S88XS S89XS S90XS S91XS S92XS S93XS S94XS S95XS S96XS S97XS S98XS S99XS F001XS F01XS F02XS F03XS F04XS F05XS F06XS F07XS F08XS F09XS F10XS F11XS F12XS F13XS F14XS F15XS F16XS F17XS F18XS F19XS F20XS F21XS F22XS F23XS F24XS F25XS F26XS F27XS F28XS F29XS F30XS F31XS F32XS F33XS F34XS F35XS F36XS F37XS F38XS F39XS F40XS F41XS F42XS F43XS F44XS F45XS F46XS F47XS F48XS F49XS F50XS F51XS F52XS F53XS F54XS F55XS F56XS F57XS F58XS F59XS F60XS F61XS F62XS F63XS F64XS F65XS F66XS F67XS F68XS F69XS F70XS F71XS F72XS F73XS F74XS F75XS F76XS F77XS F78XS F79XS F80XS F81XS F82XS F83XS F84XS F85XS F86XS F87XS F88XS F89XS F90XS F91XS F92XS F93XS F94XS F95XS F96XS F97XS F98XS F99XS B001XS B01XS B02XS B03XS B04XS B05XS B06XS B07XS B08XS B09XS B10XS B11XS B12XS B13XS B14XS B15XS B16XS B17XS B18XS B19XS B20XS B21XS B22XS B23XS B24XS B25XS B26XS B27XS B28XS B29XS B30XS B31XS B32XS B33XS B34XS B35XS B36XS B37XS B38XS B39XS B40XS B41XS B42XS B43XS B44XS B45XS B46XS B47XS B48XS B49XS B50XS B51XS B52XS B53XS B54XS B55XS B56XS B57XS B58XS B59XS B60XS B61XS B62XS B63XS B64XS B65XS B66XS B67XS B68XS B69XS B70XS B71XS B72XS B73XS B74XS B75XS B76XS B77XS B78XS B79XS B80XS B81XS B82XS B83XS B84XS B85XS B86XS B87XS B88XS B89XS B90XS B91XS B92XS B93XS B94XS B95XS B96XS B97XS B98XS B99XS S001MP S01MP S02MP S03MP S04MP S05MP S06MP S07MP S08MP S09MP S10MP S11MP S12MP S13MP S14MP S15MP S16MP S17MP S18MP S19MP S20MP S21MP S22MP S23MP S24MP S25MP S26MP S27MP S28MP S29MP S30MP S31MP S32MP S33MP S34MP S35MP S36MP S37MP S38MP S39MP S40MP S41MP S42MP S43MP S44MP S45MP S46MP S47MP S48MP S49MP S50MP S51MP S52MP S53MP S54MP S55MP S56MP S57MP S58MP S59MP S60MP S61MP S62MP S63MP S64MP S65MP S66MP S67MP S68MP S69MP S70MP S71MP S72MP S73MP S74MP S75MP S76MP S77MP S78MP S79MP S80MP S81MP S82MP S83MP S84MP S85MP S86MP S87MP S88MP S89MP S90MP S91MP S92MP S93MP S94MP S95MP S96MP S97MP S98MP S99MP F001MP F01MP F02MP F03MP F04MP F05MP F06MP F07MP F08MP F09MP F10MP F11MP F12MP F13MP F14MP F15MP F16MP F17MP F18MP F19MP F20MP F21MP F22MP F23MP F24MP F25MP F26MP F27MP F28MP F29MP F30MP F31MP F32MP F33MP F34MP F35MP F36MP F37MP F38MP F39MP F40MP F41MP F42MP F43MP F44MP F45MP F46MP F47MP F48MP F49MP F50MP F51MP F52MP F53MP F54MP F55MP F56MP F57MP F58MP F59MP F60MP F61MP F62MP F63MP F64MP F65MP F66MP F67MP F68MP F69MP F70MP F71MP F72MP F73MP F74MP F75MP F76MP F77MP F78MP F79MP F80MP F81MP F82MP F83MP F84MP F85MP F86MP F87MP F88MP F89MP F90MP F91MP F92MP F93MP F94MP F95MP F96MP F97MP F98MP F99MP B001MP B01MP B02MP B03MP B04MP B05MP B06MP B07MP B08MP B09MP B10MP B11MP B12MP B13MP B14MP B15MP B16MP B17MP B18MP B19MP B20MP B21MP B22MP B23MP B24MP B25MP B26MP B27MP B28MP B29MP B30MP B31MP B32MP B33MP B34MP B35MP B36MP B37MP B38MP B39MP B40MP B41MP B42MP B43MP B44MP B45MP B46MP B47MP B48MP B49MP B50MP B51MP B52MP B53MP B54MP B55MP B56MP B57MP B58MP B59MP B60MP B61MP B62MP B63MP B64MP B65MP B66MP B67MP B68MP B69MP B70MP B71MP B72MP B73MP B74MP B75MP B76MP B77MP B78MP B79MP B80MP B81MP B82MP B83MP B84MP B85MP B86MP B87MP B88MP B89MP B90MP B91MP B92MP B93MP B94MP B95MP B96MP B97MP B98MP B99MP S001MS S01MS S02MS S03MS S04MS S05MS S06MS S07MS S08MS S09MS S10MS S11MS S12MS S13MS S14MS S15MS S16MS S17MS S18MS S19MS S20MS S21MS S22MS S23MS S24MS S25MS S26MS S27MS S28MS S29MS S30MS S31MS S32MS S33MS S34MS S35MS S36MS S37MS S38MS S39MS S40MS S41MS S42MS S43MS S44MS S45MS S46MS S47MS S48MS S49MS S50MS S51MS S52MS S53MS S54MS S55MS S56MS S57MS S58MS S59MS S60MS S61MS S62MS S63MS S64MS S65MS S66MS S67MS S68MS S69MS S70MS S71MS S72MS S73MS S74MS S75MS S76MS S77MS S78MS S79MS S80MS S81MS S82MS S83MS S84MS S85MS S86MS S87MS S88MS S89MS S90MS S91MS S92MS S93MS S94MS S95MS S96MS S97MS S98MS S99MS F001MS F01MS F02MS F03MS F04MS F05MS F06MS F07MS F08MS F09MS F10MS F11MS F12MS F13MS F14MS F15MS F16MS F17MS F18MS F19MS F20MS F21MS F22MS F23MS F24MS F25MS F26MS F27MS F28MS F29MS F30MS F31MS F32MS F33MS F34MS F35MS F36MS F37MS F38MS F39MS F40MS F41MS F42MS F43MS F44MS F45MS F46MS F47MS F48MS F49MS F50MS F51MS F52MS F53MS F54MS F55MS F56MS F57MS F58MS F59MS F60MS F61MS F62MS F63MS F64MS F65MS F66MS F67MS F68MS F69MS F70MS F71MS F72MS F73MS F74MS F75MS F76MS F77MS F78MS F79MS F80MS F81MS F82MS F83MS F84MS F85MS F86MS F87MS F88MS F89MS F90MS F91MS F92MS F93MS F94MS F95MS F96MS F97MS F98MS F99MS B001MS B01MS B02MS B03MS B04MS B05MS B06MS B07MS B08MS B09MS B10MS B11MS B12MS B13MS B14MS B15MS B16MS B17MS B18MS B19MS B20MS B21MS B22MS B23MS B24MS B25MS B26MS B27MS B28MS B29MS B30MS B31MS B32MS B33MS B34MS B35MS B36MS B37MS B38MS B39MS B40MS B41MS B42MS B43MS B44MS B45MS B46MS B47MS B48MS B49MS B50MS B51MS B52MS B53MS B54MS B55MS B56MS B57MS B58MS B59MS B60MS B61MS B62MS B63MS B64MS B65MS B66MS B67MS B68MS B69MS B70MS B71MS B72MS B73MS B74MS B75MS B76MS B77MS B78MS B79MS B80MS B81MS B82MS B83MS B84MS B85MS B86MS B87MS B88MS B89MS B90MS B91MS B92MS B93MS B94MS B95MS B96MS B97MS B98MS B99MS
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1070+/-10nm
Reflective Channel Wavelength 915+/-10nm
Signal/Pump Insertion Loss <=2.0dB/<=1.0dB
Signal Isolation >=20dB
Signal Tap Ratio 1%, 2%, 5%, 10%, 20%, 30%, 40%, 50%
Signal/Pump Wavelength Isolation >=25dB/>=12dB
Return Loss >=45dB
Extinction Ratio >=18dB
Fiber Type (Common&Signal) PM850 Fiber, PM980 Fiber or PM1060L Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/125um PMDC Fiber or 25/250um PMDC Fiber
Fiber Type (Pump&Tap) Pump: Same Fiber, Corr. SM Fiber, PM850 Fiber or HI780 Fiber
PM980 Fiber or HI1060 Fiber
Tap: Same Fiber or Corr. SM Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W
Operating Temperature 0~50degreeC

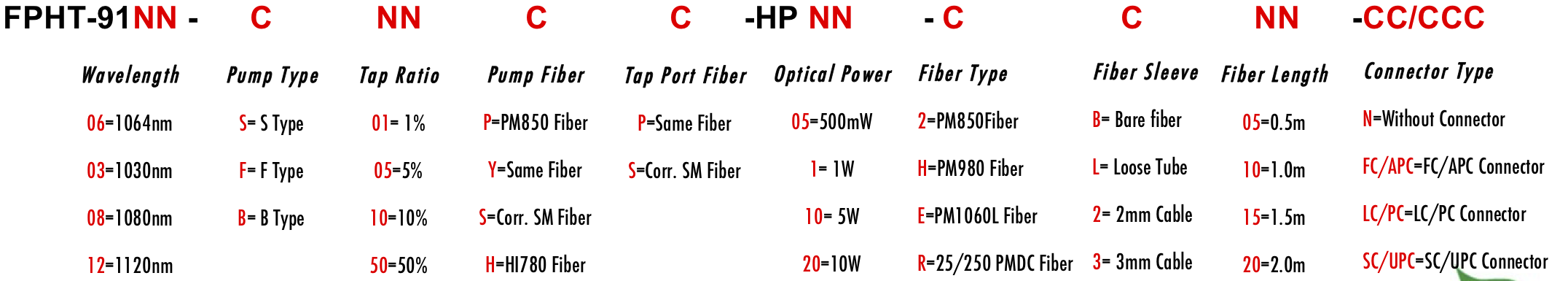

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
