915/1080nm WDM/Isolator/Tap Hybrid
DESCRIPTION
Haphit provides fiber based passive components. The WDM/Isolator/Tap Hybrid is made by micro-optics package technology with fiber in and fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation, high Signal Isolation and various Tap Ratio. The WDM/Isolator/Tap Hybrid will combine or split the signal light and pump light, while at the same time force the signal to transmit at single direction and tap the signal for monitoring purpose. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FHWT 915nm 900nm 930nm 910nm 905nm 920nm 925nm 1080nm 1070nm 1090nm 1083nm 1085nm 1075nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador HI1060 HI1060XP HI780 780HP 980HP 980XP LMA 6/125um 10/125um 10/130um 15/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad High Power 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W Watt Watts HP CW Continuous Wave FHWT 915nm 900nm 930nm 910nm 905nm 920nm 925nm 1080nm 1070nm 1090nm 1083nm 1085nm 1075nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador HI1060 HI1060XP HI780 780HP 980HP 980XP LMA 6/125um 10/125um 10/130um 15/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad High Power 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W Watt Watts HP CW Continuous Wave FHWT 915nm 900nm 930nm 910nm 905nm 920nm 925nm 1080nm 1070nm 1090nm 1083nm 1085nm 1075nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador HI1060 HI1060XP HI780 780HP 980HP 980XP LMA 6/125um 10/125um 10/130um 15/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad High Power 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W Watt Watts HP CW Continuous Wave 9108 S001H S01H S02H S03H S04H S05H S06H S07H S08H S09H S10H S11H S12H S13H S14H S15H S16H S17H S18H S19H S20H S21H S22H S23H S24H S25H S26H S27H S28H S29H S30H S31H S32H S33H S34H S35H S36H S37H S38H S39H S40H S41H S42H S43H S44H S45H S46H S47H S48H S49H S50H S51H S52H S53H S54H S55H S56H S57H S58H S59H S60H S61H S62H S63H S64H S65H S66H S67H S68H S69H S70H S71H S72H S73H S74H S75H S76H S77H S78H S79H S80H S81H S82H S83H S84H S85H S86H S87H S88H S89H S90H S91H S92H S93H S94H S95H S96H S97H S98H S99H D001H D01H D02H D03H D04H D05H D06H D07H D08H D09H D10H D11H D12H D13H D14H D15H D16H D17H D18H D19H D20H D21H D22H D23H D24H D25H D26H D27H D28H D29H D30H D31H D32H D33H D34H D35H D36H D37H D38H D39H D40H D41H D42H D43H D44H D45H D46H D47H D48H D49H D50H D51H D52H D53H D54H D55H D56H D57H D58H D59H D60H D61H D62H D63H D64H D65H D66H D67H D68H D69H D70H D71H D72H D73H D74H D75H D76H D77H D78H D79H D80H D81H D82H D83H D84H D85H D86H D87H D88H D89H D90H D91H D92H D93H D94H D95H D96H D97H D98H D99H 05 1 2 3 4 5 6 7 8 9 10
TYPICAL SPECIFICATIONS
Pass Channel Wavelength
1080+/-10nm
Reflective Channel Wavelength
915+/-10nm
Signal/Pump Insertion Loss
<=2.7dB (Single Stage), <=4.2dB (Dual Stage) /<=1.0dB
Signal Isolation
>=22dB (Single Stage), >=40dB (Dual Stage)
Signal Tap Ratio
1%, 2%, 5%, 10%, 20%, 30%, 40%, 50%
Signal/Pump Wavelength Isolation
>=25dB/>=12dB
Return Loss
>=45dB
PDL
<=0.3dB
Fiber Type (Common&Signal&Tap)
HI780 Fiber, HI1060 Fiber or 10/125um SC Fiber
10/125um DC Fiber or 15/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
Fiber Type (Pump)
Same Fiber, HI780 Fiber or HI1060 Fiber
Max. Signal Optical Power (CW)
300mW
Max. Pump Optical Power (CW)
300mW, 500mW, 1W, 2W, 3W, 5W, 10W
Operating Temperature
0~50degreeC

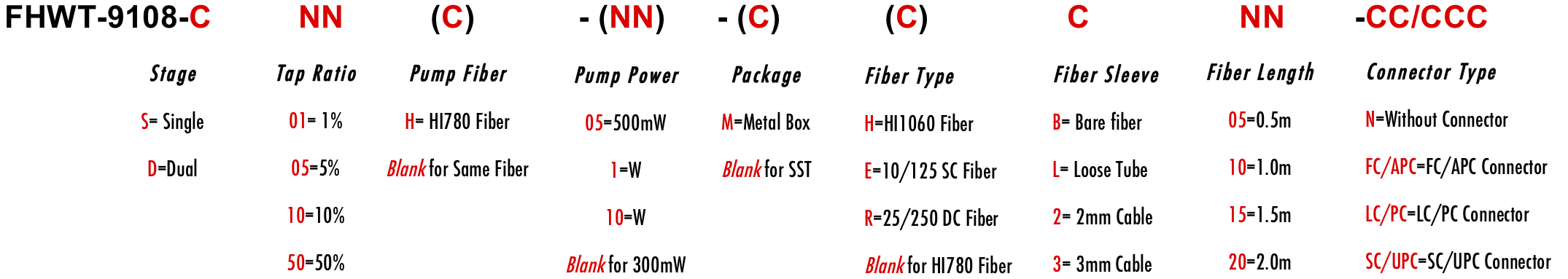

ORDERING INFORMATION/PART NUMBER(PN)
