1480/1550nm PM WDM/Partial Fiber Mirror Hybrid
DESCRIPTION
Haphit provides fiber based passive components. The WDM/Partial Fiber Mirror (PFM) Hybrid is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation, high Extinction Ratio and various Reflective Ratio. The WDM/PFM Hybrid will combine or split the signal light and pump light, while at the same time reflect back a certain ratio signal light. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPHP 1480nm 1470nm 1490nm 1485nm 1450nm 1460nm 1550nm 1530nm 1570nm 1540nm 1560nm PM WDM Filter Wavelength division Hybrid HYB HYBR HY HB filtre filtro Multiplexer Demux Divide Mirror reflective miroir spiegel Espejo Reflectante reflektierende compte PM1550 PM1310 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda FPHP 1480nm 1470nm 1490nm 1485nm 1450nm 1460nm 1550nm 1530nm 1570nm 1540nm 1560nm PM WDM Filter Wavelength division Hybrid HYB HYBR HY HB filtre filtro Multiplexer Demux Divide Mirror reflective miroir spiegel Espejo Reflectante reflektierende compte PM1550 PM1310 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda FPHP 1480nm 1470nm 1490nm 1485nm 1450nm 1460nm 1550nm 1530nm 1570nm 1540nm 1560nm PM WDM Filter Wavelength division Hybrid HYB HYBR HY HB filtre filtro Multiplexer Demux Divide Mirror reflective miroir spiegel Espejo Reflectante reflektierende compte PM1550 PM1310 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda 1415 F001SH F01SH F02SH F03SH F04SH F05SH F06SH F07SH F08SH F09SH F10SH F11SH F12SH F13SH F14SH F15SH F16SH F17SH F18SH F19SH F20SH F21SH F22SH F23SH F24SH F25SH F26SH F27SH F28SH F29SH F30SH F31SH F32SH F33SH F34SH F35SH F36SH F37SH F38SH F39SH F40SH F41SH F42SH F43SH F44SH F45SH F46SH F47SH F48SH F49SH F50SH F51SH F52SH F53SH F54SH F55SH F56SH F57SH F58SH F59SH F60SH F61SH F62SH F63SH F64SH F65SH F66SH F67SH F68SH F69SH F70SH F71SH F72SH F73SH F74SH F75SH F76SH F77SH F78SH F79SH F80SH F81SH F82SH F83SH F84SH F85SH F86SH F87SH F88SH F89SH F90SH F91SH F92SH F93SH F94SH F95SH F96SH F97SH F98SH F99SH F001PH F01PH F02PH F03PH F04PH F05PH F06PH F07PH F08PH F09PH F10PH F11PH F12PH F13PH F14PH F15PH F16PH F17PH F18PH F19PH F20PH F21PH F22PH F23PH F24PH F25PH F26PH F27PH F28PH F29PH F30PH F31PH F32PH F33PH F34PH F35PH F36PH F37PH F38PH F39PH F40PH F41PH F42PH F43PH F44PH F45PH F46PH F47PH F48PH F49PH F50PH F51PH F52PH F53PH F54PH F55PH F56PH F57PH F58PH F59PH F60PH F61PH F62PH F63PH F64PH F65PH F66PH F67PH F68PH F69PH F70PH F71PH F72PH F73PH F74PH F75PH F76PH F77PH F78PH F79PH F80PH F81PH F82PH F83PH F84PH F85PH F86PH F87PH F88PH F89PH F90PH F91PH F92PH F93PH F94PH F95PH F96PH F97PH F98PH F99PH F001H F01H F02H F03H F04H F05H F06H F07H F08H F09H F10H F11H F12H F13H F14H F15H F16H F17H F18H F19H F20H F21H F22H F23H F24H F25H F26H F27H F28H F29H F30H F31H F32H F33H F34H F35H F36H F37H F38H F39H F40H F41H F42H F43H F44H F45H F46H F47H F48H F49H F50H F51H F52H F53H F54H F55H F56H F57H F58H F59H F60H F61H F62H F63H F64H F65H F66H F67H F68H F69H F70H F71H F72H F73H F74H F75H F76H F77H F78H F79H F80H F81H F82H F83H F84H F85H F86H F87H F88H F89H F90H F91H F92H F93H F94H F95H F96H F97H F98H F99H
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1530-1580nm
Reflective Channel Wavelength 1460-1490nm
Signal Excess Loss <=1.1dB (Standard), <=1.3dB (High ER Type)
Pump Insertion Loss <=0.8dB
Signal Reflective Ratio 1%, 2%, 5%, 10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%
Signal/Pump Wavelength Isolation >=25dB/>=12dB
Return Loss >=45dB
Extinction Ratio >=18dB (Standard), >=20dB (High ER Type)
Fiber Type (Common&Signal) PM1550 Fiber or 10/125um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Fiber Type (Pump) Same Fiber, Corr. SM Fiber or PM1310 Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

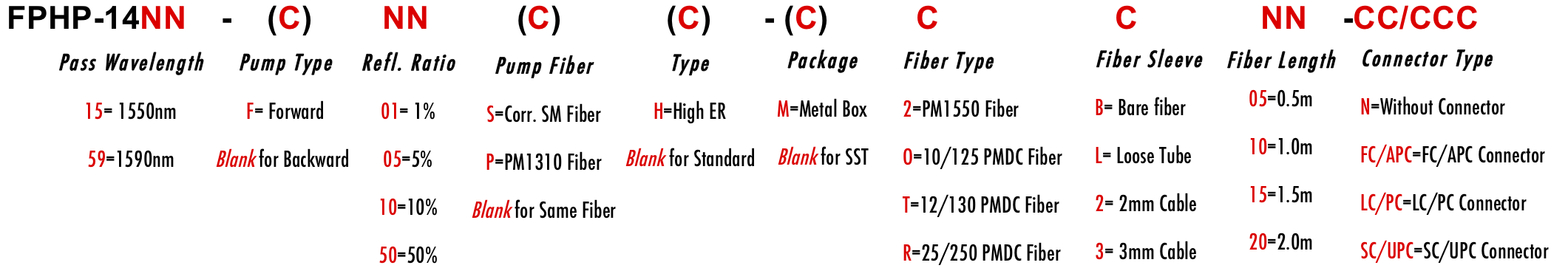

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
