808/2030nm WDM/Partial Fiber Mirror Hybrid for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The WDM/Partial Fiber Mirror (PFM) Hybrid is made by micro-optics package technology with fiber in and fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation, and various Reflective Ratio. The WDM/PFM Hybrid will combine or split the signal light and pump light, while at the same time reflect back a certain ratio signal light. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FFHP 808nm 800nm 810nm 815nm 805nm 2030nm 2010nm 2050nm 2020nm 2040nm 2035nm 2025nm 2015nm 2045nm WDM Filter Wavelength division Hybrid HYB HYBR HY HB filtre filtro Multiplexer Demux Divide Mirror reflective miroir spiegel Espejo Reflectante reflektierende compte SMF-28 SMF28 HI780 780HP LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FFHP 808nm 800nm 810nm 815nm 805nm 2030nm 2010nm 2050nm 2020nm 2040nm 2035nm 2025nm 2015nm 2045nm WDM Filter Wavelength division Hybrid HYB HYBR HY HB filtre filtro Multiplexer Demux Divide Mirror reflective miroir spiegel Espejo Reflectante reflektierende compte SMF-28 SMF28 HI780 780HP LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FFHP 808nm 800nm 810nm 815nm 805nm 2030nm 2010nm 2050nm 2020nm 2040nm 2035nm 2025nm 2015nm 2045nm WDM Filter Wavelength division Hybrid HYB HYBR HY HB filtre filtro Multiplexer Demux Divide Mirror reflective miroir spiegel Espejo Reflectante reflektierende compte SMF-28 SMF28 HI780 780HP LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 8123 F001H F01H F02H F03H F04H F05H F06H F07H F08H F09H F10H F11H F12H F13H F14H F15H F16H F17H F18H F19H F20H F21H F22H F23H F24H F25H F26H F27H F28H F29H F30H F31H F32H F33H F34H F35H F36H F37H F38H F39H F40H F41H F42H F43H F44H F45H F46H F47H F48H F49H F50H F51H F52H F53H F54H F55H F56H F57H F58H F59H F60H F61H F62H F63H F64H F65H F66H F67H F68H F69H F70H F71H F72H F73H F74H F75H F76H F77H F78H F79H F80H F81H F82H F83H F84H F85H F86H F87H F88H F89H F90H F91H F92H F93H F94H F95H F96H F97H F98H F99H F0017 F017 F027 F037 F047 F057 F067 F077 F087 F097 F107 F117 F127 F137 F147 F157 F167 F177 F187 F197 F207 F217 F227 F237 F247 F257 F267 F277 F287 F297 F307 F317 F327 F337 F347 F357 F367 F377 F387 F397 F407 F417 F427 F437 F447 F457 F467 F477 F487 F497 F507 F517 F527 F537 F547 F557 F567 F577 F587 F597 F607 F617 F627 F637 F647 F657 F667 F677 F687 F697 F707 F717 F727 F737 F747 F757 F767 F777 F787 F797 F807 F817 F827 F837 F847 F857 F867 F877 F887 F897 F907 F917 F927 F937 F947 F957 F967 F977 F987 F997
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 2030+/-20nm
Reflective Channel Wavelength 808+/-10nm
Signal Excess Loss <=1.5dB
Pump Insertion Loss <=1.3dB
Signal Reflective Ratio 1%, 2%, 5%, 10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%
Signal/Pump Wavelength Isolation >=25dB/>=12dB
Return Loss >=45dB
PDL <=0.2dB
Fiber Type (Common & Signal) SMF-28 Fiber or SM1950 Fiber
10/130um DC Fiber or 25/250um DC Fiber
Fiber Type (Pump) Same Fiber, 780HP Fiber or HI780 Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

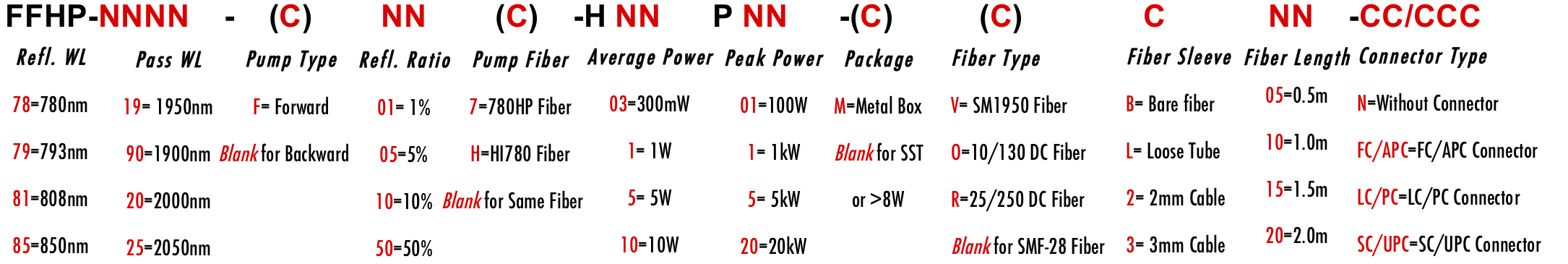

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
