830/1900nm PM WDM/Partial Fiber Mirror Hybrid

DESCRIPTION
Haphit provides fiber based passive components. The WDM/Partial Fiber Mirror (PFM) Hybrid is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation, high Extinction Ratio and various Reflective Ratio. The WDM/PFM Hybrid will combine or split the signal light and pump light, while at the same time reflect back a certain ratio signal light. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPHP 830nm 820nm 840nm 835nm 825nm 1900nm 1905nm 1895nm 1890nm 1910nm PM WDM Filter Wavelength division Hybrid HYB HYBR HY HB filtre filtro Multiplexer Demux Divide Mirror reflective miroir spiegel Espejo Reflectante reflektierende compte PM1550 LMA PM1950 PM850 PM780HP PM2000 8/125um 10/125um 10/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda FPHP 830nm 820nm 840nm 835nm 825nm 1900nm 1905nm 1895nm 1890nm 1910nm PM WDM Filter Wavelength division Hybrid HYB HYBR HY HB filtre filtro Multiplexer Demux Divide Mirror reflective miroir spiegel Espejo Reflectante reflektierende compte PM1550 LMA PM1950 PM850 PM780HP PM2000 8/125um 10/125um 10/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda FPHP 830nm 820nm 840nm 835nm 825nm 1900nm 1905nm 1895nm 1890nm 1910nm PM WDM Filter Wavelength division Hybrid HYB HYBR HY HB filtre filtro Multiplexer Demux Divide Mirror reflective miroir spiegel Espejo Reflectante reflektierende compte PM1550 LMA PM1950 PM850 PM780HP PM2000 8/125um 10/125um 10/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda 8390 F001YH F01YH F02YH F03YH F04YH F05YH F06YH F07YH F08YH F09YH F10YH F11YH F12YH F13YH F14YH F15YH F16YH F17YH F18YH F19YH F20YH F21YH F22YH F23YH F24YH F25YH F26YH F27YH F28YH F29YH F30YH F31YH F32YH F33YH F34YH F35YH F36YH F37YH F38YH F39YH F40YH F41YH F42YH F43YH F44YH F45YH F46YH F47YH F48YH F49YH F50YH F51YH F52YH F53YH F54YH F55YH F56YH F57YH F58YH F59YH F60YH F61YH F62YH F63YH F64YH F65YH F66YH F67YH F68YH F69YH F70YH F71YH F72YH F73YH F74YH F75YH F76YH F77YH F78YH F79YH F80YH F81YH F82YH F83YH F84YH F85YH F86YH F87YH F88YH F89YH F90YH F91YH F92YH F93YH F94YH F95YH F96YH F97YH F98YH F99YH 001PH F01PH F02PH F03PH F04PH F05PH F06PH F07PH F08PH F09PH F10PH F11PH F12PH F13PH F14PH F15PH F16PH F17PH F18PH F19PH F20PH F21PH F22PH F23PH F24PH F25PH F26PH F27PH F28PH F29PH F30PH F31PH F32PH F33PH F34PH F35PH F36PH F37PH F38PH F39PH F40PH F41PH F42PH F43PH F44PH F45PH F46PH F47PH F48PH F49PH F50PH F51PH F52PH F53PH F54PH F55PH F56PH F57PH F58PH F59PH F60PH F61PH F62PH F63PH F64PH F65PH F66PH F67PH F68PH F69PH F70PH F71PH F72PH F73PH F74PH F75PH F76PH F77PH F78PH F79PH F80PH F81PH F82PH F83PH F84PH F85PH F86PH F87PH F88PH F89PH F90PH F91PH F92PH F93PH F94PH F95PH F96PH F97PH F98PH F99PH F001HH F01HH F02HH F03HH F04HH F05HH F06HH F07HH F08HH F09HH F10HH F11HH F12HH F13HH F14HH F15HH F16HH F17HH F18HH F19HH F20HH F21HH F22HH F23HH F24HH F25HH F26HH F27HH F28HH F29HH F30HH F31HH F32HH F33HH F34HH F35HH F36HH F37HH F38HH F39HH F40HH F41HH F42HH F43HH F44HH F45HH F46HH F47HH F48HH F49HH F50HH F51HH F52HH F53HH F54HH F55HH F56HH F57HH F58HH F59HH F60HH F61HH F62HH F63HH F64HH F65HH F66HH F67HH F68HH F69HH F70HH F71HH F72HH F73HH F74HH F75HH F76HH F77HH F78HH F79HH F80HH F81HH F82HH F83HH F84HH F85HH F86HH F87HH F88HH F89HH F90HH F91HH F92HH F93HH F94HH F95HH F96HH F97HH F98HH F99HH F001SH F01SH F02SH F03SH F04SH F05SH F06SH F07SH F08SH F09SH F10SH F11SH F12SH F13SH F14SH F15SH F16SH F17SH F18SH F19SH F20SH F21SH F22SH F23SH F24SH F25SH F26SH F27SH F28SH F29SH F30SH F31SH F32SH F33SH F34SH F35SH F36SH F37SH F38SH F39SH F40SH F41SH F42SH F43SH F44SH F45SH F46SH F47SH F48SH F49SH F50SH F51SH F52SH F53SH F54SH F55SH F56SH F57SH F58SH F59SH F60SH F61SH F62SH F63SH F64SH F65SH F66SH F67SH F68SH F69SH F70SH F71SH F72SH F73SH F74SH F75SH F76SH F77SH F78SH F79SH F80SH F81SH F82SH F83SH F84SH F85SH F86SH F87SH F88SH F89SH F90SH F91SH F92SH F93SH F94SH F95SH F96SH F97SH F98SH F99SH F0017H F017H F027H F037H F047H F057H F067H F077H F087H F097H F107H F117H F127H F137H F147H F157H F167H F177H F187H F197H F207H F217H F227H F237H F247H F257H F267H F277H F287H F297H F307H F317H F327H F337H F347H F357H F367H F377H F387H F397H F407H F417H F427H F437H F447H F457H F467H F477H F487H F497H F507H F517H F527H F537H F547H F557H F567H F577H F587H F597H F607H F617H F627H F637H F647H F657H F667H F677H F687H F697H F707H F717H F727H F737H F747H F757H F767H F777H F787H F797H F807H F817H F827H F837H F847H F857H F867H F877H F887H F897H F907H F917H F927H F937H F947H F957H F967H F977H F987H F997H
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1900+/-10nm
Reflective Channel Wavelength 830+/-10nm
Signal Excess Loss <=1.5dB (Standard), <=1.7dB (High ER Type)
Pump Insertion Loss <=1.3dB
Signal Reflective Ratio 1%, 2%, 5%, 10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%
Signal/Pump Wavelength Isolation >=25dB/>=12dB
Return Loss >=45dB
Extinction Ratio >=18dB (Standard), >=20dB (High ER Type)
Fiber Type (Common&Signal) PM1550 Fiber or PM1950 Fiber
10/130um PMDC Fiber or 25/250um PMDC Fiber
Fiber Type (Pump) Same Fiber or Corr. SM Fiber
PM850 Fiber, PM780HP Fiber or HI780 Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

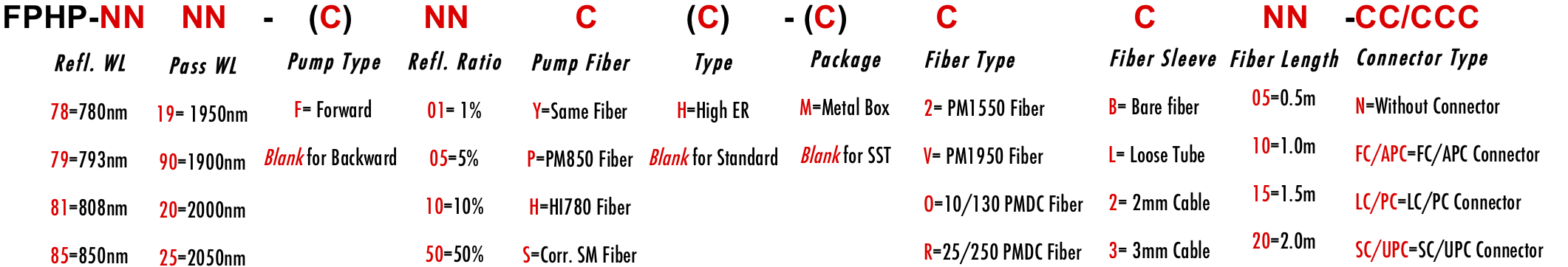

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
