980/1092nm WDM/Partial Fiber Mirror Hybrid

DESCRIPTION
Haphit provides fiber based passive components. The WDM/Partial Fiber Mirror (PFM) Hybrid is made by micro-optics package technology with fiber in and fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation, and various Reflective Ratio. The WDM/PFM Hybrid will combine or split the signal light and pump light, while at the same time reflect back a certain ratio signal light. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FFHP 980nm 975nm 970nm 985nm 990nm 1092nm 1090nm 1080nm 1100nm 1095nm 1085nm WDM Filter Wavelength division Hybrid HYB HYBR HY HB filtre filtro Multiplexer Demux Divide Mirror reflective miroir spiegel Espejo Reflectante reflektierende compte HI1060 HI1060XP 980HP 980XP LMA 6/125um 10/125um 10/130um 15/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad FFHP 980nm 975nm 970nm 985nm 990nm 1092nm 1090nm 1080nm 1100nm 1095nm 1085nm WDM Filter Wavelength division Hybrid HYB HYBR HY HB filtre filtro Multiplexer Demux Divide Mirror reflective miroir spiegel Espejo Reflectante reflektierende compte HI1060 HI1060XP 980HP 980XP LMA 6/125um 10/125um 10/130um 15/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad FFHP 980nm 975nm 970nm 985nm 990nm 1092nm 1090nm 1080nm 1100nm 1095nm 1085nm WDM Filter Wavelength division Hybrid HYB HYBR HY HB filtre filtro Multiplexer Demux Divide Mirror reflective miroir spiegel Espejo Reflectante reflektierende compte HI1060 HI1060XP 980HP 980XP LMA 6/125um 10/125um 10/130um 15/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad 9809 F001H F01H F02H F03H F04H F05H F06H F07H F08H F09H F10H F11H F12H F13H F14H F15H F16H F17H F18H F19H F20H F21H F22H F23H F24H F25H F26H F27H F28H F29H F30H F31H F32H F33H F34H F35H F36H F37H F38H F39H F40H F41H F42H F43H F44H F45H F46H F47H F48H F49H F50H F51H F52H F53H F54H F55H F56H F57H F58H F59H F60H F61H F62H F63H F64H F65H F66H F67H F68H F69H F70H F71H F72H F73H F74H F75H F76H F77H F78H F79H F80H F81H F82H F83H F84H F85H F86H F87H F88H F89H F90H F91H F92H F93H F94H F95H F96H F97H F98H F99H
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1092+/-5nm
Reflective Channel Wavelength 980+/-10nm
Signal Excess Loss <=1.4dB
Pump Insertion Loss <=0.8dB
Signal Reflective Ratio 1%, 2%, 5%, 10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%
Signal/Pump Wavelength Isolation >=25dB/>=12dB
Return Loss >=45dB
PDL <=0.2dB
Fiber Type (Common & Signal) HI1060 Fiber or 10/125um SC Fiber
10/125um DC Fiber or 15/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
Fiber Type (Pump) Same Fiber or HI1060 Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

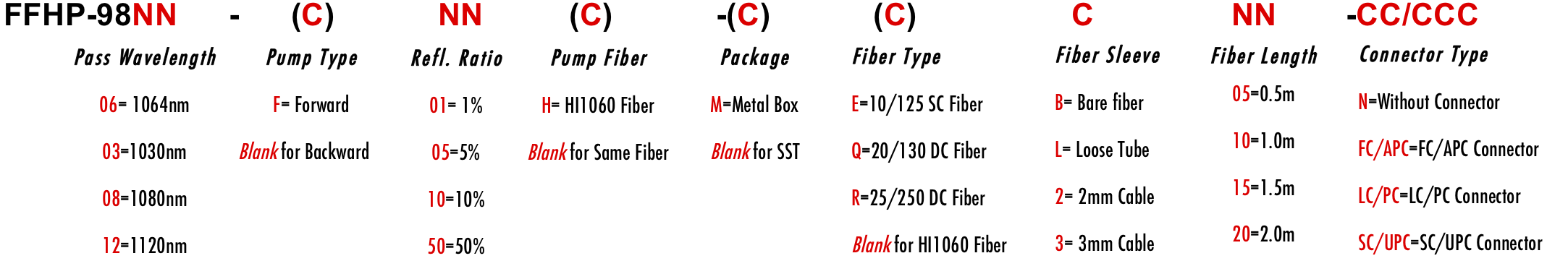

ORDERING INFORMATION/PART NUMBER(PN)
