1545nm High Power PM Bandpass Filter/Isolator Hybrid
DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Isolator Hybrid is made by thin film coating and micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features flat-top spectrum, high Suppression Ratio, high Extinction Ratio and high Isolation. The Bandpass Filter/Isolator Hybrid will pass the signal light while block both the unwanted/ASE light and backward signal. The high power version can withstand up to 20W CW Power while maintaining high performance and stability. Y Type or X type is strongly recommended to guide out high power ASE/unwanted light out. Customer can select only slow axis working or both axis working option. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FHBP 1545nm PM Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 3nm 4nm 10nm 12nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave FHBP 1545nm PM Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 3nm 4nm 10nm 12nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave FHBP 1545nm PM Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 3nm 4nm 10nm 12nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave S30FSYY S30FS5Y S30FSY5 S30FSAY S30FSYA S30BSYY S30BS5Y S30BSY5 S30BSAY S30BSYA S30TSYY S30TS5Y S30TSY5 S30TSAY S30TSYA D30FSYY D30FS5Y D30FSY5 D30FSAY D30FSYA D30BSYY D30BS5Y D30BSY5 D30BSAY D30BSYA D30TSYY D30TS5Y D30TSY5 D30TSAY D30TSYA S30FFYY S30FF5Y S30FFY5 S30FFAY S30FFYA S30BFYY S30BF5Y S30BFY5 S30BFAY S30BFYA S30TFYY S30TF5Y S30TFY5 S30TFAY S30TFYA D30FFYY D30FF5Y D30FFY5 D30FFAY D30FFYA D30BFYY D30BF5Y D30BFY5 D30BFAY D30BFYA D30TFYY D30TF5Y D30TFY5 D30TFAY D30TFYA H30FFYY H30FF5Y H30FFY5 H30FFAY H30FFYA H30BFYY H30BF5Y H30BFY5 H30BFAY H30BFYA H30TFYY H30TF5Y H30TFY5 H30TFAY H30TFYA H30FSYY H30FS5Y H30FSY5 H30FSAY H30FSYA H30BSYY H30BS5Y H30BSY5 H30BSAY H30BSYA H30TSYY H30TS5Y H30TSY5 H30TSAY H30TSYA S40FSYY S40FS5Y S40FSY5 S40FSAY S40FSYA S40BSYY S40BS5Y S40BSY5 S40BSAY S40BSYA S40TSYY S40TS5Y S40TSY5 S40TSAY S40TSYA D40FSYY D40FS5Y D40FSY5 D40FSAY D40FSYA D40BSYY D40BS5Y D40BSY5 D40BSAY D40BSYA D40TSYY D40TS5Y D40TSY5 D40TSAY D40TSYA S40FFYY S40FF5Y S40FFY5 S40FFAY S40FFYA S40BFYY S40BF5Y S40BFY5 S40BFAY S40BFYA S40TFYY S40TF5Y S40TFY5 S40TFAY S40TFYA D40FFYY D40FF5Y D40FFY5 D40FFAY D40FFYA D40BFYY D40BF5Y D40BFY5 D40BFAY D40BFYA D40TFYY D40TF5Y D40TFY5 D40TFAY D40TFYA H40FFYY H40FF5Y H40FFY5 H40FFAY H40FFYA H40BFYY H40BF5Y H40BFY5 H40BFAY H40BFYA H40TFYY H40TF5Y H40TFY5 H40TFAY H40TFYA H40FSYY H40FS5Y H40FSY5 H40FSAY H40FSYA H40BSYY H40BS5Y H40BSY5 H40BSAY H40BSYA H40TSYY H40TS5Y H40TSY5 H40TSAY H40TSYA S100FSYY S100FS5Y S100FSY5 S100FSAY S100FSYA S100BSYY S100BS5Y S100BSY5 S100BSAY S100BSYA S100TSYY S100TS5Y S100TSY5 S100TSAY S100TSYA D100FSYY D100FS5Y D100FSY5 D100FSAY D100FSYA D100BSYY D100BS5Y D100BSY5 D100BSAY D100BSYA D100TSYY D100TS5Y D100TSY5 D100TSAY D100TSYA S100FFYY S100FF5Y S100FFY5 S100FFAY S100FFYA S100BFYY S100BF5Y S100BFY5 S100BFAY S100BFYA S100TFYY S100TF5Y S100TFY5 S100TFAY S100TFYA D100FFYY D100FF5Y D100FFY5 D100FFAY D100FFYA D100BFYY D100BF5Y D100BFY5 D100BFAY D100BFYA D100TFYY D100TF5Y D100TFY5 D100TFAY D100TFYA H100FFYY H100FF5Y H100FFY5 H100FFAY H100FFYA H100BFYY H100BF5Y H100BFY5 H100BFAY H100BFYA H100TFYY H100TF5Y H100TFY5 H100TFAY H100TFYA H100FSYY H100FS5Y H100FSY5 H100FSAY H100FSYA H100BSYY H100BS5Y H100BSY5 H100BSAY H100BSYA H100TSYY H100TS5Y H100TSY5 H100TSAY H100TSYA S120FSYY S120FS5Y S120FSY5 S120FSAY S120FSYA S120BSYY S120BS5Y S120BSY5 S120BSAY S120BSYA S120TSYY S120TS5Y S120TSY5 S120TSAY S120TSYA D120FSYY D120FS5Y D120FSY5 D120FSAY D120FSYA D120BSYY D120BS5Y D120BSY5 D120BSAY D120BSYA D120TSYY D120TS5Y D120TSY5 D120TSAY D120TSYA S120FFYY S120FF5Y S120FFY5 S120FFAY S120FFYA S120BFYY S120BF5Y S120BFY5 S120BFAY S120BFYA S120TFYY S120TF5Y S120TFY5 S120TFAY S120TFYA D120FFYY D120FF5Y D120FFY5 D120FFAY D120FFYA D120BFYY D120BF5Y D120BFY5 D120BFAY D120BFYA D120TFYY D120TF5Y D120TFY5 D120TFAY D120TFYA H120FFYY H120FF5Y H120FFY5 H120FFAY H120FFYA H120BFYY H120BF5Y H120BFY5 H120BFAY H120BFYA H120TFYY H120TF5Y H120TFY5 H120TFAY H120TFYA H120FSYY H120FS5Y H120FSY5 H120FSAY H120FSYA H120BSYY H120BS5Y H120BSY5 H120BSAY H120BSYA H120TSYY H120TS5Y H120TSY5 H120TSAY H120TSYA
TYPICAL SPECIFICATIONS
Center Wavelength 1545nm
Min. Bandwidth@0.5dB 3nm, 4nm, 10nm, 12nm
Configuration D Type (2-port), Y Type (3-port), X Type (4-port)
Signal Isolation >=28dB (Single Stage) >=40dB (Dual Stage) >=22dB (H Stage)
Insertion Loss <=1.3dB (Single Stage) <=1.5dB (Dual Stage) <=1.7dB (H Stage)
Wavelength Suppression >=25dB
Return Loss >=45dB
Extinction Ratio >=18dB
Fiber Type PM1550 Fiber or 10/130um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W
Operating Temperature 0~70degreeC

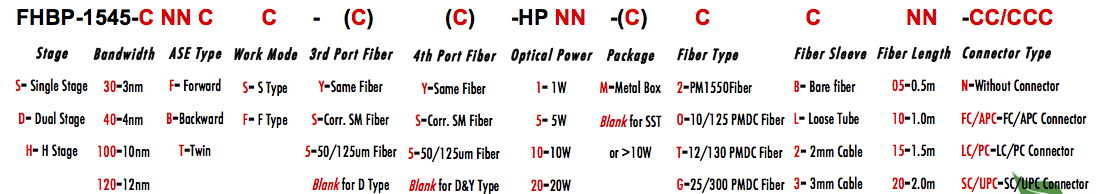

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
