1554nm High Power Bandpass Filter/Isolator Hybrid
DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Isolator Hybrid is made by thin film coating and micro-optics package technology with fiber in and fiber out. It features flat-top spectrum, high Suppression Ratio and high Isolation. The Bandpass Filter/Isolator Hybrid will pass the signal light while block both the unwanted/ASE light and backward signal. The high power version can withstand up to 20W CW Power while maintaining high performance and stability. Y Type or X type is strongly recommended to guide out high power ASE/unwanted light out. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FHBI 1554nm Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 6nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave FHBI 1554nm Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 6nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave FHBI 1554nm Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 6nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave S60FYY S60F5Y S60FY5 S60FAY S60FYA S60BYY S60B5Y S60BY5 S60BAY S60BYA S60TYY S60T5Y S60TY5 S60TAY S60TYA D60FYY D60F5Y D60FY5 D60FAY D60FYA D60BYY D60B5Y D60BY5 D60BAY D60BYA D60TYY D60T5Y D60TY5 D60TAY D60TYA H60FYY H60F5Y H60FY5 H60FAY H60FYA H60BYY H60B5Y H60BY5 H60BAY H60BYA H60TYY H60T5Y H60TY5 H60TAY H60TYA
TYPICAL SPECIFICATIONS
Center Wavelength 1554nm
Min. Bandwidth@0.5dB 6nm
Configuration D Type (2-port), Y Type (3-port), X Type (4-port)
Signal Isolation >=30dB (Single Stage) >=45dB (Dual Stage) >=25dB (H Stage)
Insertion Loss <=1.2dB (Single Stage) <=1.4dB (Dual Stage) <=1.6dB (H Stage)
Wavelength Supression >=25dB
Return Loss >=45dB
PDL <=0.2dB
Fiber Type SMF-28 Fiber or 10/130um DC Fiber
12/130um DC Fiber or 20/130um DC Fiber
25/250um DC Fiber or 25/300um DC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W
Operating Temperature 0~70degreeC

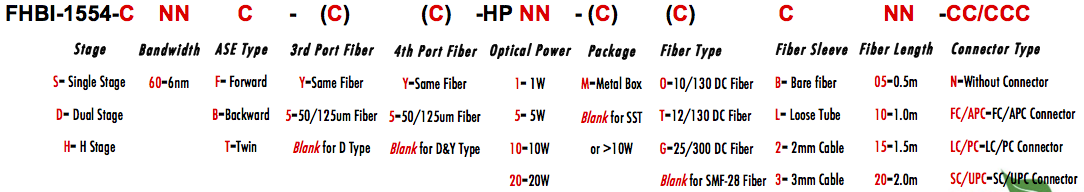

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
