1560nm Bandpass Filter/Isolator Hybrid (<10nm BW)

DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Isolator Hybrid is made by thin film coating and micro-optics package technology with fiber in and fiber out. It features flat-top spectrum, high Suppression Ratio and high Isolation. The Bandpass Filter/Isolator Hybrid will pass the signal light while block both the unwanted/ASE light and backward signal. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FHBI 1560nm Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 1nm 2nm 5nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type FHBI 1560nm Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 1nm 2nm 5nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type FHBI 1560nm Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 1nm 2nm 5nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type S10FYY S10F5Y S10FY5 S10FAY S10FYA S10BYY S10B5Y S10BY5 S10BAY S10BYA S10TYY S10T5Y S10TY5 S10TAY S10TYA D10FYY D10F5Y D10FY5 D10FAY D10FYA D10BYY D10B5Y D10BY5 D10BAY D10BYA D10TYY D10T5Y D10TY5 D10TAY D10TYA S20FYY S20F5Y S20FY5 S20FAY S20FYA S20BYY S20B5Y S20BY5 S20BAY S20BYA S20TYY S20T5Y S20TY5 S20TAY S20TYA D20FYY D20F5Y D20FY5 D20FAY D20FYA D20BYY D20B5Y D20BY5 D20BAY D20BYA D20TYY D20T5Y D20TY5 D20TAY D20TYA S50FYY S50F5Y S50FY5 S50FAY S50FYA S50BYY S50B5Y S50BY5 S50BAY S50BYA S50TYY S50T5Y S50TY5 S50TAY S50TYA D50FYY D50F5Y D50FY5 D50FAY D50FYA D50BYY D50B5Y D50BY5 D50BAY D50BYA D50TYY D50T5Y D50TY5 D50TAY D50TYA
TYPICAL SPECIFICATIONS
Center Wavelength 1560nm
Min. Bandwidth@0.5dB 1nm 2nm 5nm
Configuration D Type (2-port), Y Type (3-port), X Type (4-port)
Signal Isolation >=25dB (Single Stage) >=40dB (Dual Stage)
Insertion Loss <=1.3dB (Single Stage) <=1.5dB (Dual Stage)
Wavelength Supression >=25dB
Return Loss >=45dB
PDL <=0.2dB
Fiber Type SMF-28 Fiber or 10/130um DC Fiber
12/130um DC Fiber or 20/130um DC Fiber
25/250um DC Fiber or 25/300um DC Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~70degreeC

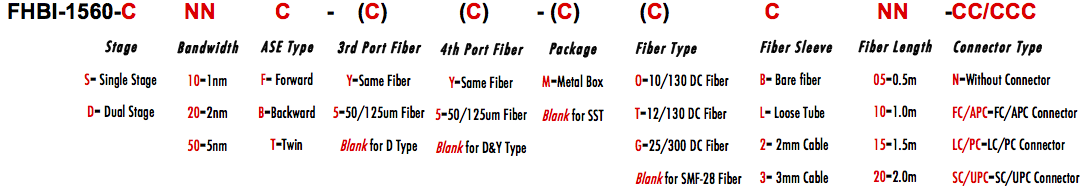

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
