1560nm PM BP/Isolator Hybrid for Pulse Power (>=10nm BW)

DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Isolator Hybrid is made by thin film coating and micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features flat-top spectrum, high Suppression Ratio, high Extinction Ratio and high Isolation. The Bandpass Filter/Isolator Hybrid will pass the signal light while block both the unwanted/ASE light and backward signal. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Y Type or X type is strongly recommended to guide out high power ASE/unwanted light out. Customer can select only slow axis working or both axis working option. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FHBP 1560nm PM Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 10nm 15nm 20nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FHBP 1560nm PM Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 10nm 15nm 20nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FHBP 1560nm PM Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 10nm 15nm 20nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP S100FSYY S100FS5Y S100FSY5 S100FSAY S100FSYA S100BSYY S100BS5Y S100BSY5 S100BSAY S100BSYA S100TSYY S100TS5Y S100TSY5 S100TSAY S100TSYA D100FSYY D100FS5Y D100FSY5 D100FSAY D100FSYA D100BSYY D100BS5Y D100BSY5 D100BSAY D100BSYA D100TSYY D100TS5Y D100TSY5 D100TSAY D100TSYA S100FFYY S100FF5Y S100FFY5 S100FFAY S100FFYA S100BFYY S100BF5Y S100BFY5 S100BFAY S100BFYA S100TFYY S100TF5Y S100TFY5 S100TFAY S100TFYA D100FFYY D100FF5Y D100FFY5 D100FFAY D100FFYA D100BFYY D100BF5Y D100BFY5 D100BFAY D100BFYA D100TFYY D100TF5Y D100TFY5 D100TFAY D100TFYA H100FFYY H100FF5Y H100FFY5 H100FFAY H100FFYA H100BFYY H100BF5Y H100BFY5 H100BFAY H100BFYA H100TFYY H100TF5Y H100TFY5 H100TFAY H100TFYA H100FSYY H100FS5Y H100FSY5 H100FSAY H100FSYA H100BSYY H100BS5Y H100BSY5 H100BSAY H100BSYA H100TSYY H100TS5Y H100TSY5 H100TSAY H100TSYA S150FSYY S150FS5Y S150FSY5 S150FSAY S150FSYA S150BSYY S150BS5Y S150BSY5 S150BSAY S150BSYA S150TSYY S150TS5Y S150TSY5 S150TSAY S150TSYA D150FSYY D150FS5Y D150FSY5 D150FSAY D150FSYA D150BSYY D150BS5Y D150BSY5 D150BSAY D150BSYA D150TSYY D150TS5Y D150TSY5 D150TSAY D150TSYA S150FFYY S150FF5Y S150FFY5 S150FFAY S150FFYA S150BFYY S150BF5Y S150BFY5 S150BFAY S150BFYA S150TFYY S150TF5Y S150TFY5 S150TFAY S150TFYA D150FFYY D150FF5Y D150FFY5 D150FFAY D150FFYA D150BFYY D150BF5Y D150BFY5 D150BFAY D150BFYA D150TFYY D150TF5Y D150TFY5 D150TFAY D150TFYA H150FFYY H150FF5Y H150FFY5 H150FFAY H150FFYA H150BFYY H150BF5Y H150BFY5 H150BFAY H150BFYA H150TFYY H150TF5Y H150TFY5 H150TFAY H150TFYA H150FSYY H150FS5Y H150FSY5 H150FSAY H150FSYA H150BSYY H150BS5Y H150BSY5 H150BSAY H150BSYA H150TSYY H150TS5Y H150TSY5 H150TSAY H150TSYA S200FSYY S200FS5Y S200FSY5 S200FSAY S200FSYA S200BSYY S200BS5Y S200BSY5 S200BSAY S200BSYA S200TSYY S200TS5Y S200TSY5 S200TSAY S200TSYA D200FSYY D200FS5Y D200FSY5 D200FSAY D200FSYA D200BSYY D200BS5Y D200BSY5 D200BSAY D200BSYA D200TSYY D200TS5Y D200TSY5 D200TSAY D200TSYA S200FFYY S200FF5Y S200FFY5 S200FFAY S200FFYA S200BFYY S200BF5Y S200BFY5 S200BFAY S200BFYA S200TFYY S200TF5Y S200TFY5 S200TFAY S200TFYA D200FFYY D200FF5Y D200FFY5 D200FFAY D200FFYA D200BFYY D200BF5Y D200BFY5 D200BFAY D200BFYA D200TFYY D200TF5Y D200TFY5 D200TFAY D200TFYA H200FFYY H200FF5Y H200FFY5 H200FFAY H200FFYA H200BFYY H200BF5Y H200BFY5 H200BFAY H200BFYA H200TFYY H200TF5Y H200TFY5 H200TFAY H200TFYA H200FSYY H200FS5Y H200FSY5 H200FSAY H200FSYA H200BSYY H200BS5Y H200BSY5 H200BSAY H200BSYA H200TSYY H200TS5Y H200TSY5 H200TSAY H200TSYA
TYPICAL SPECIFICATIONS
Center Wavelength 1560nm
Min. Bandwidth@0.5dB 10nm 15nm 20nm
Configuration D Type (2-port), Y Type (3-port), X Type (4-port)
Signal Isolation >=25dB (Single Stage) >=40dB (Dual Stage) >=20dB (H Stage)
Insertion Loss <=1.3dB (Single Stage) <=1.5dB (Dual Stage) <=1.8dB (H Stage)
Wavelength Supression >=25dB
Return Loss >=45dB
Extinction Ratio >=18dB
Fiber Type PM1550 Fiber or 10/130um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~70degreeC

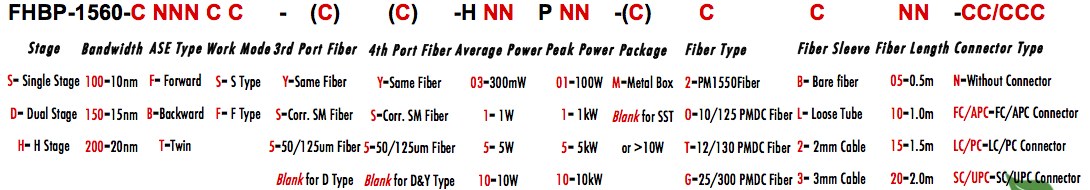

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
