1570nm High Power PM Bandpass Filter/Isolator Hybrid
DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Isolator Hybrid is made by thin film coating and micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features flat-top spectrum, high Suppression Ratio, high Extinction Ratio and high Isolation. The Bandpass Filter/Isolator Hybrid will pass the signal light while block both the unwanted/ASE light and backward signal. The high power version can withstand up to 20W CW Power while maintaining high performance and stability. Y Type or X type is strongly recommended to guide out high power ASE/unwanted light out. Customer can select only slow axis working or both axis working option. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FHBP 1570nm PM Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 4nm 9nm 15nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave FHBP 1570nm PM Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 4nm 9nm 15nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave FHBP 1570nm PM Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 4nm 9nm 15nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave S40FSYY S40FS5Y S40FSY5 S40FSAY S40FSYA S40BSYY S40BS5Y S40BSY5 S40BSAY S40BSYA S40TSYY S40TS5Y S40TSY5 S40TSAY S40TSYA D40FSYY D40FS5Y D40FSY5 D40FSAY D40FSYA D40BSYY D40BS5Y D40BSY5 D40BSAY D40BSYA D40TSYY D40TS5Y D40TSY5 D40TSAY D40TSYA S40FFYY S40FF5Y S40FFY5 S40FFAY S40FFYA S40BFYY S40BF5Y S40BFY5 S40BFAY S40BFYA S40TFYY S40TF5Y S40TFY5 S40TFAY S40TFYA D40FFYY D40FF5Y D40FFY5 D40FFAY D40FFYA D40BFYY D40BF5Y D40BFY5 D40BFAY D40BFYA D40TFYY D40TF5Y D40TFY5 D40TFAY D40TFYA H40FFYY H40FF5Y H40FFY5 H40FFAY H40FFYA H40BFYY H40BF5Y H40BFY5 H40BFAY H40BFYA H40TFYY H40TF5Y H40TFY5 H40TFAY H40TFYA H40FSYY H40FS5Y H40FSY5 H40FSAY H40FSYA H40BSYY H40BS5Y H40BSY5 H40BSAY H40BSYA H40TSYY H40TS5Y H40TSY5 H40TSAY H40TSYA S90FSYY S90FS5Y S90FSY5 S90FSAY S90FSYA S90BSYY S90BS5Y S90BSY5 S90BSAY S90BSYA S90TSYY S90TS5Y S90TSY5 S90TSAY S90TSYA D90FSYY D90FS5Y D90FSY5 D90FSAY D90FSYA D90BSYY D90BS5Y D90BSY5 D90BSAY D90BSYA D90TSYY D90TS5Y D90TSY5 D90TSAY D90TSYA S90FFYY S90FF5Y S90FFY5 S90FFAY S90FFYA S90BFYY S90BF5Y S90BFY5 S90BFAY S90BFYA S90TFYY S90TF5Y S90TFY5 S90TFAY S90TFYA D90FFYY D90FF5Y D90FFY5 D90FFAY D90FFYA D90BFYY D90BF5Y D90BFY5 D90BFAY D90BFYA D90TFYY D90TF5Y D90TFY5 D90TFAY D90TFYA H90FFYY H90FF5Y H90FFY5 H90FFAY H90FFYA H90BFYY H90BF5Y H90BFY5 H90BFAY H90BFYA H90TFYY H90TF5Y H90TFY5 H90TFAY H90TFYA H90FSYY H90FS5Y H90FSY5 H90FSAY H90FSYA H90BSYY H90BS5Y H90BSY5 H90BSAY H90BSYA H90TSYY H90TS5Y H90TSY5 H90TSAY H90TSYA S150FSYY S150FS5Y S150FSY5 S150FSAY S150FSYA S150BSYY S150BS5Y S150BSY5 S150BSAY S150BSYA S150TSYY S150TS5Y S150TSY5 S150TSAY S150TSYA D150FSYY D150FS5Y D150FSY5 D150FSAY D150FSYA D150BSYY D150BS5Y D150BSY5 D150BSAY D150BSYA D150TSYY D150TS5Y D150TSY5 D150TSAY D150TSYA S150FFYY S150FF5Y S150FFY5 S150FFAY S150FFYA S150BFYY S150BF5Y S150BFY5 S150BFAY S150BFYA S150TFYY S150TF5Y S150TFY5 S150TFAY S150TFYA D150FFYY D150FF5Y D150FFY5 D150FFAY D150FFYA D150BFYY D150BF5Y D150BFY5 D150BFAY D150BFYA D150TFYY D150TF5Y D150TFY5 D150TFAY D150TFYA H150FFYY H150FF5Y H150FFY5 H150FFAY H150FFYA H150BFYY H150BF5Y H150BFY5 H150BFAY H150BFYA H150TFYY H150TF5Y H150TFY5 H150TFAY H150TFYA H150FSYY H150FS5Y H150FSY5 H150FSAY H150FSYA H150BSYY H150BS5Y H150BSY5 H150BSAY H150BSYA H150TSYY H150TS5Y H150TSY5 H150TSAY H150TSYA
TYPICAL SPECIFICATIONS
Center Wavelength 1570nm
Min. Bandwidth@0.5dB 4nm 9nm 15nm
Configuration D Type (2-port), Y Type (3-port), X Type (4-port)
Signal Isolation >=25dB (Single Stage) >=40dB (Dual Stage) >=20dB (H Stage)
Insertion Loss <=1.3dB (Single Stage) <=1.5dB (Dual Stage) <=1.8dB (H Stage)
Wavelength Supression >=25dB
Return Loss >=45dB
Extinction Ratio >=18dB
Fiber Type PM1550 Fiber or 10/130um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W
Operating Temperature 0~70degreeC

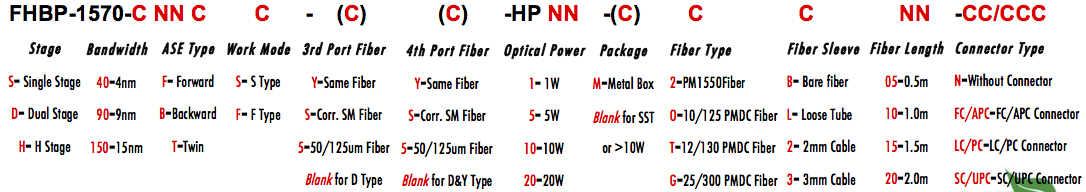

ORDERING INFORMATION/PART NUMBER(PN)
