2040nm High Power Bandpass Filter/Isolator Hybrid
DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Isolator Hybrid is made by thin film coating and micro-optics package technology with fiber in and fiber out. It features flat-top spectrum, high Suppression Ratio and high Isolation. The Bandpass Filter/Isolator Hybrid will pass the signal light while block both the unwanted/ASE light and backward signal. The high power version can withstand up to 10W CW Power while maintaining high performance and stability. Y Type or X type is strongly recommended to guide out high power ASE/unwanted light out. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FHBI 2040nm Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 10nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W Watt Watts HP CW Continuous Wave FHBI 2040nm Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 10nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W Watt Watts HP CW Continuous Wave FHBI 2040nm Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 10nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W Watt Watts HP CW Continuous Wave S100FYY S100F5Y S100FY5 S100FAY S100FYA S100BYY S100B5Y S100BY5 S100BAY S100BYA S100TYY S100T5Y S100TY5 S100TAY S100TYA D100FYY D100F5Y D100FY5 D100FAY D100FYA D100BYY D100B5Y D100BY5 D100BAY D100BYA D100TYY D100T5Y D100TY5 D100TAY D100TYA H100FYY H100F5Y H100FY5 H100FAY H100FYA H100BYY H100B5Y H100BY5 H100BAY H100BYA H100TYY H100T5Y H100TY5 H100TAY H100TYA
TYPICAL SPECIFICATIONS
Center Wavelength 2040nm
Min. Bandwidth@0.5dB 10nm
Configuration D Type (2-port), Y Type (3-port), X Type (4-port)
Signal Isolation >=16dB (Single Stage) >=30dB (Dual Stage) >=25dB (H Stage)
Insertion Loss <=1.6dB (Single Stage) <=1.9dB (Dual Stage) <=1.9dB (H Stage)
Wavelength Suppression >=25dB
Return Loss >=45dB
PDL <=0.2dB
Fiber Type SMF-28 Fiber or SM1950 Fiber
10/130um DC Fiber or 25/250um DC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W
Operating Temperature 0~50degreeC

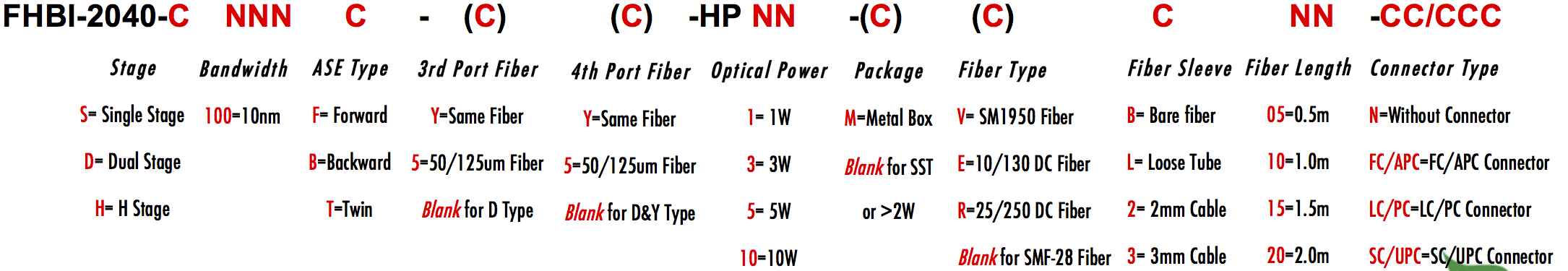

ORDERING INFORMATION/PART NUMBER(PN)
