1540nm PM Bandpass Filter/Tap Hybrid for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Tap Hybrid is made by thin film coating and micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features flat-top spectrum, high Suppression Ratio, high Extinction Ratio and various Split Ratio. The Bandpass Filter/Tap Hybrid will pass the signal light while block the unwanted/ASE light, at the same time tap a certain ratio of signal light and output. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. X type is strongly recommended to guide out high power ASE/unwanted light out. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FPHB 1540nm PM Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 2nm 4nm 5nm 7nm 10nm 15nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPHB 1540nm PM Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 2nm 4nm 5nm 7nm 10nm 15nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPHB 1540nm PM Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 2nm 4nm 5nm 7nm 10nm 15nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 20001F 20001X 2001F 2001X 2002F 2002X 2003F 2003X 2004F 2004X 20055 2005X 2010F 2010X 2015F 2015X 2020F 2020X 20255 2025X 2030F 2030X 2035F 2035X 2040F 2040X 20455 2045X 2050F 2050X 2055F 2055X 2060F 2060X 20655 2065X 2070F 2070X 2075F 2075X 2080F 2080X 20855 2085X 2090F 2090X 2095F 2095X 2096F 2096X 20975 2097X 2098F 2098X 2099F 2099X 40001F 40001X 4001F 4001X 4002F 4002X 4003F 4003X 4004F 4004X 40055 4005X 4010F 4010X 4015F 4015X 4020F 4020X 40255 4025X 4030F 4030X 4035F 4035X 4040F 4040X 40455 4045X 4050F 4050X 4055F 4055X 4060F 4060X 40655 4065X 4070F 4070X 4075F 4075X 4080F 4080X 40855 4085X 4090F 4090X 4095F 4095X 4096F 4096X 40975 4097X 4098F 4098X 4099F 4099X 50001F 50001X 5001F 5001X 5002F 5002X 5003F 5003X 5004F 5004X 50055 5005X 5010F 5010X 5015F 5015X 5020F 5020X 50255 5025X 5030F 5030X 5035F 5035X 5040F 5040X 50455 5045X 5050F 5050X 5055F 5055X 5060F 5060X 50655 5065X 5070F 5070X 5075F 5075X 5080F 5080X 50855 5085X 5090F 5090X 5095F 5095X 5096F 5096X 50975 5097X 5098F 5098X 5099F 5099X 70001F 70001X 7001F 7001X 7002F 7002X 7003F 7003X 7004F 7004X 70055 7005X 7010F 7010X 7015F 7015X 7020F 7020X 70255 7025X 7030F 7030X 7035F 7035X 7040F 7040X 70455 7045X 7050F 7050X 7055F 7055X 7060F 7060X 70655 7065X 7070F 7070X 7075F 7075X 7080F 7080X 70855 7085X 7090F 7090X 7095F 7095X 7096F 7096X 70975 7097X 7098F 7098X 7099F 7099X 100001F 100001X 10001F 10001X 10002F 10002X 10003F 10003X 10004F 10004X 100055 10005X 10010F 10010X 10015F 10015X 10020F 10020X 100255 10025X 10030F 10030X 10035F 10035X 10040F 10040X 100455 10045X 10050F 10050X 10055F 10055X 10060F 10060X 100655 10065X 10070F 10070X 10075F 10075X 10080F 10080X 100855 10085X 10090F 10090X 10095F 10095X 10096F 10096X 100975 10097X 10098F 10098X 10099F 10099X 150001F 150001X 15001F 15001X 15002F 15002X 15003F 15003X 15004F 15004X 150055 15005X 15010F 15010X 15015F 15015X 15020F 15020X 150255 15025X 15030F 15030X 15035F 15035X 15040F 15040X 150455 15045X 15050F 15050X 15055F 15055X 15060F 15060X 150655 15065X 15070F 15070X 15075F 15075X 15080F 15080X 150855 15085X 15090F 15090X 15095F 15095X 15096F 15096X 150975 15097X 15098F 15098X 15099F 15099X YY YS Y5 YA SY SS S5 SA 5Y 5S 55 5A AY AS A5 AA
TYPICAL SPECIFICATIONS
Center Wavelength 1540nm
Min. Bandwidth@0.5dB 2nm, 4nm, 5nm, 7nm, 10nm, 15nm
Tap Ratio 1+/-0.6%, 2+/-0.8%, 5+/-1.0%, 10%, 20%, 30%, 40%, 50%
Excess Loss <=1.6dB
Wavelength Suppression >=25dB
Return Loss >=50dB
Extinction Ratio >=18dB
Fiber Type PM1550 Fiber or 10/130um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

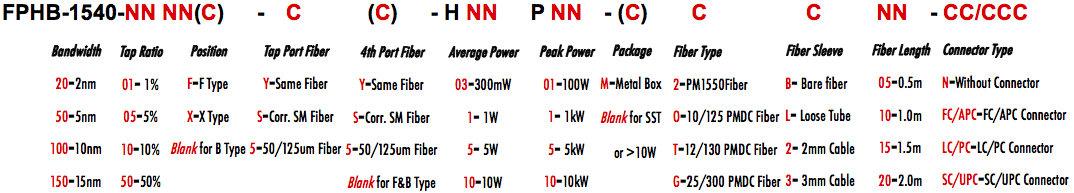

ORDERING INFORMATION/PART NUMBER(PN)
